ABB EasyLine EL3040 - Gas connections ZO23

10/24-4.10 EN Rev. 9 EasyLine EL3000 Series Data Sheet 23
Gas connections ZO23

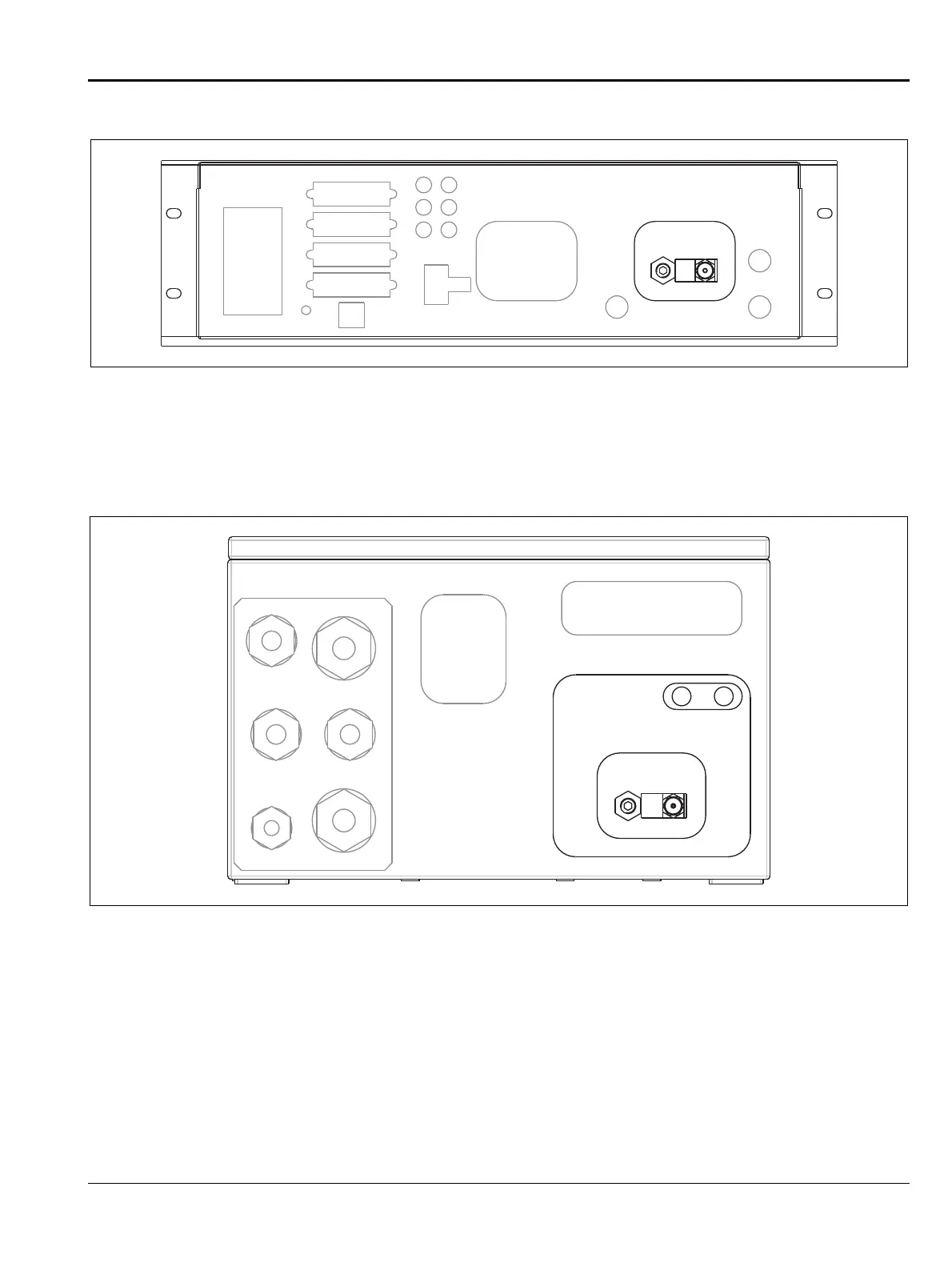

Model EL3020
21
1 Sample gas inlet
2 Sample gas outlet
Design: 1/8 NPT female thread (stainless steel 1.4305 / SAE 303) for threaded connections (not supplied),
sample gas inlet 3 mm Swagelok
®
(stainless steel 1.4401/ SAE 316)
Model EL3040
12
11 12
1 Sample gas inlet
2 Sample gas outlet
11 Purge gas inlet housing
12 Purge gas outlet housing
Design: 1/8 NPT female thread (stainless steel 1.4305 / SAE 303) for threaded connections (not supplied),
sample gas inlet 3 mm Swagelok
®
(stainless steel 1.4401/ SAE 316)
