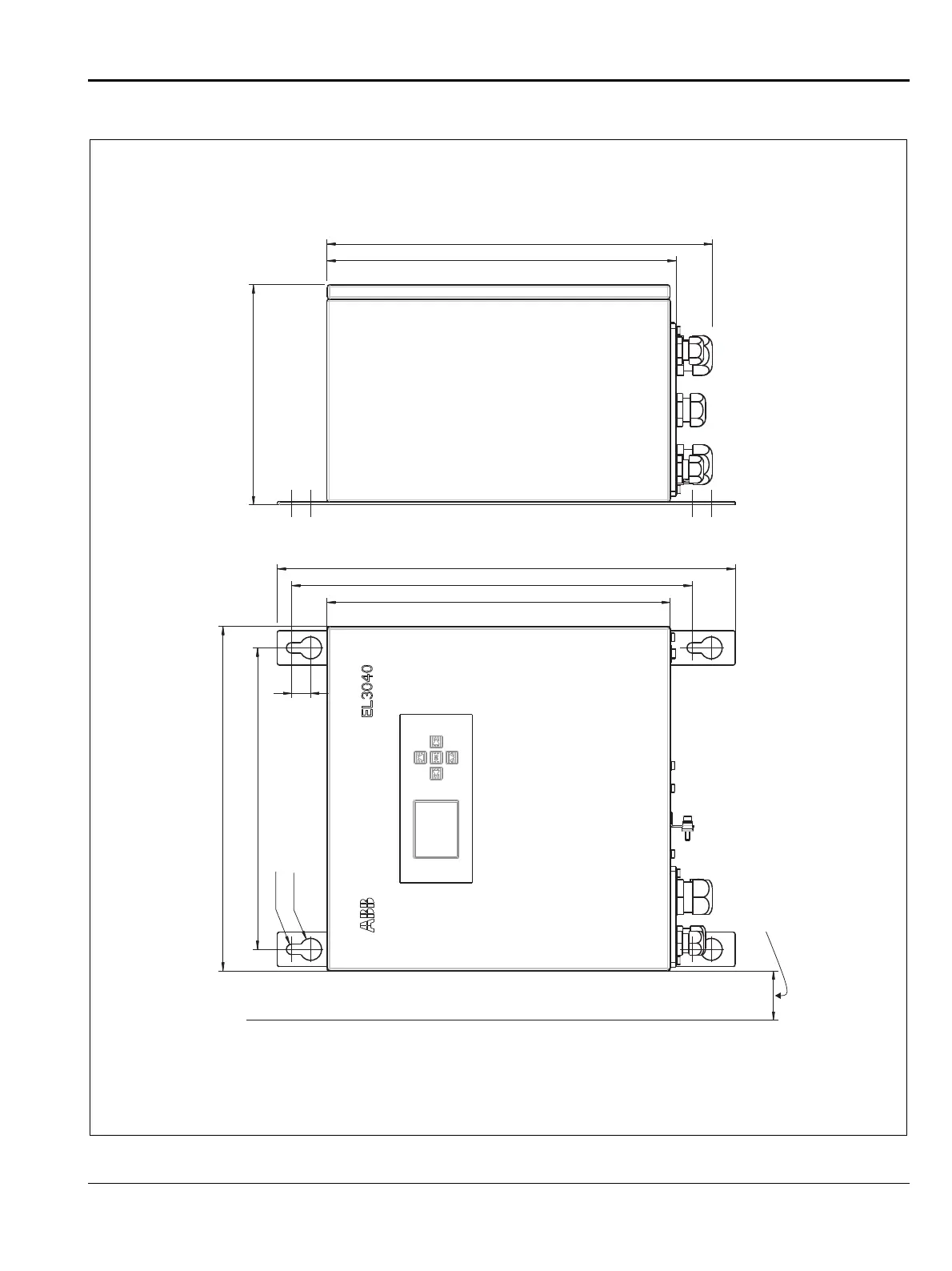

Dimensional drawings
Wall-mount housing (model EL3040)
366
420
360
480
Ø
Ø
20
404
360
315
11
23
³ 60
230
Clearance required to allow
the door to swing open
Dimensions in mm
