98 EasyLine EL3000 Series Commissioning Instructions

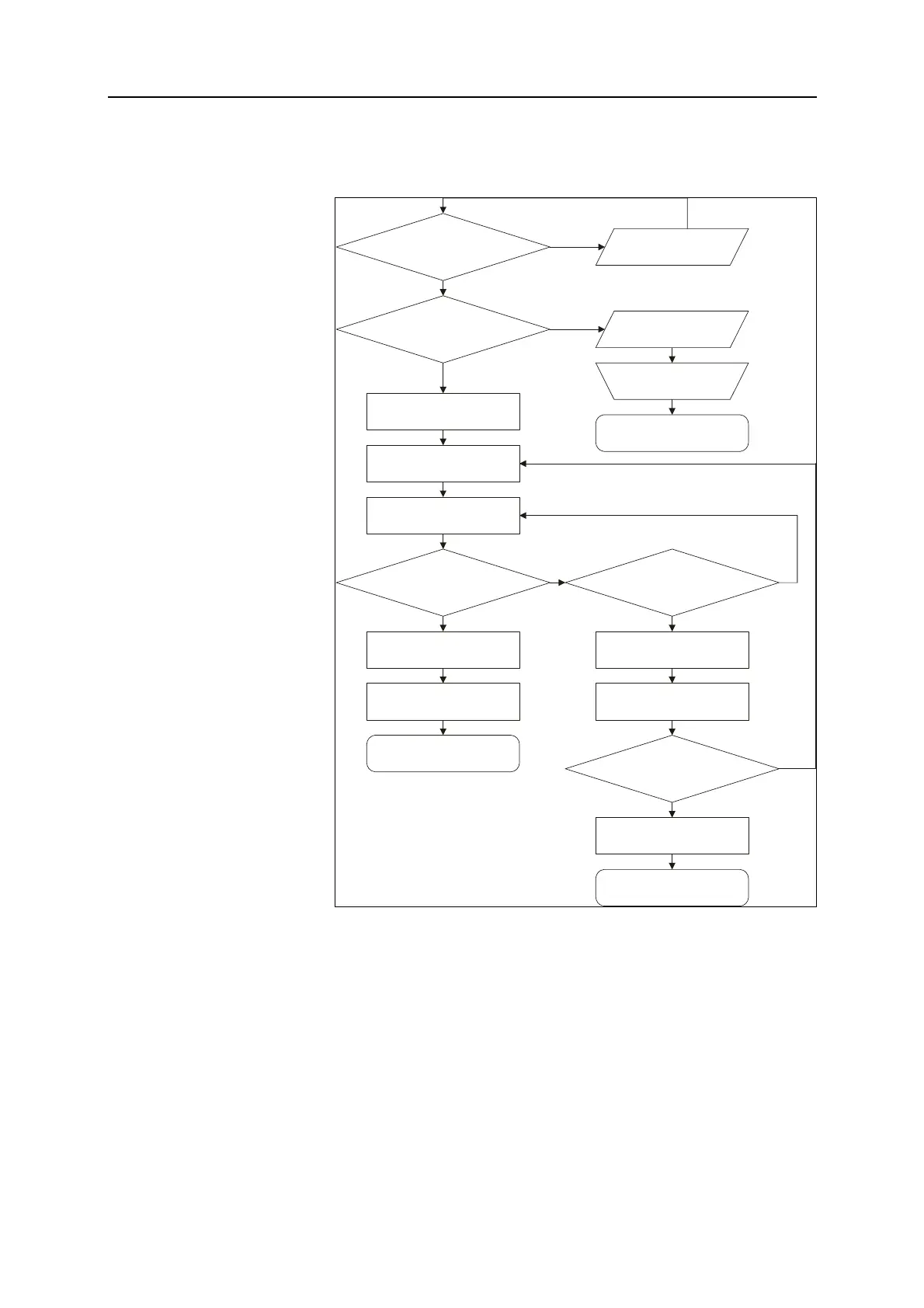

Ignition of the flame
12 The flame ignites automatically:
Fidas24 goes to standby mode
and is ready for restart
Pof
to set-point?
ressure values
operating gases adjustable
Glow plug
switched off
Number of ignition attempts
raised one step
Glow plug
switched off
Pressure values of operating
gases adjusted to set-point
Combustion gas pressure
raised one step
Fidas24 goes to standby mode
and is ready for restart
Glow plug
switched on
Status message:
Pressure error
Status message:
Operating temperature
Combustion air pressure
set to start value
Check pressure values
of operating gases
Combustion air pressure
raised one step
Flame on? (Flame temp.
> detector temp. + 30 °C)
Combustion air
ramp height reached?
Number of ignition
attempts > 10?
Fidas24 is ready to measure
after warm-up phase
Temperature
of detector and sample gas
connection > 150 °C?
yes
yes
yes yes
yes
no
no
no no
no
Depending on the number of ignition attempts, the flame can take up
to 10 minutes to ignite.
Depending on the length of the combustible gas supply line, it is
possible that not enough combustible gas is available to ignite the
flame at first during the initial start-up of the gas analyzer. In this
case, the ignition of the flame must be restarted in the Fidas
Restart menu (see page 115). The temperature of the flame is also
displ
ayed in this menu option; the flame is regarded as "on" when the
flame temperature is at least 30 °C higher than the detector
temperature.
The actual start-up of the gas analyzer is concluded with the ignition
of the flame.
