ABB Eden - Safety; Harmonized standards; Intended use; Dimensions

2TLJ172066M0201, rev. F 15 www.abb.com/jokabsafety
2015-02-09
Safety / Harmonized standards
Conformity
European Machinery Directive 2006/42/EC
EN ISO 12100-1:2010, EN 954-1:1996, EN ISO 13849-1:2008, EN 62061:2005,
EN 62061:2005, EN 61508:2010, EN 60204-1:2006+A1:2009, EN 60664-1:2007,
EN 61000-6-2:2005, EN 61000-6-4:2007, EN 60947-5-1:2004, EN 1088+A2:2008
IEC/EN 61508-1…7
SIL3, PFH
d
: 4.50*10
-9
EN 62061
SIL3
EN ISO 13849-1
Performance level: Pl e, category 4
Certificates
TÜV Nord
The Jokab Safety branded product with article number beginning with 2TLJ is fully compatible with the ABB branded product with article number
beginning with 2TLA.
Intended use
NB! These restrictions are only according to certification for CSA (Canada/USA).
 Pollution degree, 2
 Installation category N/A
 Altitude, 2000 m (max)
 Humidity, 80 % max for temperatures up to 31 °C and 35-85 % without condensation
 Electrical supply < 2 W, 24 VDC
 Indoor use statement
 Temperature, -10 to 55 °C.

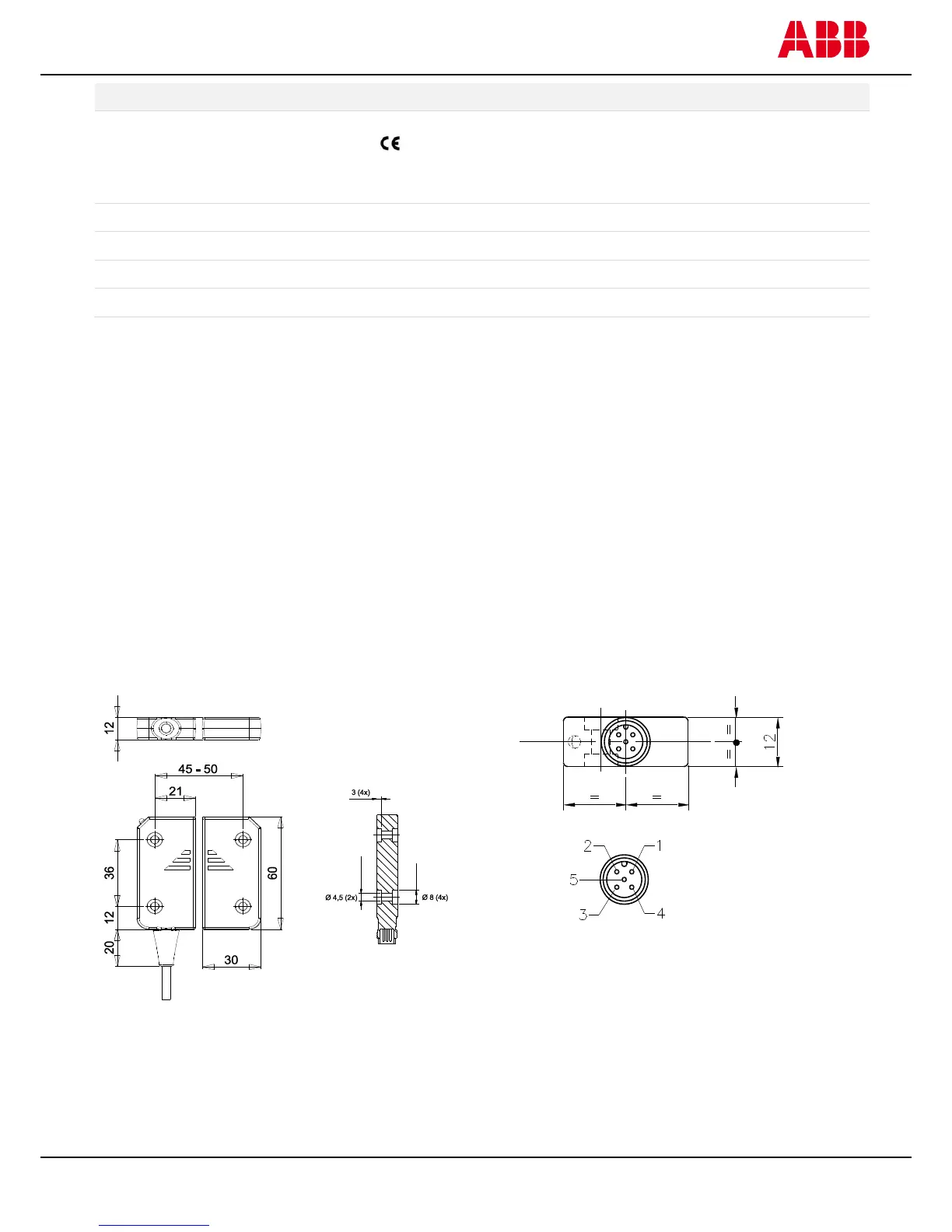

Dimensions
Eden dimensions
Eden M12, contact
seen from outside.
Please note!
This model of Eden is obsolete and has been replaced by Eden DYN
