4 Installation and maintenance

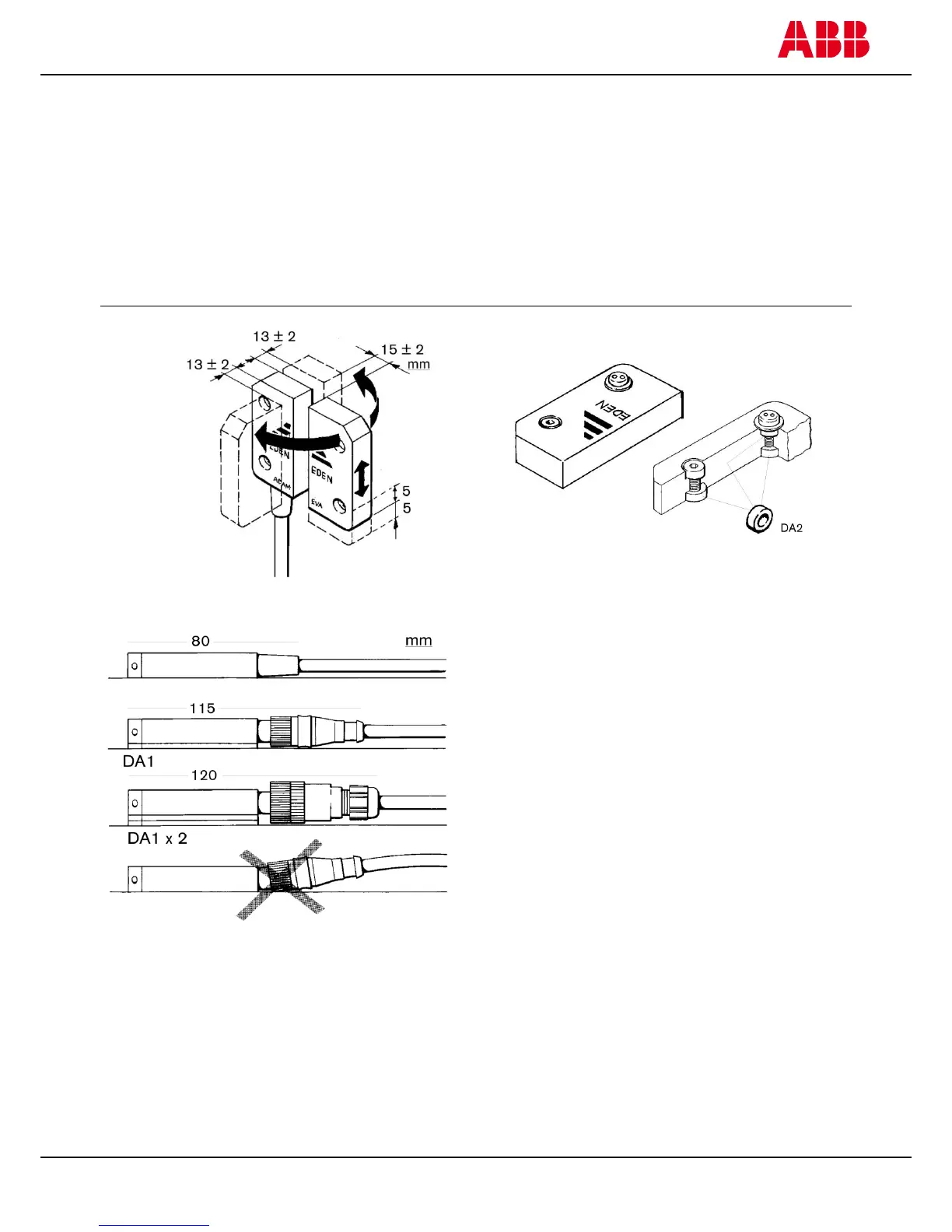

Eva can be turned in a number of different ways relative Adam, see details in the figure below. Depending on the
cable connector used to connect to Eden, different distance plates can be necessary in order to avoid damage to
Adam. The protection plates (DA1) supplied with Adam M12-models are recommended for this, see figure below.
Also, the mounting spacers supplied must be used in order to physically protect Eden from damage.
Use two M4-screws to fasten each sensor. Safety screw SM4x20 (Eden) and SM4x25 (Eden E) are recommended.
Use max tightening torque 2 Nm. Lock screw using Loctite or similar to prevent easy dismounting if necessary
(refer to risk assessment).
Eden installation
Maximum sensing distance between Adam and Eva: Eden: 15 mm +/- 2 mm
Eden E: 12 mm +/- 2 mm
Minimum distance between two Eden pairs: 50 mm
The DA2 mounting spacer must be used in order to
physically protect Eden from damage.
Mounting
tolerances
Mounting Adam with integral cable.
Mounting with one protection plate (DA1) for Adam M12 using
prewired moulded M12 connector
Mounting with two protection plates (DA1) for Adam M12 using M12
connector with glanded cable.
Incorrect mounting without protection plate may cause permanent
damage to sensor.
Please note!
This model of Eden is obsolete and has been replaced by Eden DYN
