ABB Eden - Connection Examples

2TLJ172066M0201, rev. F 7 www.abb.com/jokabsafety
2015-02-09
Connection examples

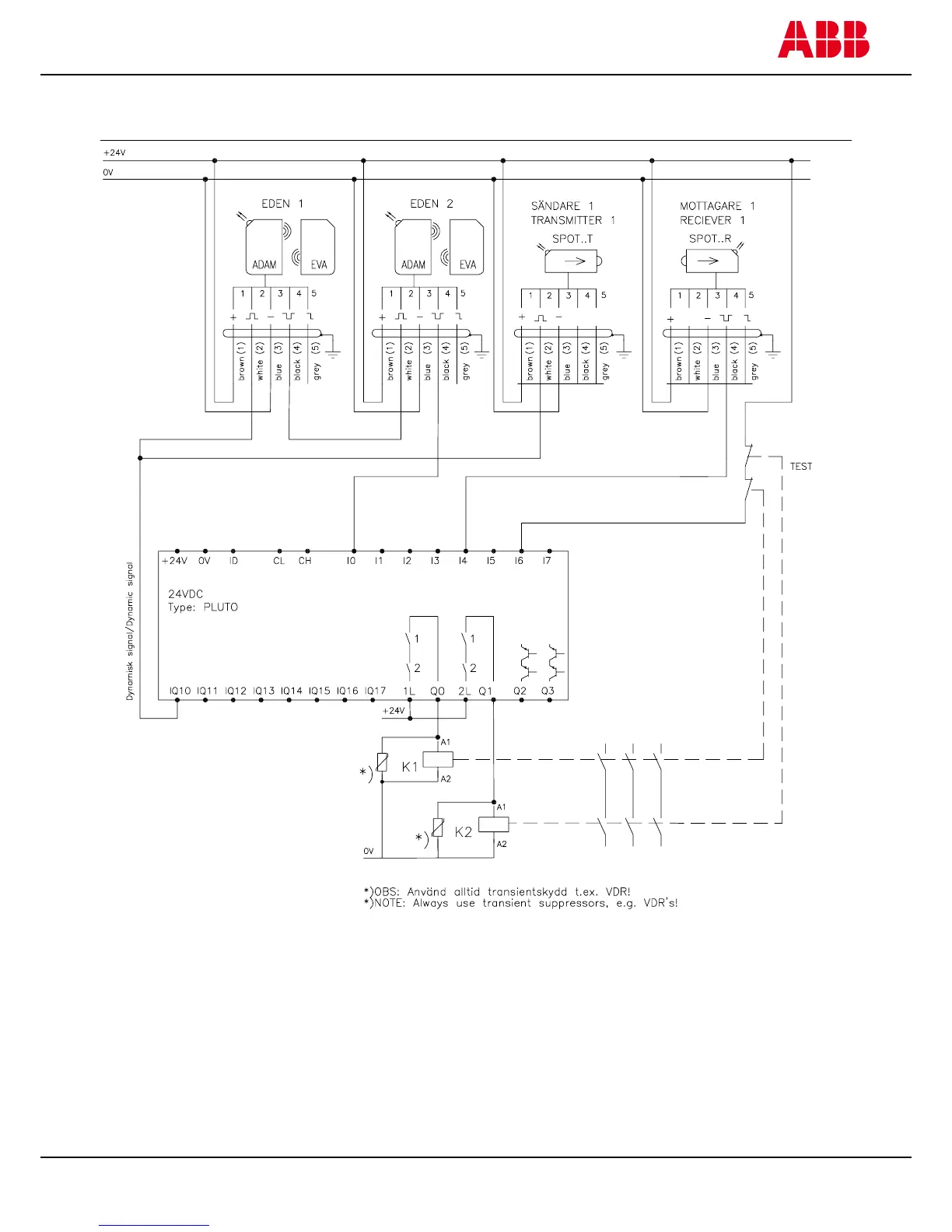

Connection example: Two Eden and one Spot T/R connected to Pluto safety-PLC
Caution! All cable colours according to ABB Jokab Safety standard cables.
ABB
Please note!
This model of Eden is obsolete and has been replaced by Eden DYN
