3 Connections

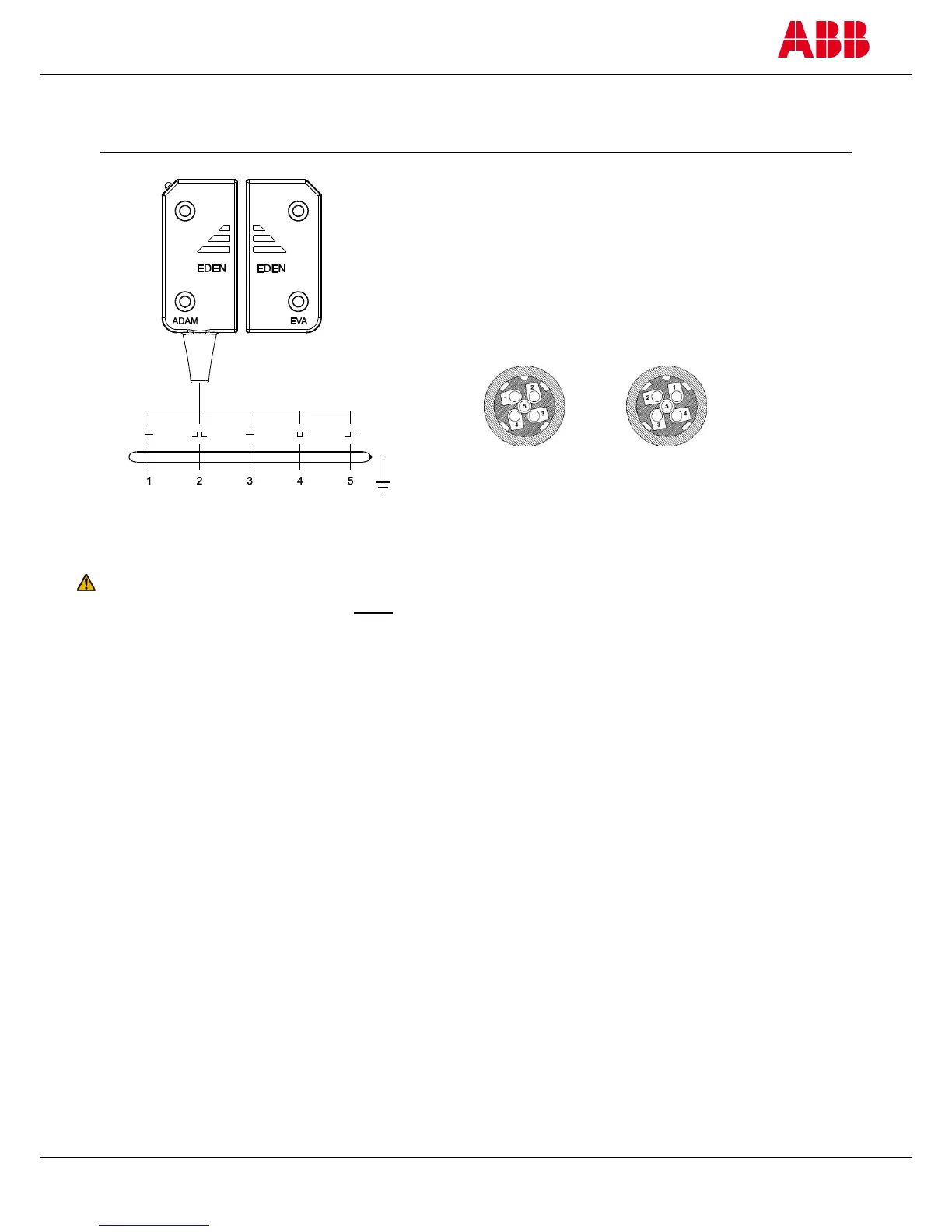

Eden electrical connections
NB: Shielded cable is recommended between this unit and the rest of the safety circuit.
Caution! All cable colours according to ABB Jokab Safety standard cables.
Warning! Eden is equipped with an information output able to indicate the status of the sensor. The information
channel output is non-safe and should never be used for the safety function. The only signals intended for safety
functions are the safe dynamic signals.
M12 5-pole male seen
from cable side
M12 5-pole female
seen from cable side
M12-connector:
(5-pole male)
1 ) Brown: +24 VDC
2 ) White: Dynamic signal input
3 ) Blue: 0 VDC
4 ) Black: Dynamic signal output
5 ) Grey: Information output
Please note!
This model of Eden is obsolete and has been replaced by Eden DYN
