ABB Emax 2 IEC 60947 User Manual

(25)
-Make a hole in the switchboard door to suit the new circuit-breaker.
-Check the positions of the axes.
38
For Emax2.2 3P
For Emax2.2 4P
MOUNTING LOCATION
MOUNTING LOCATION

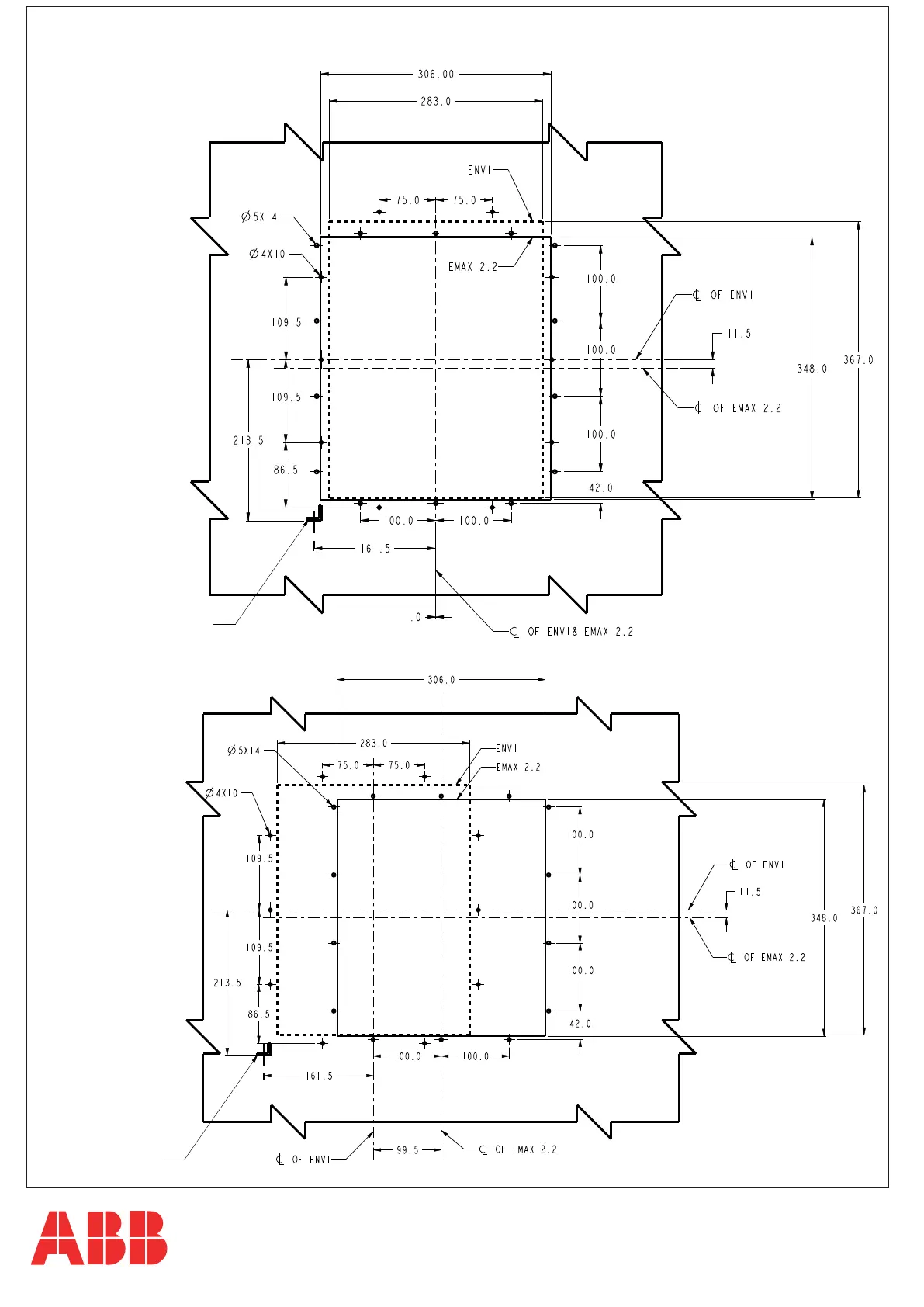

ENTELLIGUARD G VS EMAX 2 Door Cut out Details

ABB Emax 2 IEC 60947 Specifications

General

Standard	IEC 60947
Breaking capacity	Up to 150 kA
Rated service short-circuit breaking capacity	Up to 150 kA
Number of poles	3, 4
Rated operational voltage	690V AC
Rated insulation voltage	1000 V
Type	Air circuit breaker
Trip unit	Electronic
