TERMINALE SUPERIORE
UPPER TERMINAL
OBERE ANSCHLUSS
BORNE SUPÉRIEURE
TERMINALES SUPERIOR
4
8.5Nm(6.3 lb ft)
5B
TERMINALE INFERIORE
LOWER TERMINAL
UNTERE ANSCHLUSS
BORNE INFÉRIEUR
TERMINALES INFERIOR

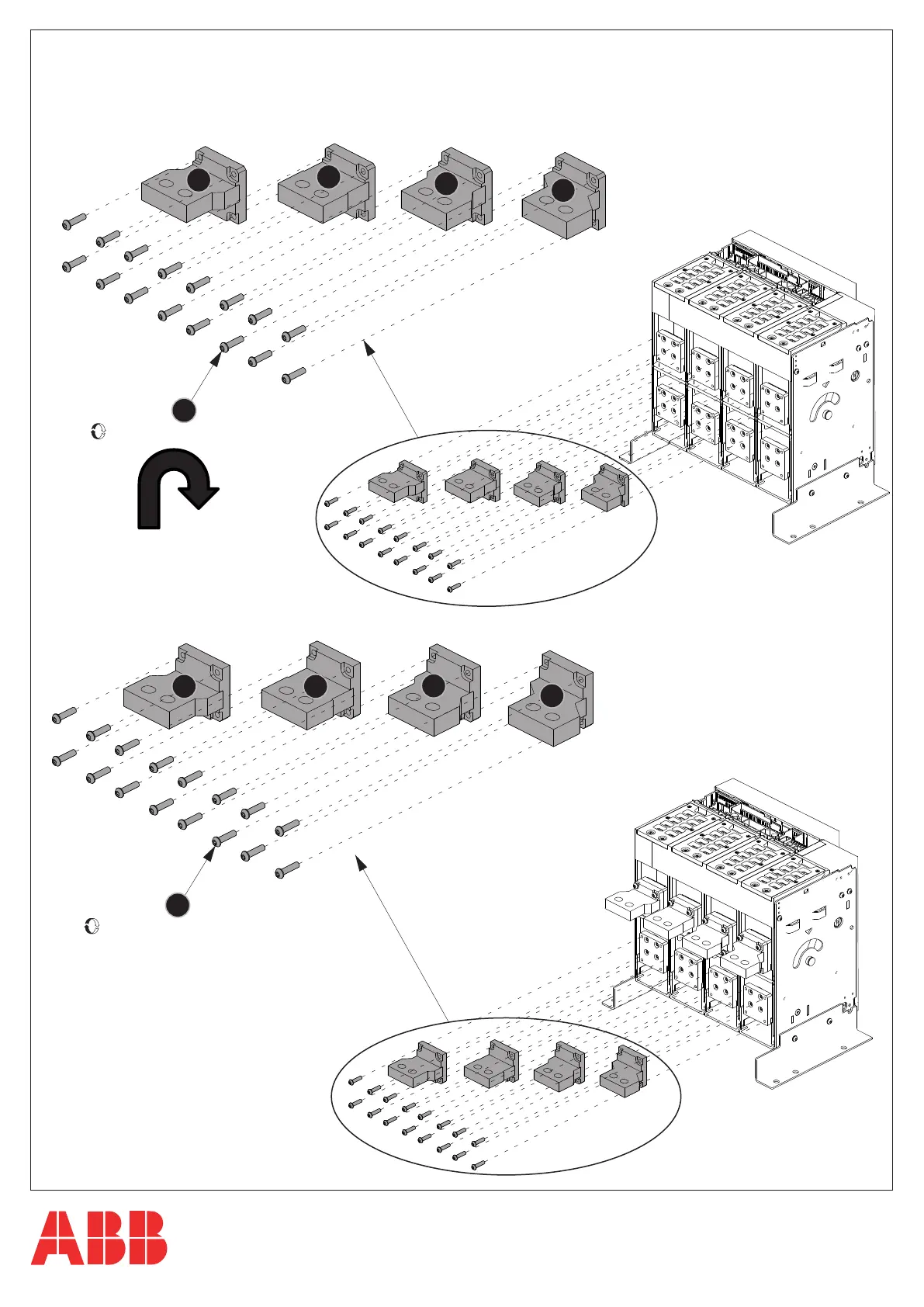

ROTATE THE UPPER TERMINAL BY 180°
AND ASSEMBLE LOWER TERMINAL
8.5Nm(6.3 lb ft)
5B
151
152
153
154
151
152
153
155
RF Env1(S,N,H)-F 1600 HR -> E2.2(B,N,S,H)-A 1600
- Installare i terminali sull’interruttore .
- Install the terminals to the breaker
- Installieren Sie die Klemmen am Leistungsschalter
- Installer les prises sur le disjoncteur
- Instale los terminales al interruptor
- Installare i terminali sull’interruttore .
- Install the terminals to the breaker
- Installieren Sie die Klemmen am Leistungsschalter
- Installer les prises sur le disjoncteur
- Instale los terminales al interruptor
RF M-PACT Plus/M-PACT Frame Size1 (S,N)-F 2000 HR -> E2.2(B,N,S,H)-A 2000
