1HSA 801 080-15en EXCOUNT-II Users Manual

5. Transceiver menus

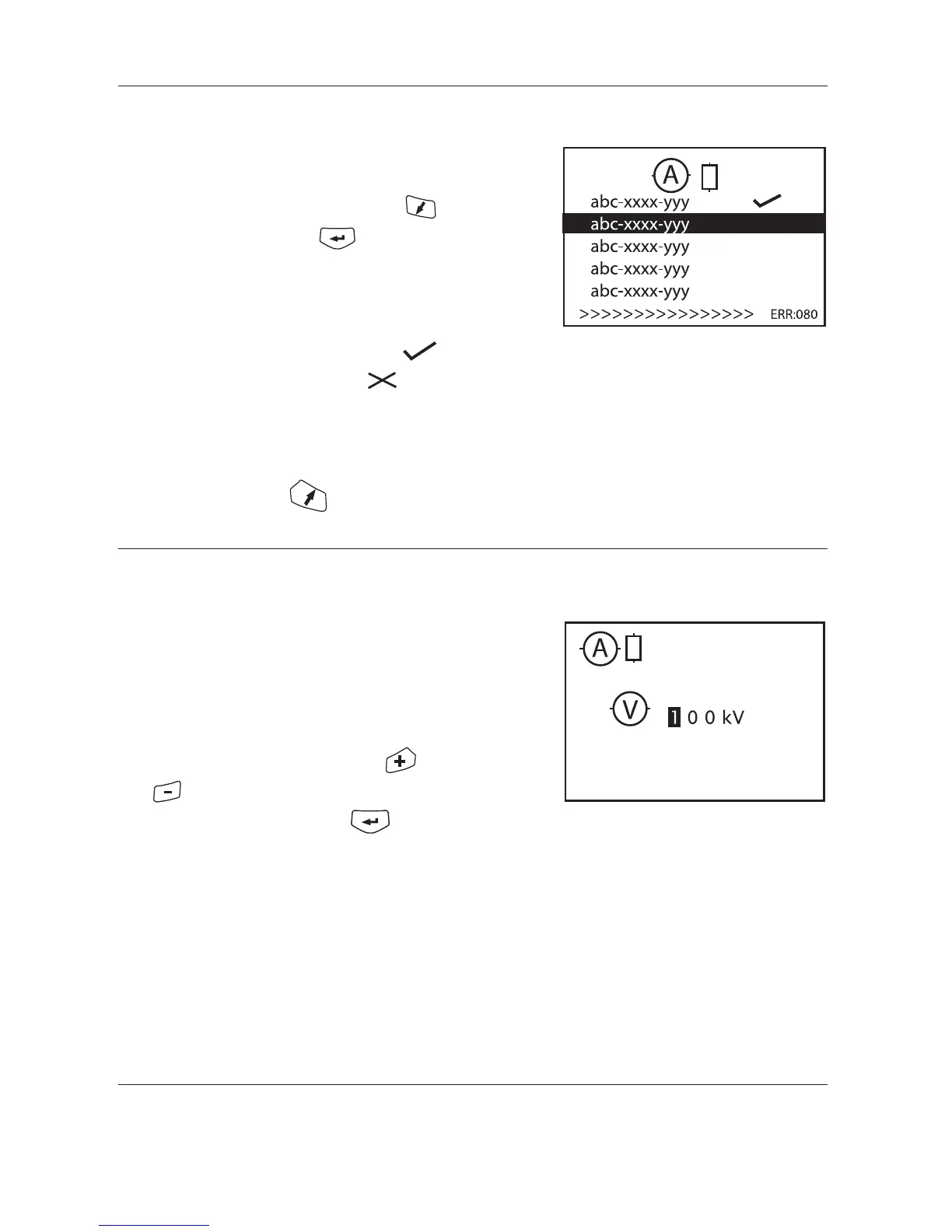

5.3.3 Resistive leakage current measurement

Not available in all versions.

Select sensor ID to read data from with the key.

Start the reading by pressing

Before the transmission begins the operating voltage must be

given. (see 5.3.3.1)

A successful transmission is marked with

A failed transmission is marked with

If the transmission was unsuccessful, an error code

will be displayed.

Back to read data menu

5.3.3.1 Operating voltage

Not available in all versions.

The actual operating voltage must be given when

measuring the resistive leakage current.

The system voltage is displayed as a default value.

Adjust the value to the actual value with

and keys.

Enter the correct value by pressing

NOTE! If the system is 3-phase, the value should be the actual

phase-phase voltage. Otherwise, for 1-phase systems, the value

should be the phase-ground voltage.

The progress bar will indicate that the transmission

has begun.

Progress bar Error code
