ABB F Series User Manual

9
8
7
6
5
4
3
2
1
10

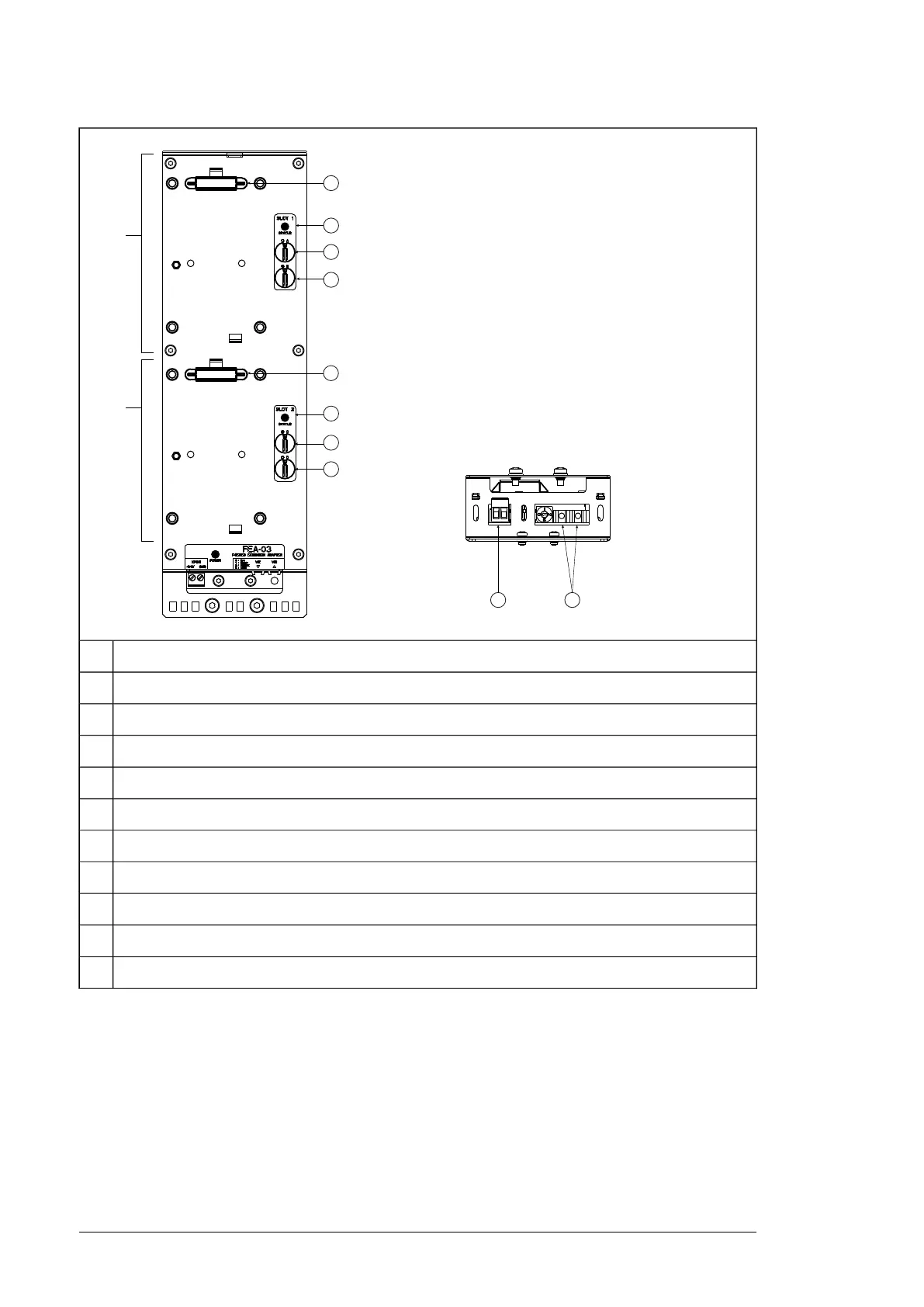

Slot 1
Slot 2
Module connector 11
Status LED for Slot 12
Node address switch A3
Node address switch B4
Module connector 25
Status LED for Slot 26
Node address switch C7
Node address switch D8
Power supply connector (XPOW)9
Transmitter V1T and receiver V1R10
Transmitter current selector11
You can connect several FEA-03 extension adapters in a ring topology with a fibre-optic
cable. See section Connecting the adapter to the drive control unit (page 21).
12 Hardware description
