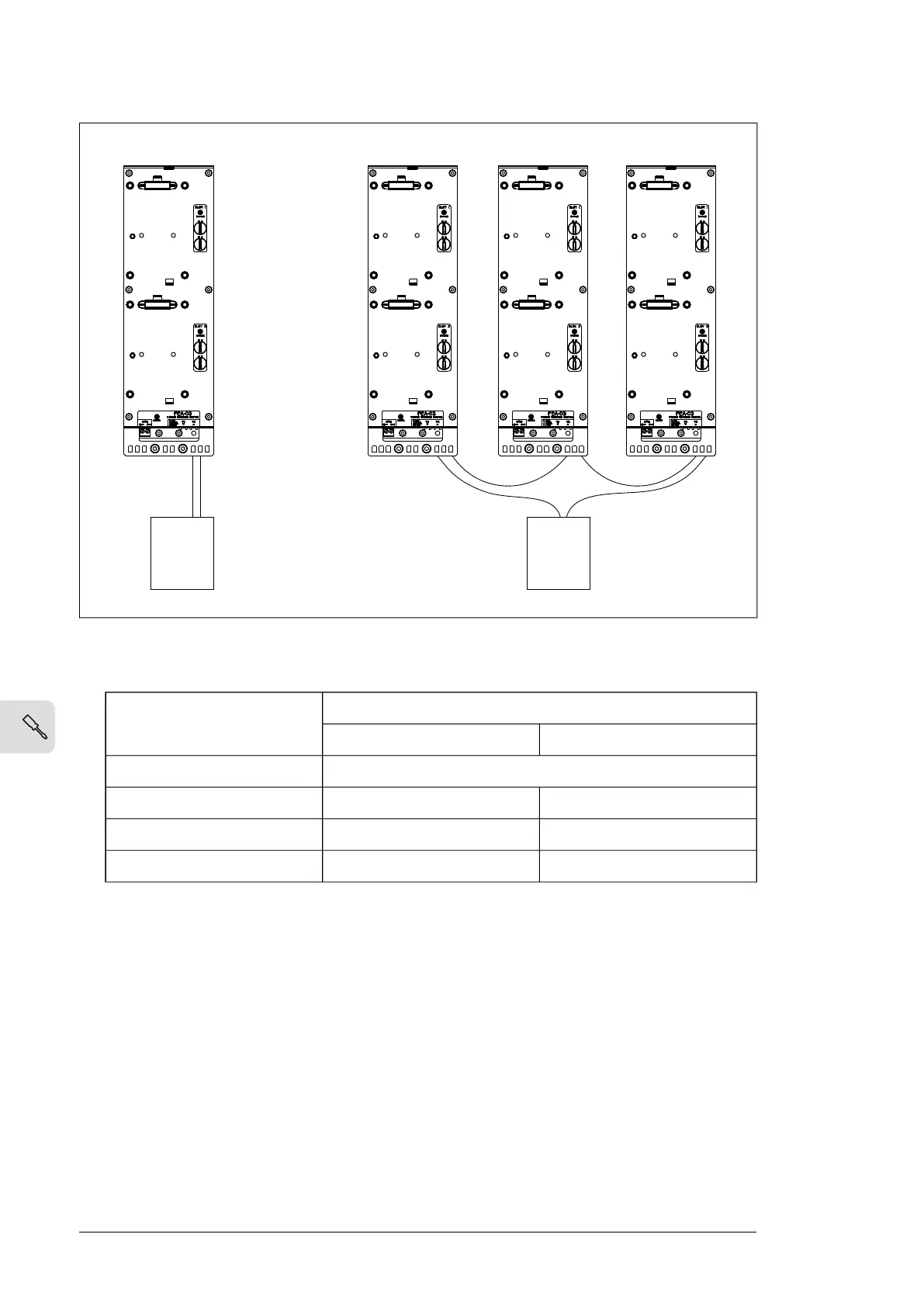

FEA-03 FEA-03 FEA-03 FEA-03
FDCO
or
RDCO
FDCO
or
RDCO
V1R V1T
V1R
V1T
V1T V1R
V1T
V1R
V1T
V1R
V1T
V1R
1. If you use an FDCO module, set the current selector switch to agree with the cable length
as shown in the table below.
Cable lengthSwitch position
HCS, 200 μmPOF, 1 mm
Disabled0 - OFF
0.1…50 m0.1…20 m1 - SHORT
50…100 m20…25 m2 - MEDIUM
100…200 m25…30 m3 - LONG
2. If you use an RDCO module, set the channel parameter values in the drive control
program. Use RDCO channel 3. See the applicable drive firmware manual for more
information.
3. Set the FDCO or RDCO channel that is used to connect the FEA-03 module in the drive
control program (parameter 60.41 Extension adapter com port in ACS880 primary control
program).
4. Connect the power supply cable to the power supply connector (XPOW) at the base of
the adapter.
22 Electrical installation
