12
Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25
G000700

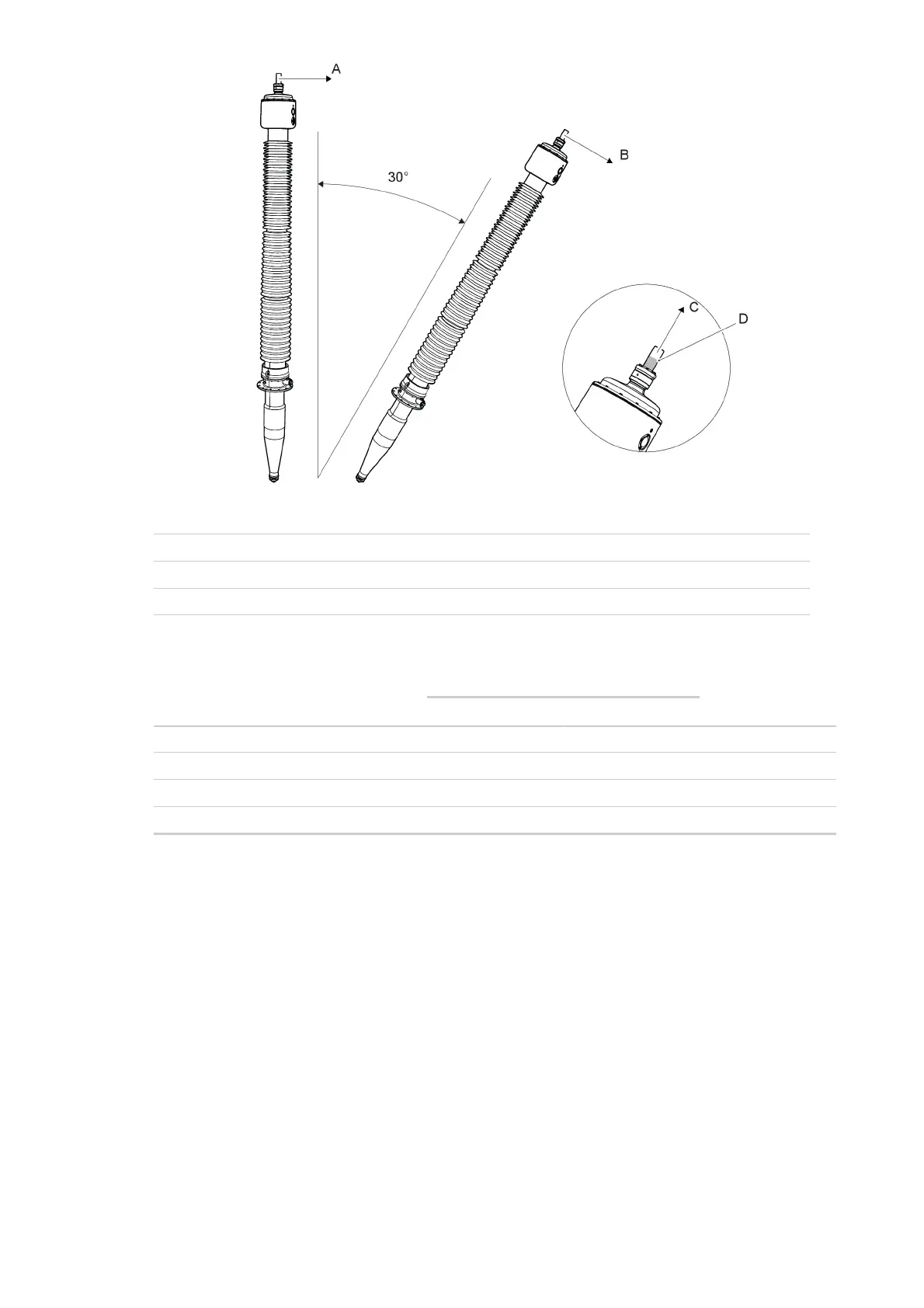

A. Maximum cantilever load at installation angle 0°
B. Maximum cantilever load at installation angle 30°
C. Maximum axial static load
D. Load applied at the midpoint

Type Test load 1 minute
(N)
Maximum cantilever load in operation
at installation angle (N)
Maximum axial
static load (N)
0° 30°
GOE(2) 1175 10000 5000 4400 20000
GOE(2) 1425 10000 5000 4100 20000
GOE(2) 1550 10000 5000 3900 20000
GOE(2) 1675 10000 5000 3900 20000
Maximum permitted torque on the outer terminal
The maximum torque that is permitted on the outer terminal is 250 Nm.
