ABB GOE(2) - Hydraulic Tightening of the Draw-Rod Nut

42
Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25
4.7 Hydraulic tightening of the draw-rod nut

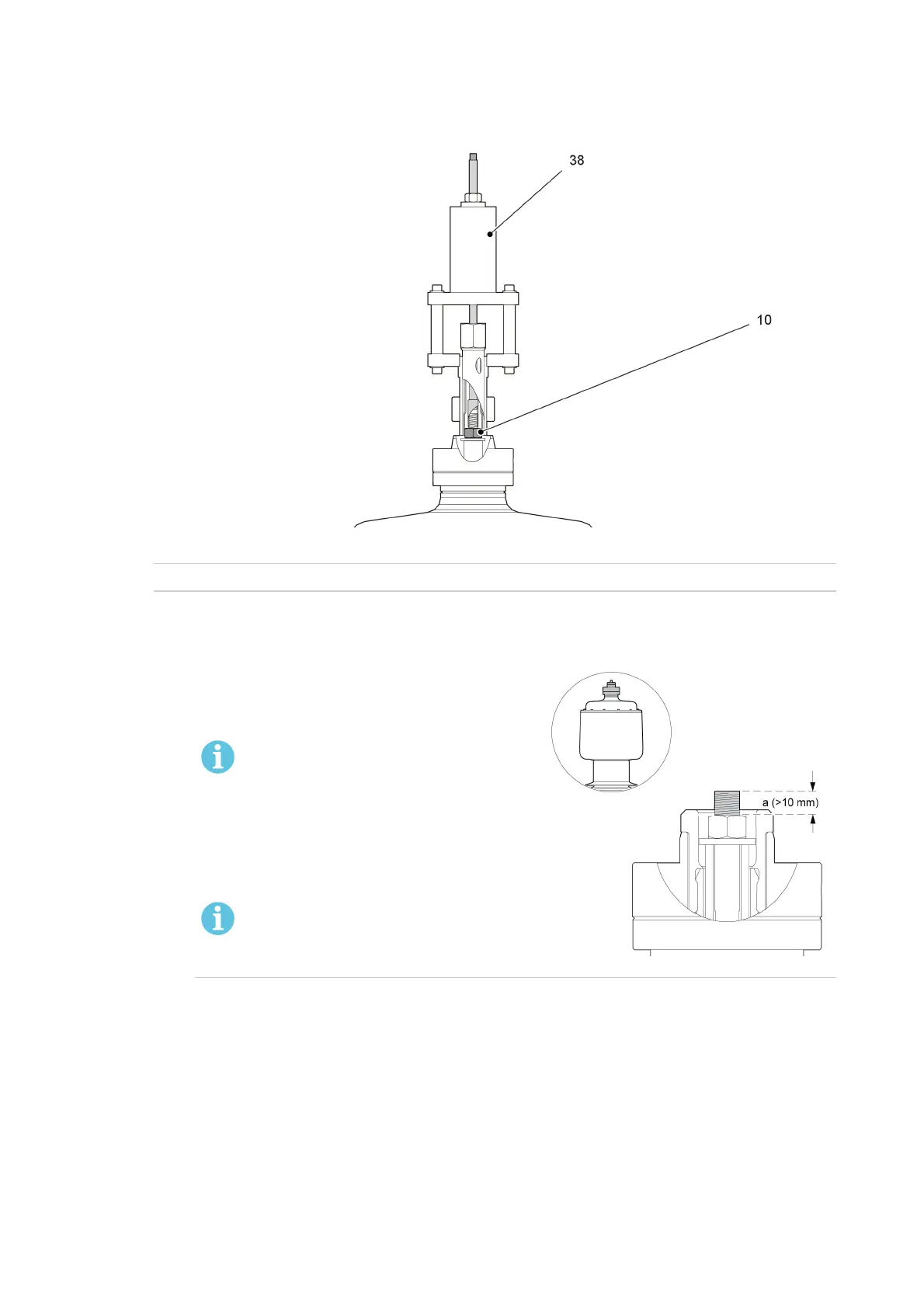

Overview
G006893
10 Draw rod nut
38 Hydraulic jack
Procedure
1. Measure the distance (a). Measuring is performed
when the draw rod nut is tightened with torque
10 Nm.
NOTE!
The bushing is delivered with an
information sheet that specifies the
draw-rod extension (b-a). These values
are measured when the bushing is
manufactured, and are unique to every
unit.
NOTE!
Record the values in Measurement
record, page 77, for future reference.
G006845
