ABB GOE(2) - Installation of the Small Bottom Contact in the Transformer

Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25
29

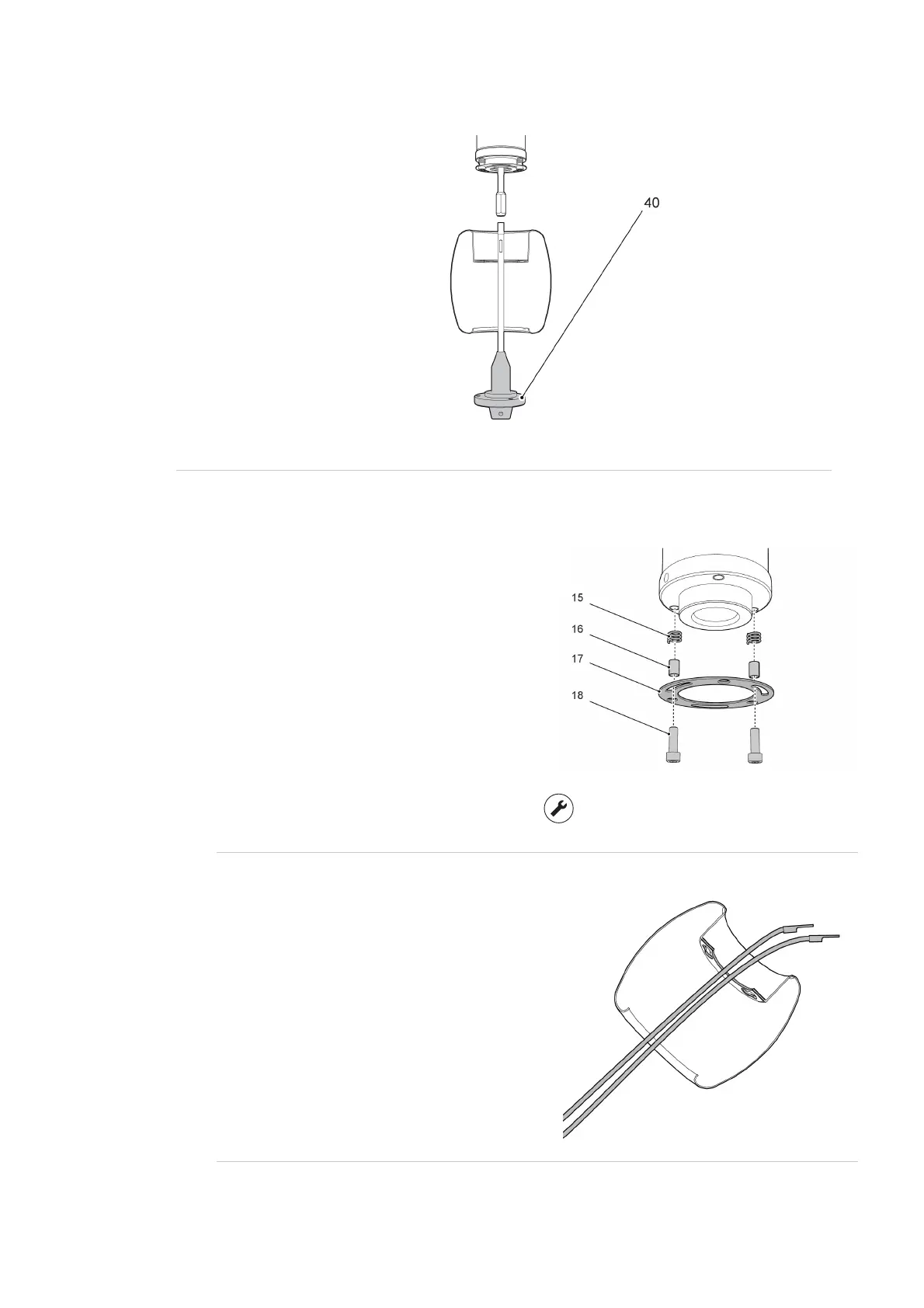

4.5.2 Installation of the small bottom contact in the transformer
Overview
G004295
40 Small bottom contact
Procedure
1. Install the springs (15), the guiding sleeves (16),
the pressing ring (17), and the hex screws M10
(18) to the bottom end of the bushing.
G002998
Torque
40 Nm
2.
Put the winding cables through the end-shield.
G007285
