Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25
43

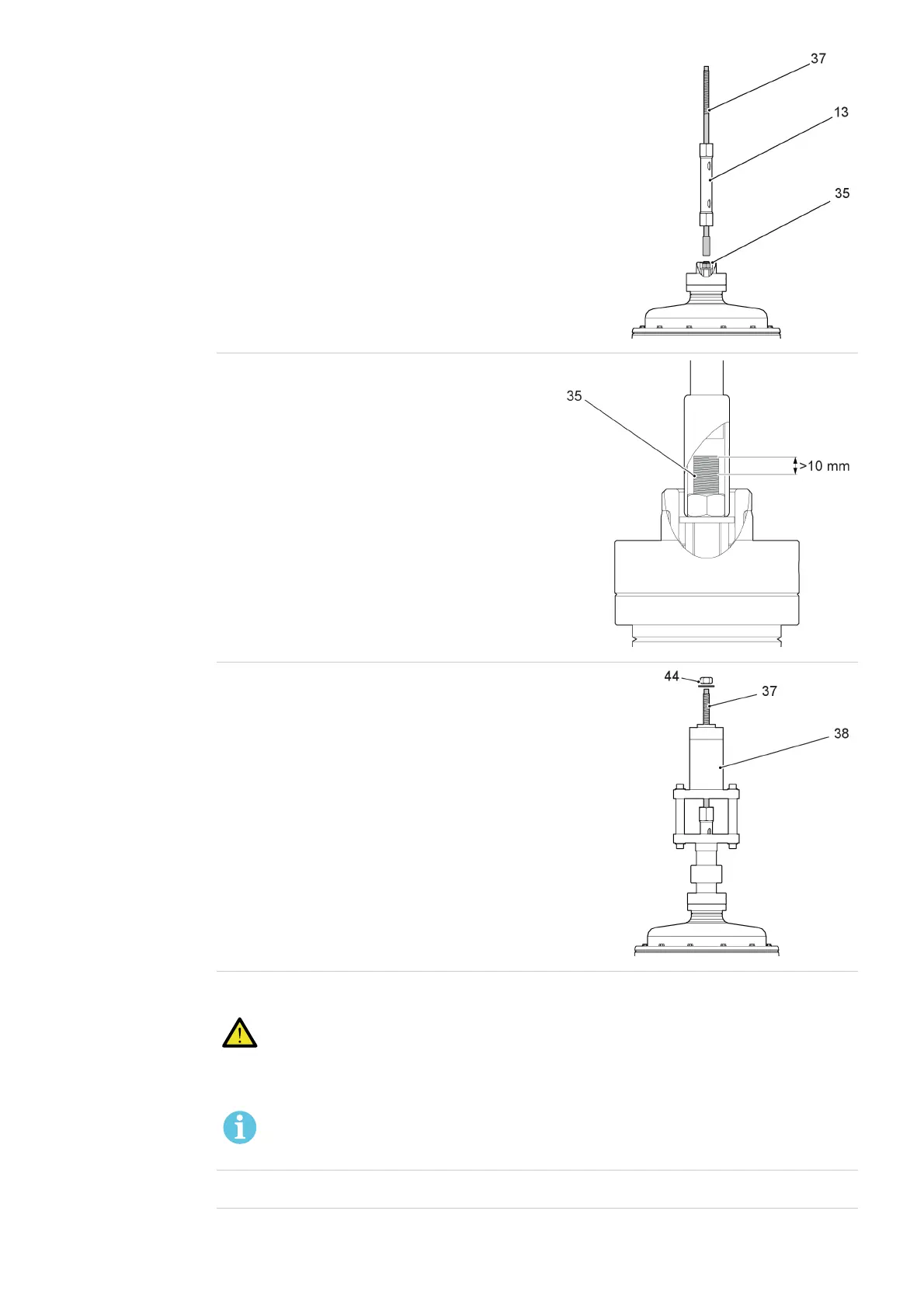

2. Install the shaft (37) on the draw rod (35), and put
the box-spanner (13) on the shaft (37).
G006805
3.
Make sure that more than 10 mm of the threads
on the upper draw rod (35) are used.
G006806
4.
Put the hydraulic jack (38) on the shaft (37), and
install the nut (44) but do not tighten it.
G006807
5.
Pull the draw rod with 40 kN.
DANGER!
Apply the hydraulic pressure carefully. Incorrectly used high pressure hydraulics can break
with explosive force.
NOTE!
It is not necessary to compensate for variations in ambient temperature.
6.
Turn the nut on the upper draw rod (35) with the box-spanner, tighten by hand.
