16
Installation and commissioning guide
1ZSC000563-ACF EN, REV. A, 2020-06-25
3. Remove the support blocks from the transport box and put them on the ground.
CAUTION!
Make sure that the ground is flat.
4.

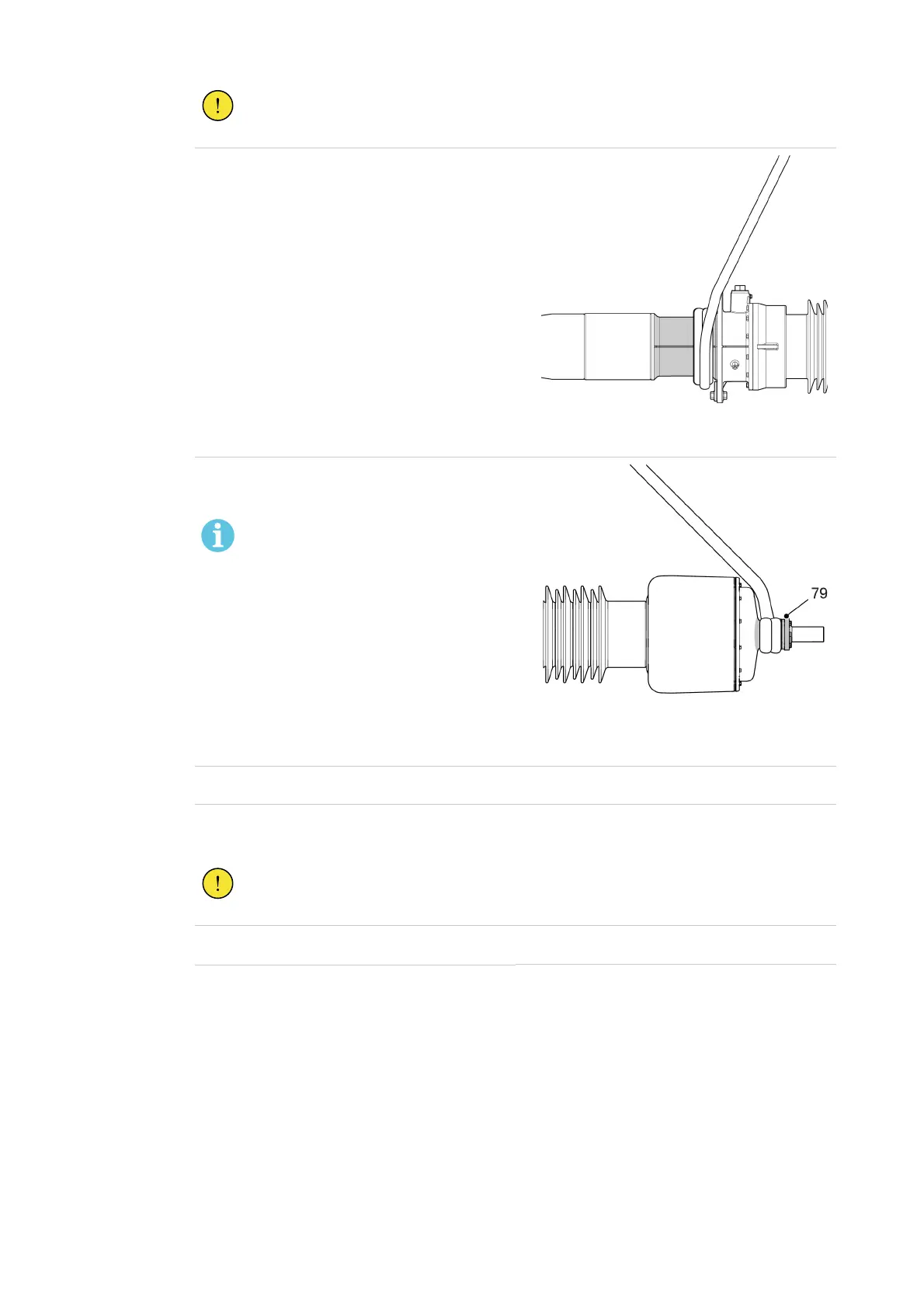

Attach a soft lifting sling to the lower part of the
flange and then to the crane hook.
G006405
5.
Attach a soft lifting sling to the top end nut (79)
and then to the crane hook.
NOTE!
If the outer terminal is not installed,
please contact ABB.
G006423
6.
Carefully lift the bushing.
7.
Make sure that the support blocks are in the same positions as the support blocks in the
transport box.
CAUTION!
Do not apply force to the ceramic insulator, it will break.
8.
Lower the bushing onto the support blocks.
End of instruction
