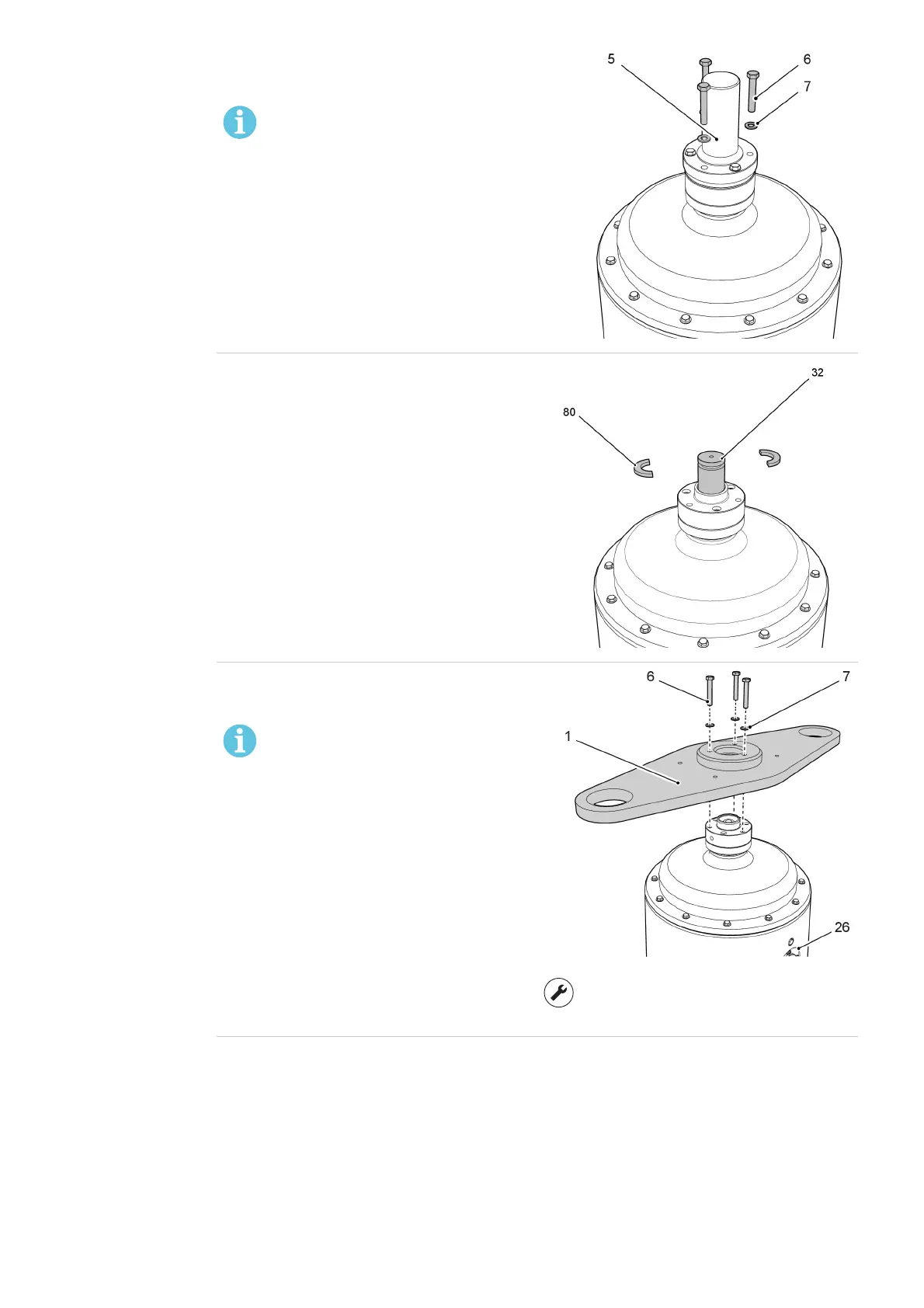

2. Remove the M10 bolts (6) and washers (7), and
then remove the outer terminal (5).
NOTE!
Keep the outer terminal (5),
washers (7) and bolts (6), they will be
used again.
G006855
3.
If the bushing has the draw-lead system, remove
the divided ring (80) and the inner terminal (32).
G006854
4.
Install the lifting tool (1), the M10 bolts (6) and the
washers (7).
NOTE!
Align the side of the lifting tool with the
oil-level guage (26).
G004721
Torque
40 ±4 Nm
End of instruction
