Draw-rod system
The draw rod can be configured with an optional joint (53) to fit transformers with short bushing turrets.
The bottom-contact joint (56) is locked with threadlocking fluid as standard.
The bushing has draw rod with one upper joint (52), it is always locked with threadlocking fluid. All joints
must be locked with threadlocking fluid when the bushing is in operation at site.

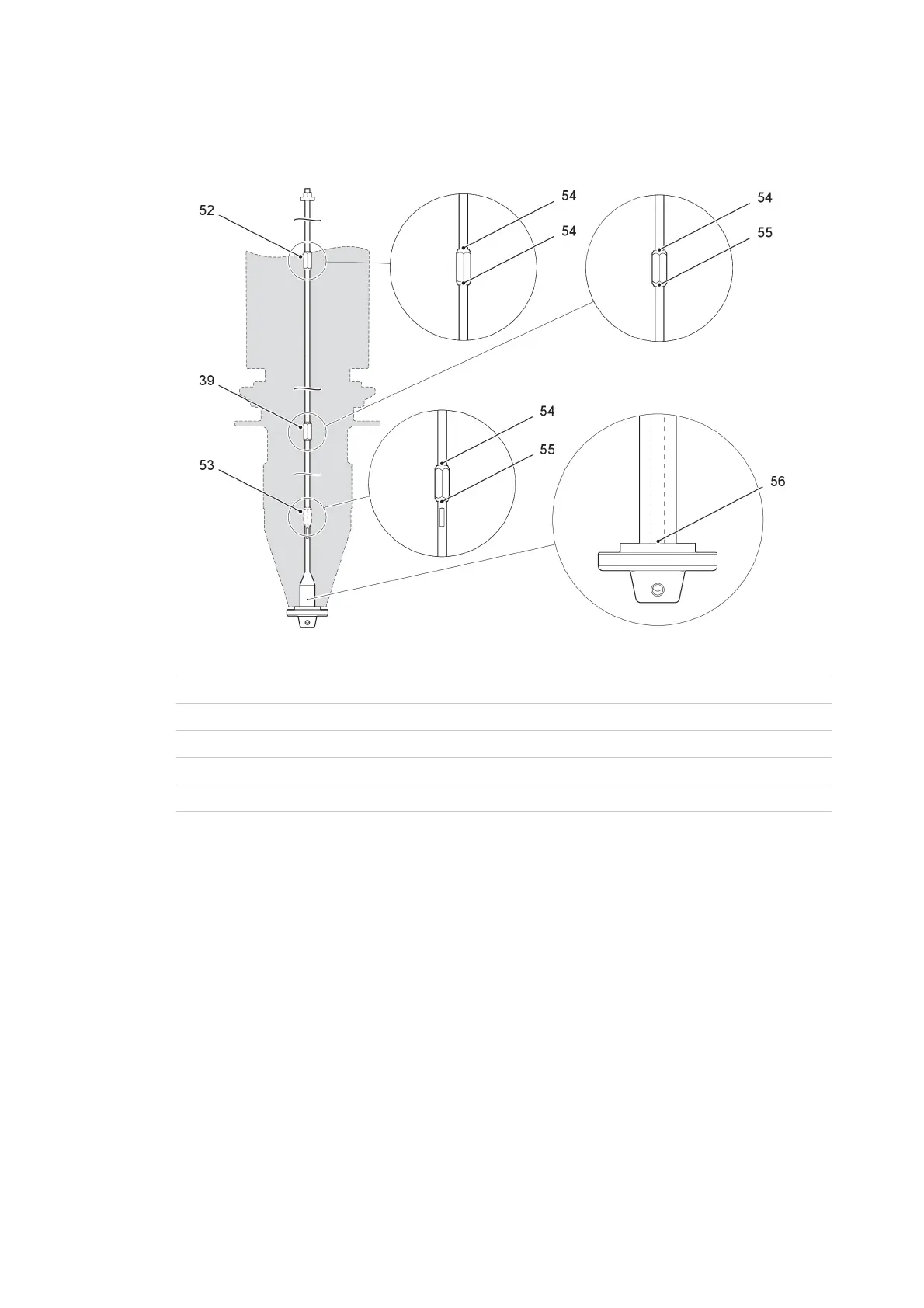

G006404
39 Lower joint (at flange level).
52 Upper joint.
53 Additional joint (option).
54 Thread is locked with threadlocking fluid.
55 Thread is NOT locked with threadlocking fluid.*
56 Bottom-contact joint, locked with threadlocking fluid.
* All unlocked threads must be locked with threadlocking fluid, when the bushing is installed at site.
