Terminal indications of DOL- and ROL- types
No. Indication HFxx-DOL-24 V DC HFxx-ROL-24 V DC
1 U
s
Input control supply voltage Input control supply voltage
2 HFxx-DOL: ON
HFxx-ROL: R, L
Connection point for ECD - external control
device for starting the motor
Connection point for ECD - external control
device Right /Left rotation
3 MAN, RES, AUT Acknowledgement inputs Acknowledgement inputs
4 95,96,97 Switch over contact - fault signaling output Switch over contact - fault signaling output
5 Potentiometer Potentiometer for the rated operational
current "I
e
" of the motor
Potentiometer for the rated operational
current "I
e
" of the motor
6 PWR LED PWR LED (green) PWR LED (green)
7 ERR LED ERR LED (red) ERR LED (red)
8 Iadj LED Iadj LED (yellow) Iadj LED (yellow)
9 DOL: ON LED
ROL: R-, L-LED
ON LED (Rotation) R-LED (Right rotation)
L-LED (Left rotation)
10 Reset button Reset after trip Reset after trip
11 2/T1, 4/T2, 6/T3 Main circuit output Main circuit output
12 1/L1, 3/L2, 5/L3 Main circuit input Main circuit input
13 Metal latch Metal latch for fixation to the
DIN rail
Metal latch for fixation to the
DIN rail

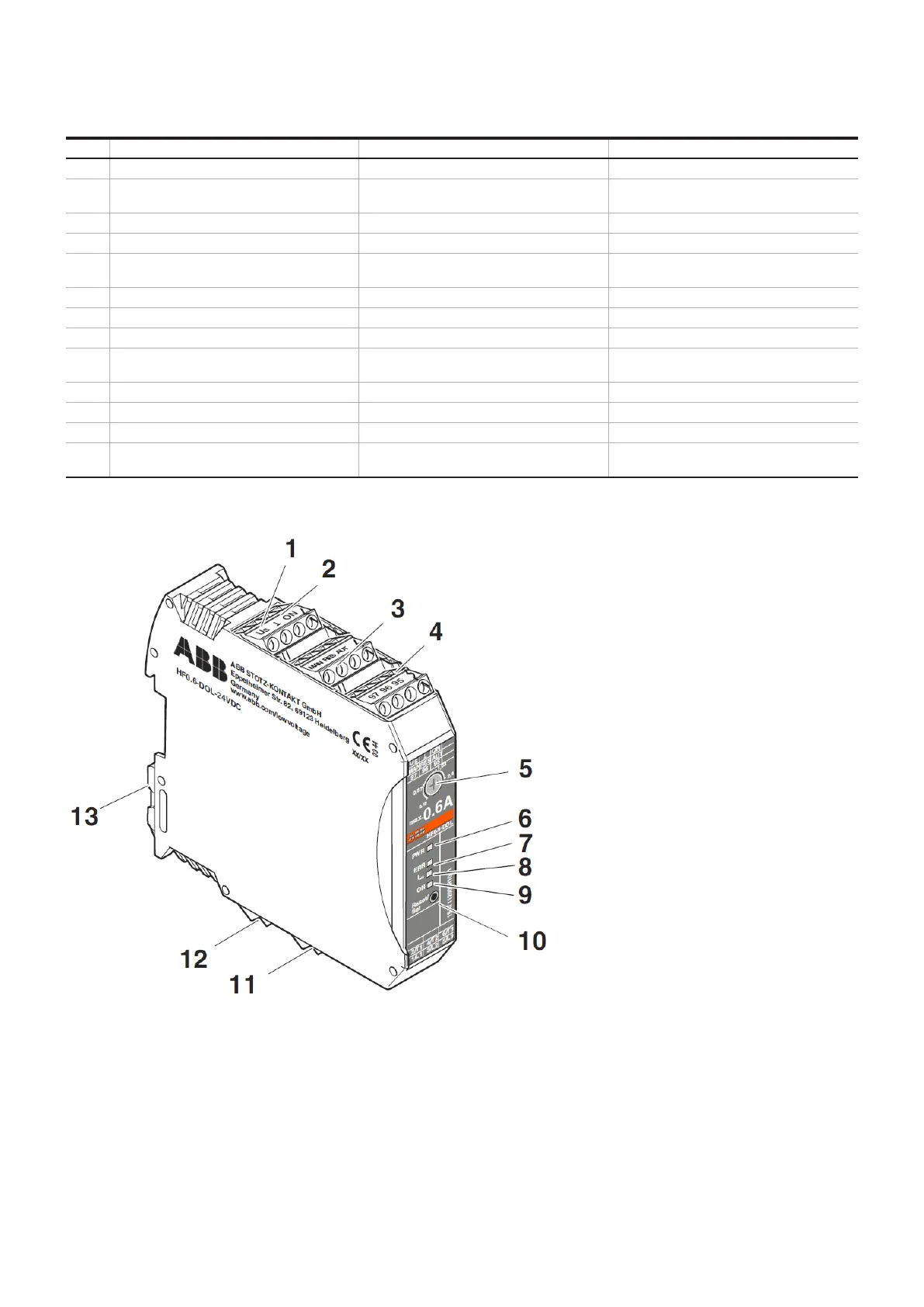

Table 2 Explanation of terminals and LED status indicator of DOL, ROL types
—
05 Explanation of terminals and LED
status indicator of DOL-ROL- types
10 ELECTRONIC COMPACT STARTER | MANUAL
