ABB HT576667 - Fig. 50: Fitting the Spinner Nose Cone (25012); Table 34: Tightening Torque (25013)

Operation Manual / 4 Product description / A100-M axial
8 Disassembly and assembly / 8.9 Installing the cartridge group
© Copyright 2017 ABB. All rights reserved. HZTL4033_DE Revision B December 2017

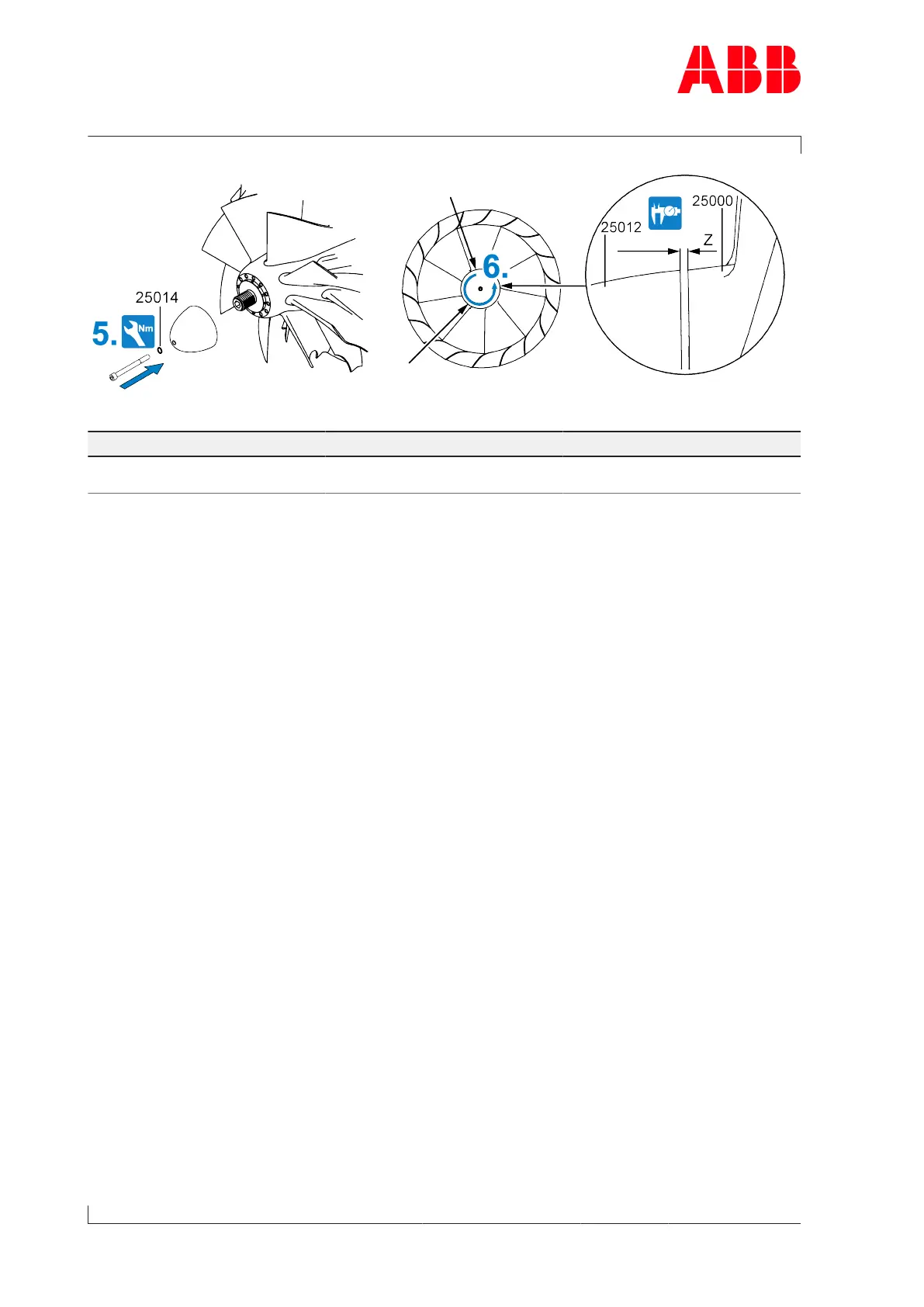

Fig.50: Fitting the spinner nose cone(25012)
Part number A170-M A175-M
25013 M8
20 Nm
M10
40 Nm
Table34: Tightening torque (25013)
5. Fit the spinner nose cone and secure with washer (25014) and screw. Counterhold the
compressor wheel (25000) by hand and tighten the screw. Observe the tightening
torque.
6. Measure distance Z between spinner nose cone and compressor wheel at no less than
three points around the circumference.
Permissible distance Z: 0.1 – 0.7 mm
Permissible difference of the measurements: ± 0.1 mm
