Installing cover ring

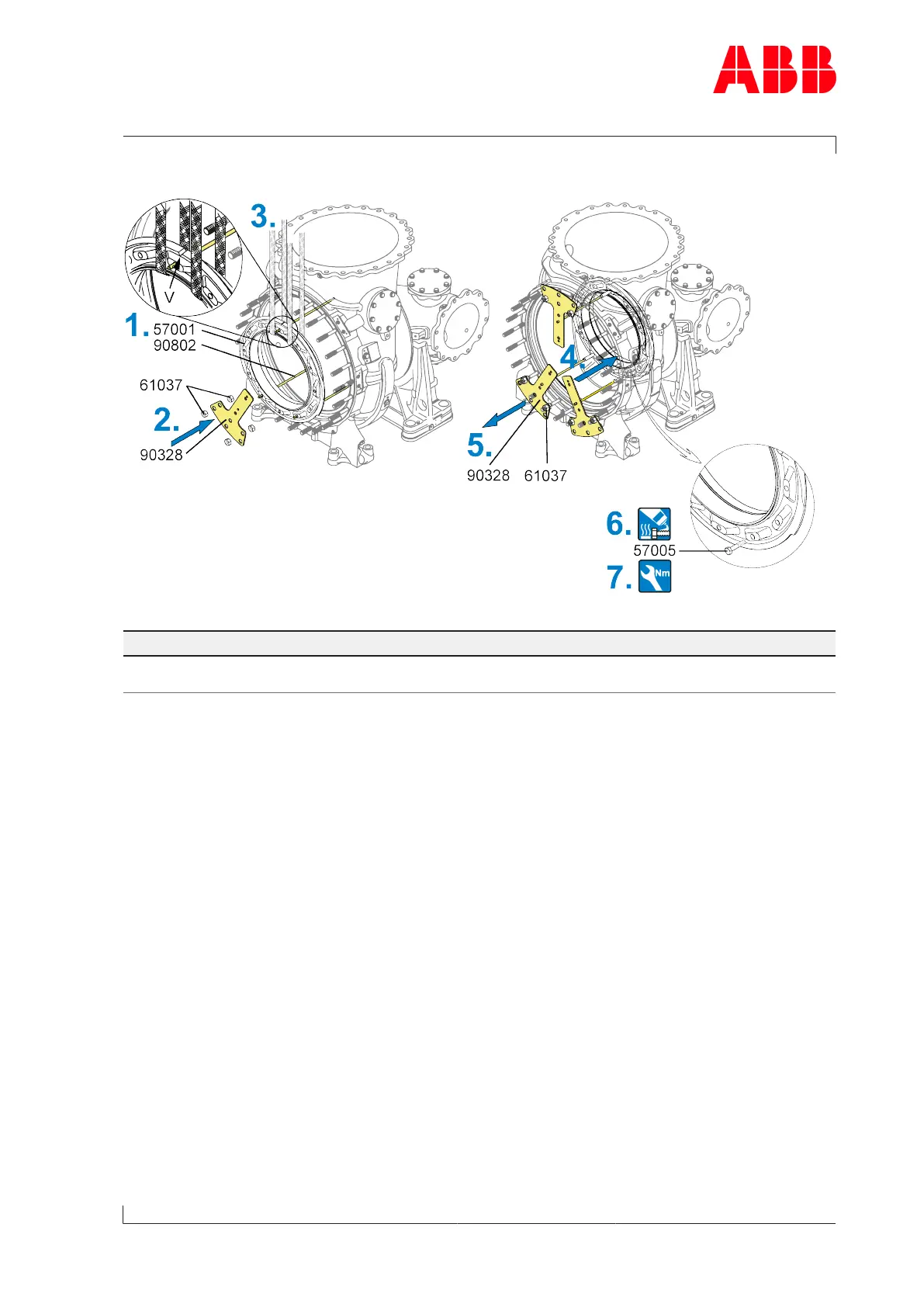

Fig.44: Installing cover ring
Part number A170-M A175-M
57005 M14
130 Nm
M16
200 Nm
Table30: Tightening torque (57005)
1. Using lifting gear, move in cover ring (57001) over guide studs (90802) with notch (V) fa-
cing the gas outlet flange until the lifting gear is on the gas outlet casing.
2. Fit guide plates (90328) with nuts (61037).
3. Remove the lifting gear.
4. Slide in cover ring as far as it will go.
5. Remove guide plates (90328) and nuts (61037).
6. Coat threads of screws (57005) with high-temperature grease.
7. Fit and tighten screws (57005).
