8 Disassembly and assembly / 8.5 Removing the compressor casing
© Copyright 2017 ABB. All rights reserved. HZTL4033_DE Revision B December 2017
Removing the diffuser

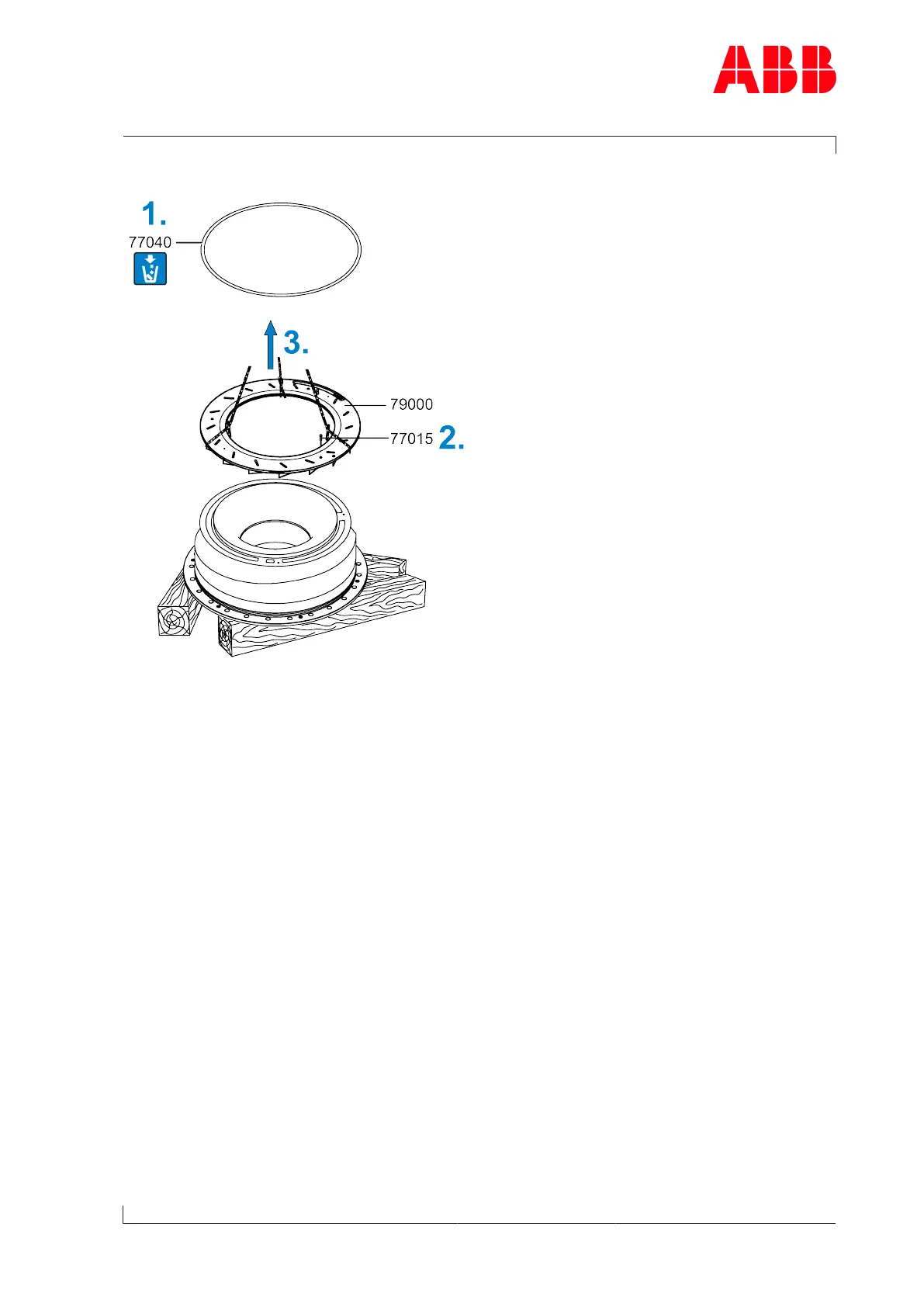

Fig.31: Removing the diffuser
1. Remove and dispose of the O-ring (77040).
2. Loosen and remove screws(77015).
3. Loop diffuser(79000) with lifting gear and remove.
