Operation Manual / 4 Product description / A100-M axial
2 Removal and installation / 2.2 Removing the turbocharger
© Copyright 2017 ABB. All rights reserved. HZTL4033_DE Revision B December 2017
Turbocharger with clamping nuts

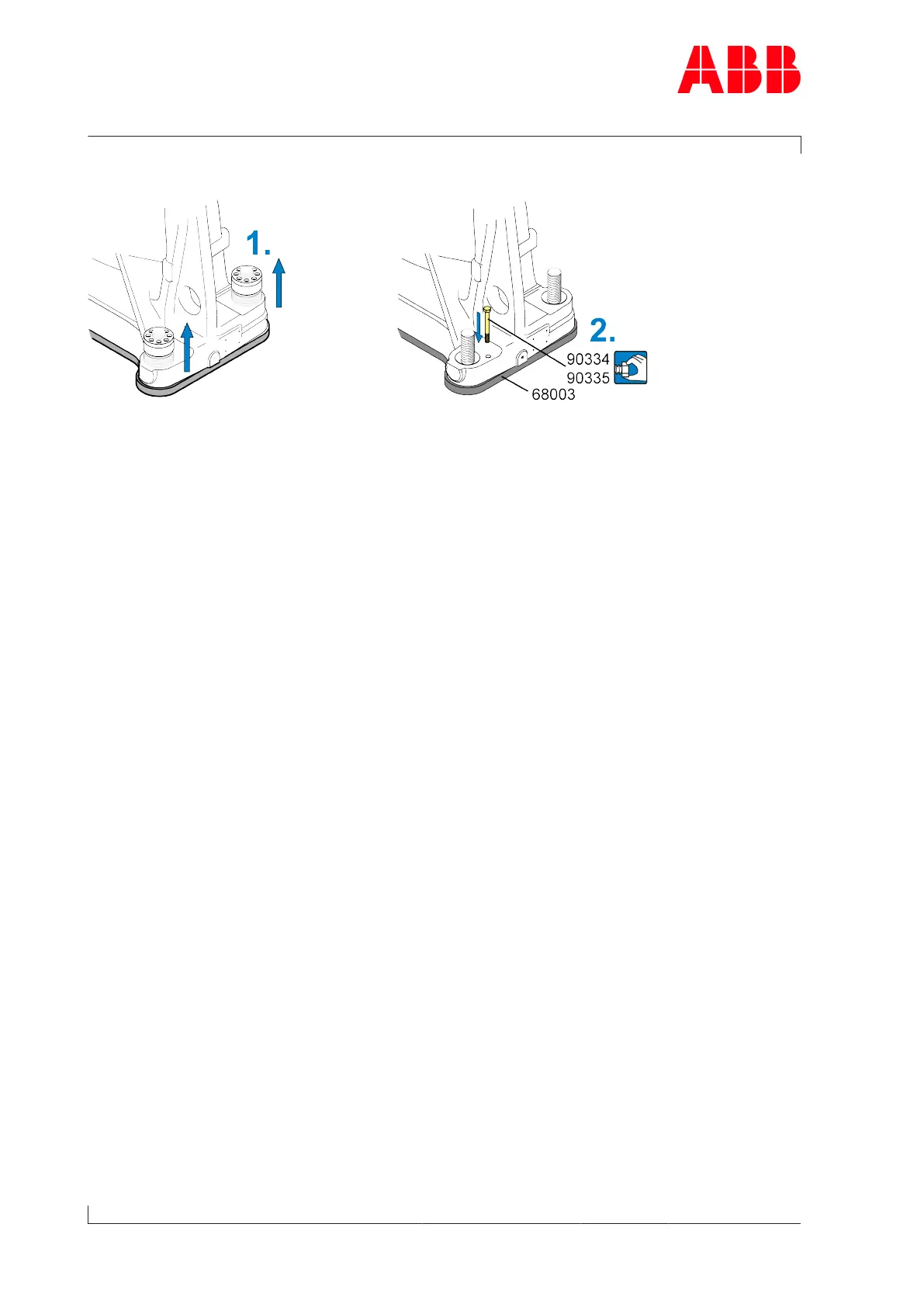

Fig.7: Removing the foot mounting
1. Loosen clamping nuts on compressor-end and turbine-end foot (see Loosening the
clamping nut →11).
2. Fit transport screws (90334 / 90335) to secure the sliding block (68003) on the left and
right on the turbine-end foot.
u Lift the turbocharger from the engine and put it down.
u Cover all oil connections.
Page 10 / 99
