3.3.1. Inspection, damper axes 2, 3 and 5
933HAC026660-001 Revision: C
© Copyright 2006-2008 ABB. All rights reserved.
3.3 Inspection activities
3.3.1. Inspection, damper axes 2, 3 and 5
Location of dampers

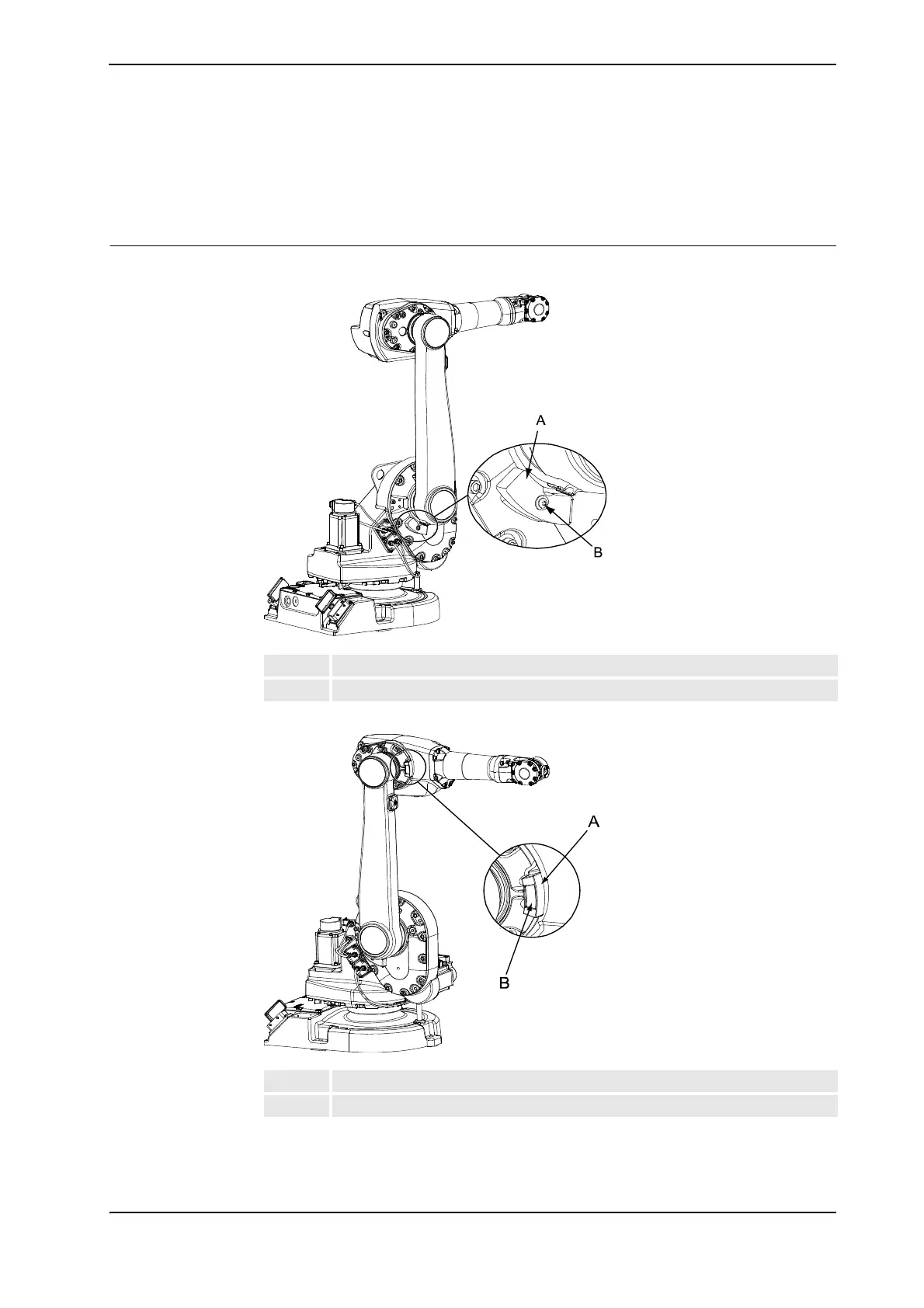

The figure below shows the location of all the dampers to be inspected.
xx0400001217
xx0400001215
A Damper, axis 2
B Attachment screw
A Damper, axis 3
B Cast tab
