2.4.2. Working range and type of motion
Working range
The following figures show the working ranges of the robot models. The extreme positions
of the robot arm are specified at the wrist center (dimensions in mm).
IRB 6640 - 180/2.55, 235/2.55, 205/2.75, 185/2.8, 130/3.2 & IRB 6640ID - 200/2.55, 170/2.75

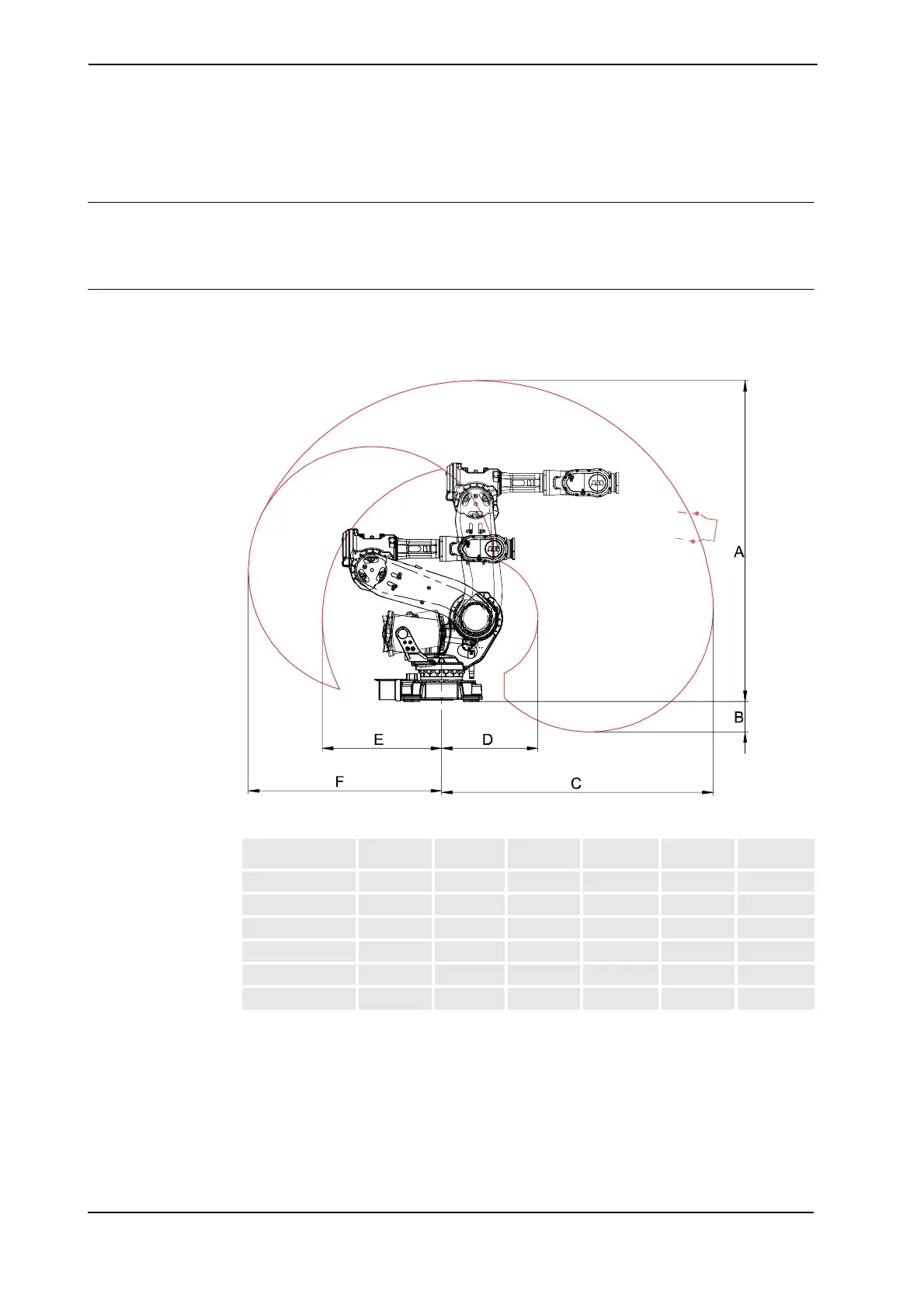

The illustration below shows the unrestricted working range. Measurements for the different
robot variants, are shown as A to F, in the illustration below.
xx0600003396
Robot model A B C D E F
IRB 6640-2.55 3013 mm 284 mm 2550 mm 903 mm 1119 mm 1814 mm
IRB 6640-2.75 3219 mm 268 mm 2755 mm 961 mm 1252 mm 1999 mm
IRB 6640-2.8 3261 mm 533 mm 2800 mm 1004 mm 1324 mm 2061 mm
IRB 6640-3.2 3665 mm 713 mm 3200 mm 1067 mm 1604 mm 2445 mm
IRB 6640ID-2.55 3013 mm 284 mm 2550 mm 903 mm 1549 mm 1814 mm
IRB 6640ID-2.75 3219 mm 268 mm 2755 mm 961 mm 1682 mm 1999 mm
