Wood Pole and Wall Mounting
For wood pole and wall mounting, the antenna radome must be clear of obstruction.

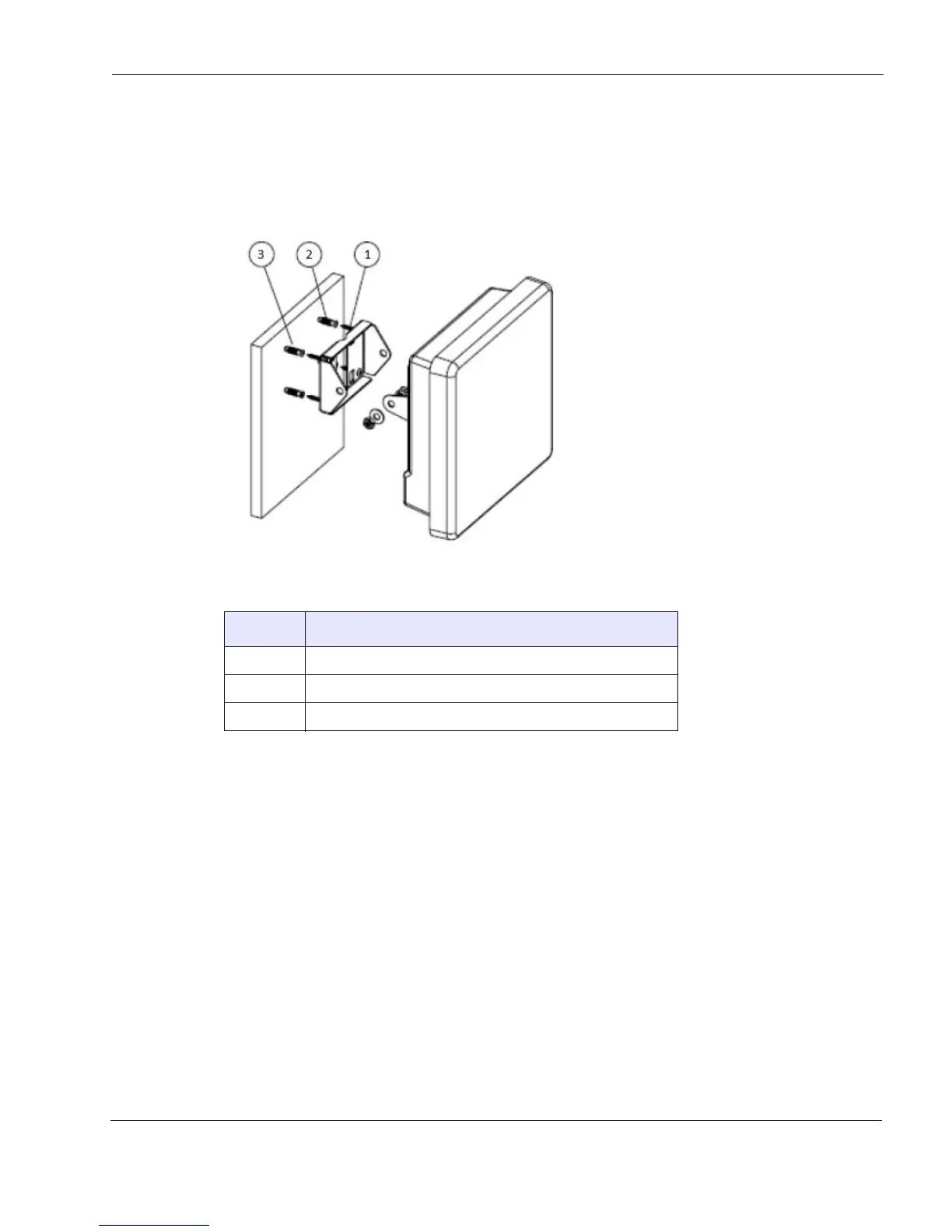

Figure 3 Wood Pole and Wall Mounting
Mount the MicrOS 410 on a wood pole or wall
1. Select a mounting location. You can attach the MicrOS 410 to any outdoor wood pole of
diameter at least 1 inch.
2. Attach the pole bracket to the pole by threading a 1/4-inch lag bolt through the hole in the
clamp slot to the pole. Make sure that the bracket is level. Alternatively, a hole can be drilled
through the pole and a 1/4-inch bolt of sufficient length can be used with a washer and nut.
3. Attach the MicrOS 410 with mounting bracket to the pole bracket as shown in the figure.
Make sure the unit is level.
— Insert one screw through the hole at the top of the mounting bracket to the hole at the top
of the pole bracket.
— Insert the other screw through the curved slot track in the mounting bracket to the hole in
the middle of the pole bracket just above the clamp slot.
Table 4 Wood Pole and Wall Mounting Callouts
Item
Description
1 Anchor screws (4 pieces)
2 Plastic anchor (4 pieces)
3Wall
