SYS 600C as Communication Gateway4.2.
SYS 600C is used for multiple purposes at a substation level. The Communication
Gateway function is one of the tasks that can be utilized at the substation level to enable
connections to Remote Control Centers (SCADA). SYS 600C Communication Gateway
can connect to, and interact with, eight (8) different Remote Control Centers.
The SYS 600C Communication Gateway function can be configured as a single gateway
as shown in Figure 4.2-1.

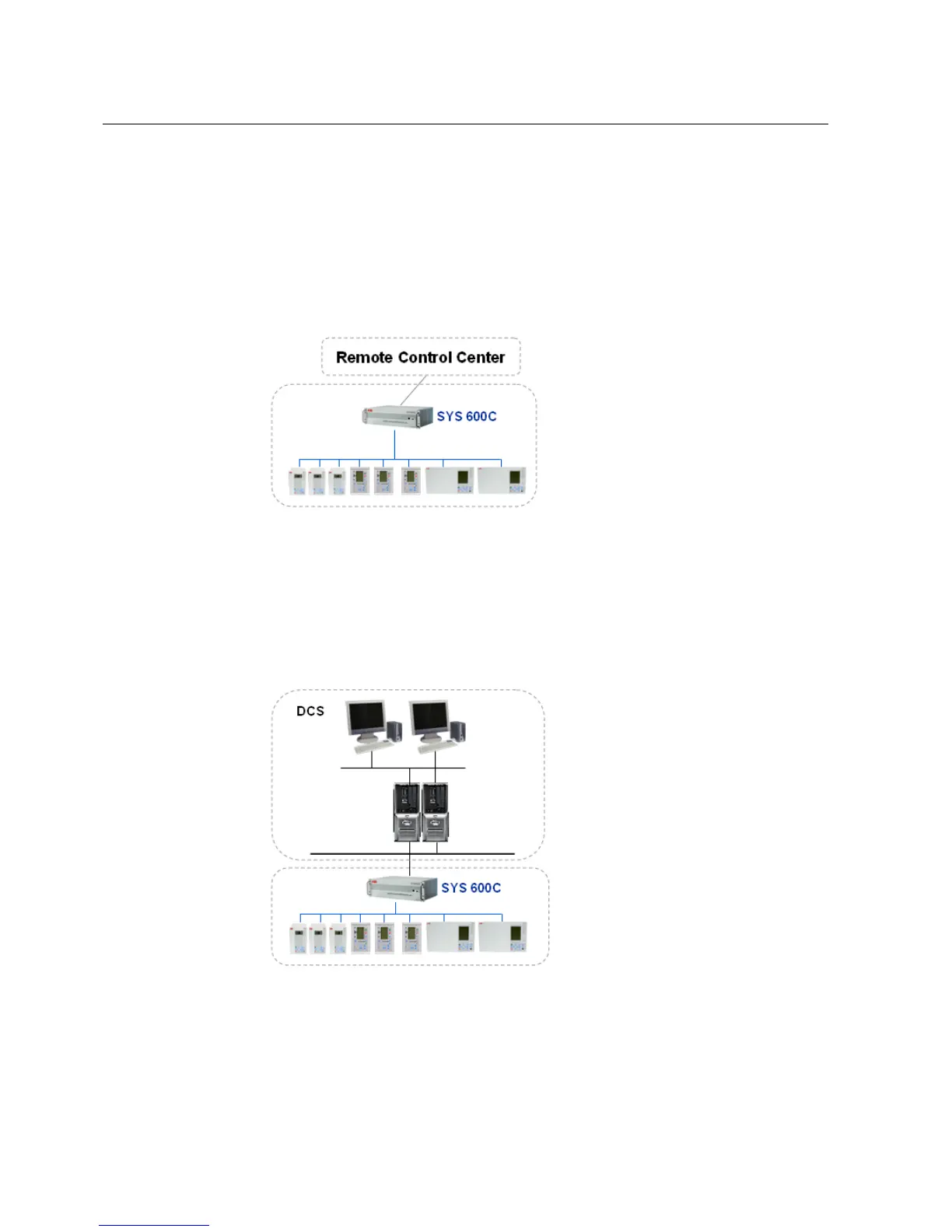

Figure 4.2-1 SYS 600C as Communication Gateway
Utilizing the OPC interface in SYS 600C enables an easy and efficient integration of
IED signals and information into a DCS system, as shown in Figure 4.2-2.
This configuration is typically applied in Process Industries with distributed Intelligent
Electronic Devices (IEDs).
Figure 4.2-2 SYS 600C Communication Gateway interface to Distributed Control Systems (DCS)
