31
1SCC303002M0204, rev. D
Installation and operating instructions, OTM_C8. Accessories
8.3 Terminal shrouds

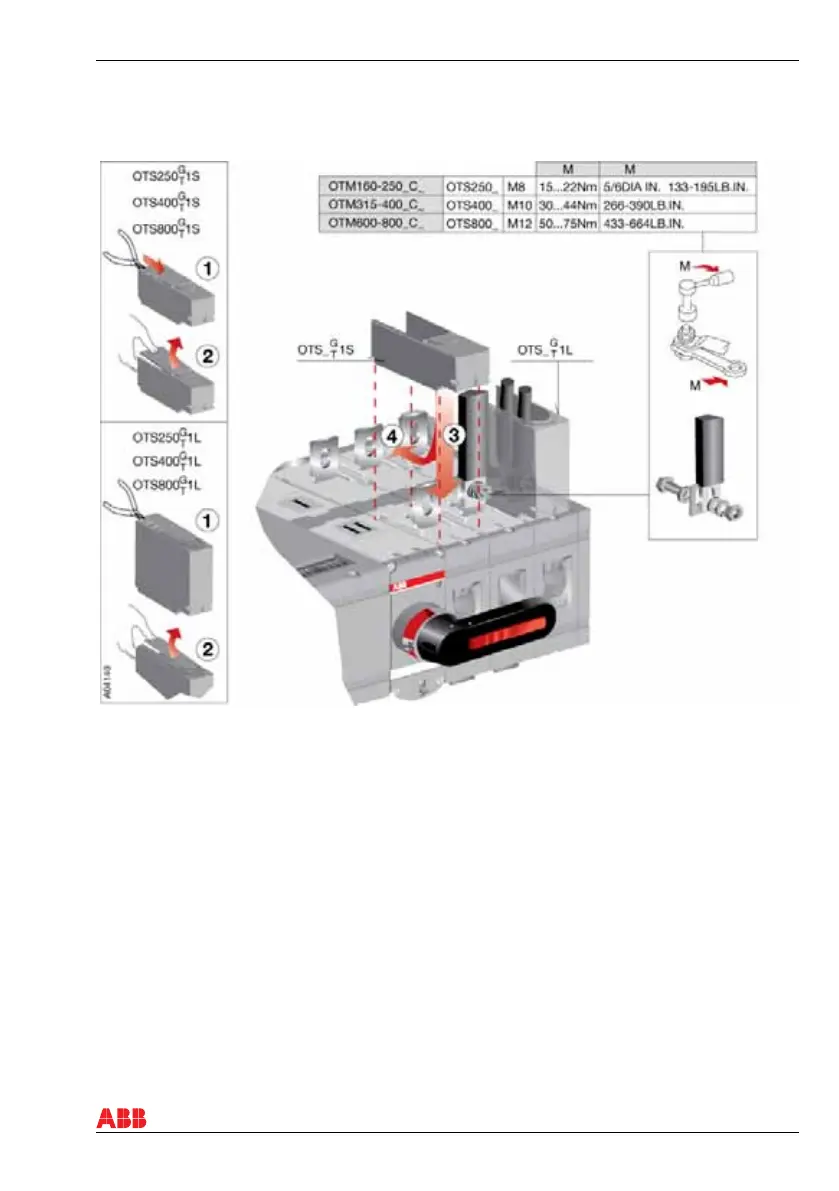

Figure 8.5 Mounting of the terminal shrouds (type OTS_ ) to the motorized change-over switches
OTM160-800E_C_
