MOTORIZED CHANGE-OVER AND TRANSFER SWITCHES, OTM_C
0
I
II
A04132
M
M
Man.
Man.
M
M
Man.
Man.
II
I
M
M
Man.
Man.
M
M
Man.
Man.
The motor operator is protected from overloading by a fuse (F1) under the motor operator.
Only use the same type of fuse that is described on the label close to the fuse.

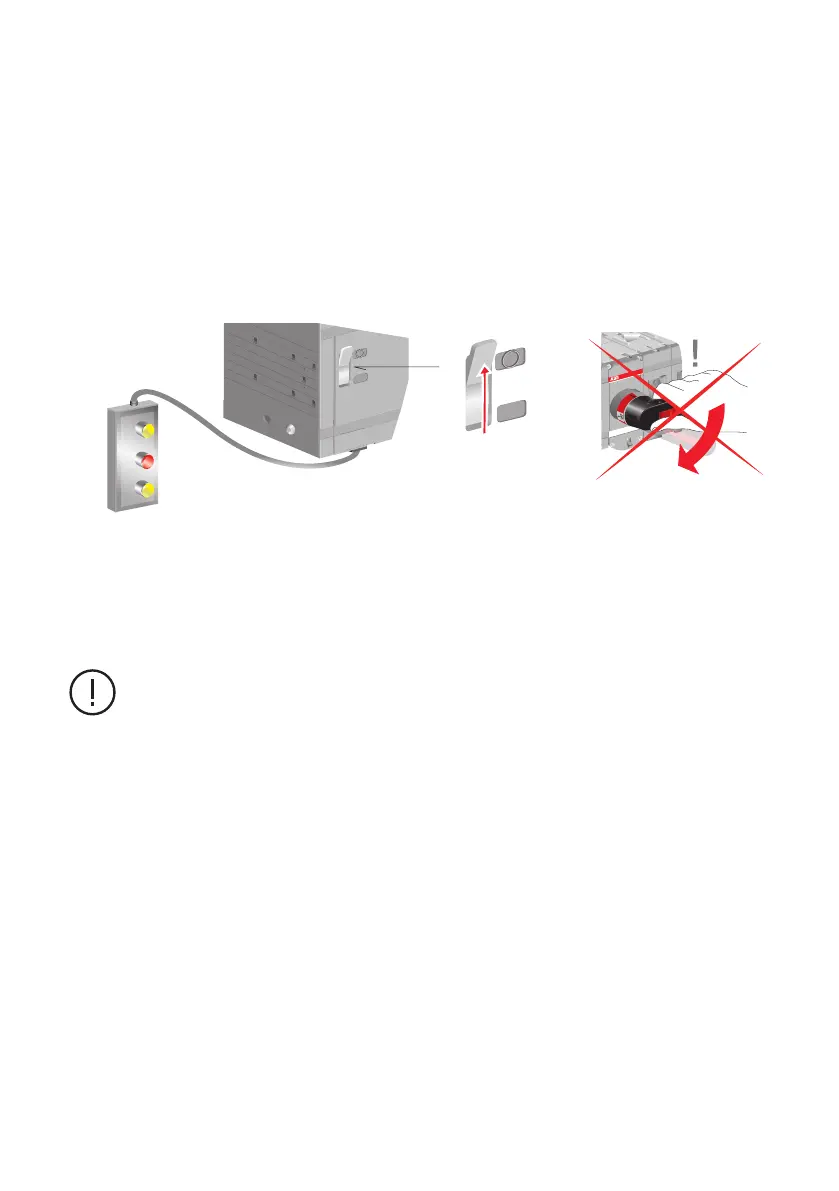

Figure 8.2 Motor/Manual selection switch in the Motor (M) position
3. Operate the motorized change-over switch with the push-buttons or selector switch via impulse
control or continuous control.
2. Turn the Motor/Manual selection switch to the Motor (M) position, see Figure 8.2.
Information
