MOTORIZED CHANGE-OVER AND TRANSFER SWITCHES, OTM_C
10.4 Terminal shrouds OTS_

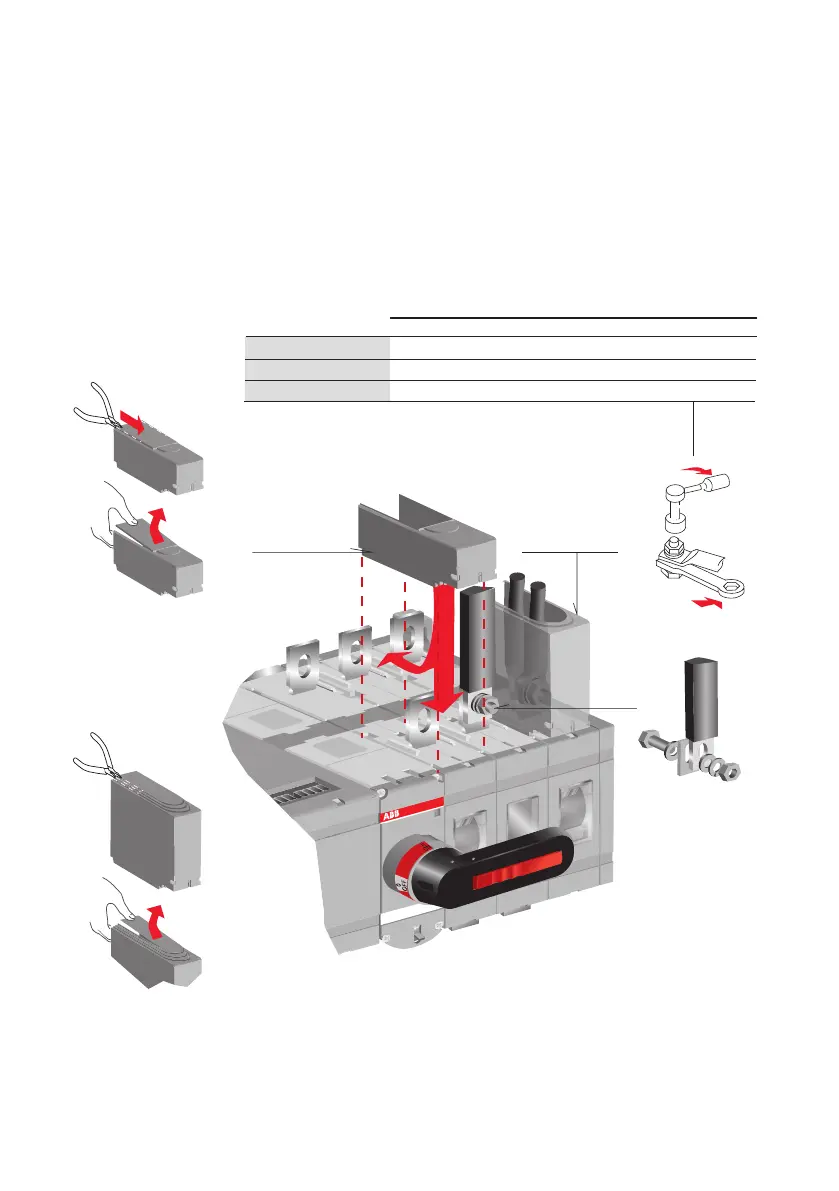

Figure 10.7 Mounting of the terminal shrouds (type OTS_ ) to the motorized change-over switches
OTM160-800E_C_
OTM160-250_C_
OTM315-400_C_
OTM600-800_C_
OTS250_
OTS400_
OTS800_
M8 15...22 Nm 5/6 DIA in 133-195 lb.in
M10 30...44 Nm 266-390 lb.in
M12 50...75 Nm 433-664 lb.in
M
M
M
M
OTS400 1S
G
T
OTS250 1S
G
T
OTS800 1S
G
T
OTS400 1L
G
T
OTS250 1L
G
T
OTS800 1L
G
T
1
2
1
2
II
I
OTS_ 1S
G
T
OTS_ 1L
G
T
4
3
A04140
