MOTORIZED CHANGE-OVER AND TRANSFER SWITCHES, OTM_C
4
3
II
I
A04213
2
1
2
1
M12
50...75 Nm
443-664 lb.in
OTM2000-2500E_C_
M
M
OTM3200E_C_
OTS2500 1S
G
T
OTS4000 1S
G
T
OTS2500 1L
G
T
OTS4000 1L
G
T

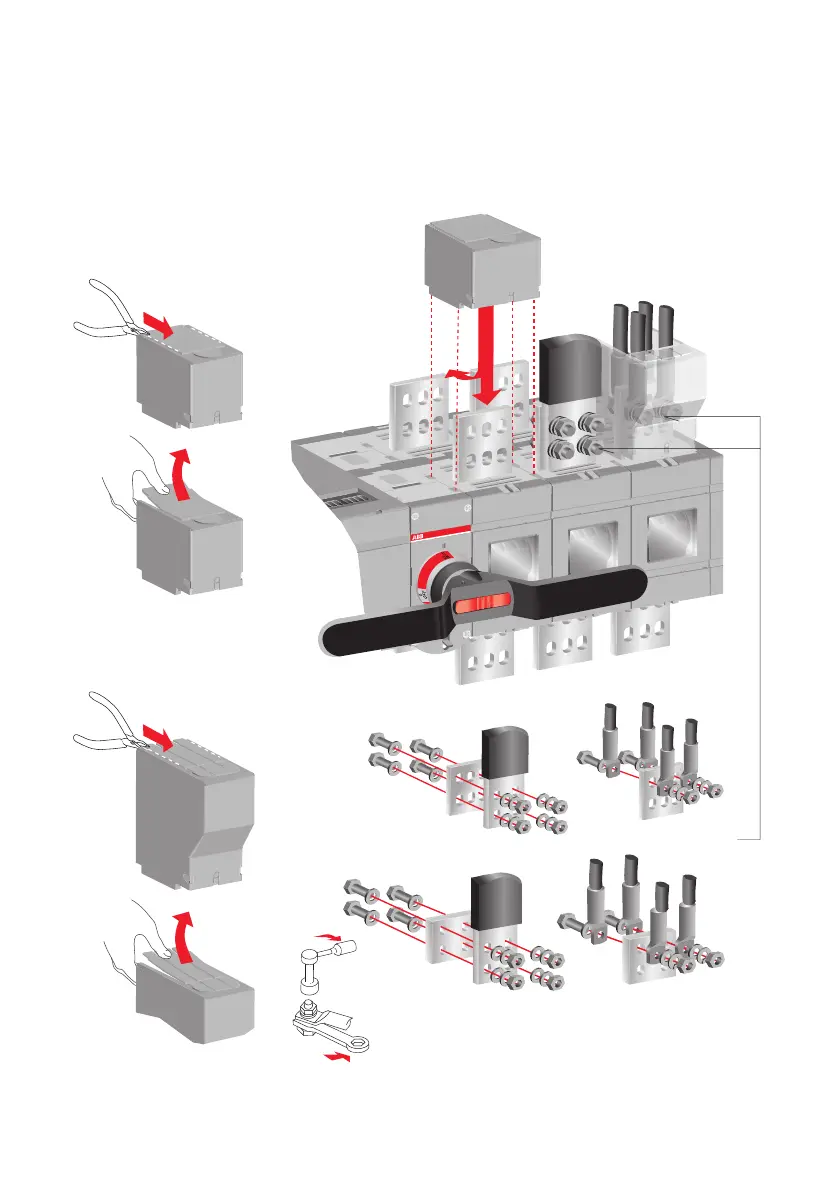

Figure 10.9 Mounting of the terminal shrouds (type OTS_ ) to the motorized change-over switches
OTM2000-2500_C_ , OTM3200_C_
