Assembly Instructions / Power2 500-M
3 Weight and transportation of the low-pressure and the high-pressure
stages / 
© Copyright 2020 ABB. All rights reserved. HZTL455311P0009_EN Rev.A July 2020
3 Weight and transportation of the low-
pressure and the high-pressure stages
Lifting gear with a sufficient load limit must be used for installing the low-pressure and
high-pressure stages. The following weight specifications apply to the heaviest variant pos-
sible. Depending on the specification, the weight specified on the rating plate may be lower
than the standard values specified here.

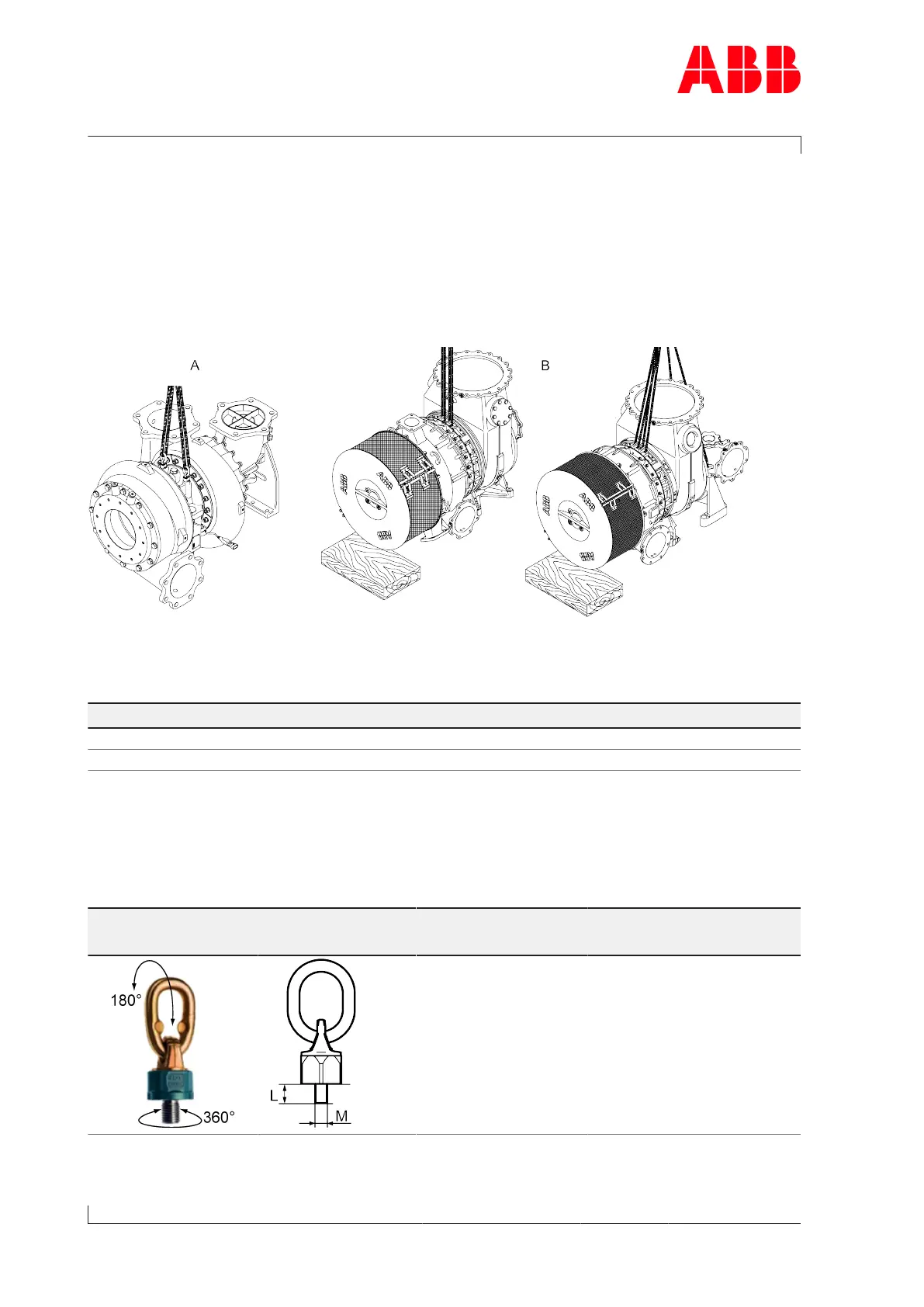

Fig.3: Suspending the low-pressure and high-pressure stages
A High-pressure stage
B Low-pressure stage
Product Weight [kg]
Low-pressure stage 1420
High-pressure stage 750
Table4: Weights of the low-pressure and high-pressure stages
Swivel lifting eyes to be used
Two swivel lifting eyes are required for the safe lifting of loads. These are not included in the
ABB scope of delivery.
Swivel lifting eyes Power2 Thread Length
L
Minimum load
limit
550 HP M16 20 ... 30
mm
400 kg
Table5: Swivel lifting eyes
Page 10 / 29
