Assembly Instructions / Power2 500-M

4 Installing the low-pressure stage / 4.1 Placing the low-pressure

stage on the bracket and aligning

4.1 Placing the low-pressure stage on the bracket

and aligning

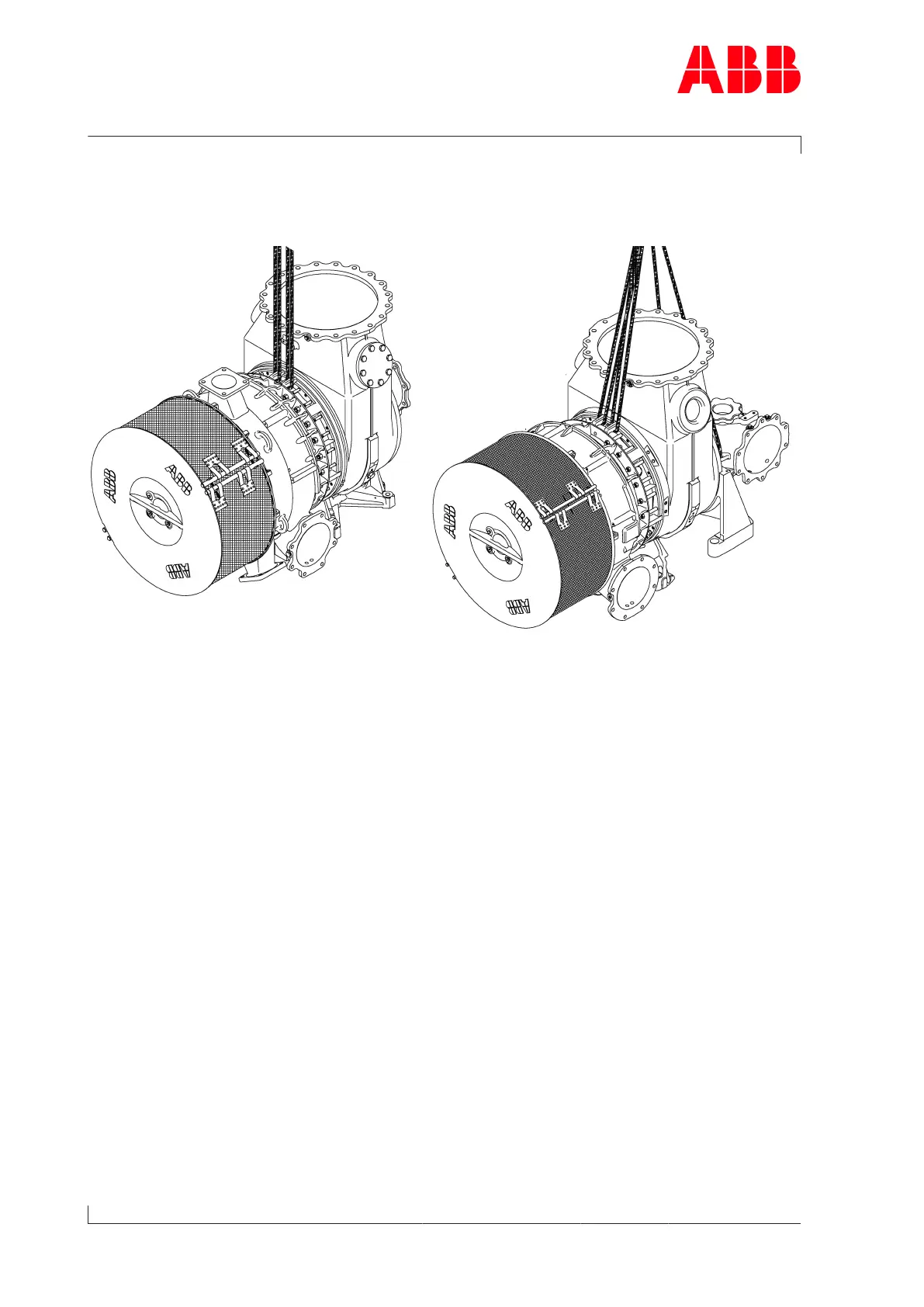

Fig.4: Suspending the low-pressure stage

u Attach one lifting gear each to the two fins of the bearing casing provided for this pur-

pose and, depending on the design, loop one lifting gear around the gas inlet casing.

u Check to make sure that the orifices with the correct diameter are present in the two oil

inlet channels of the bearing casing.

u Adjust the low-pressure stage on the engine.

u Tighten the fixing screws at the foot.

For a one-piece foot, see One-piece foot →13

For a two-piece foot, see Two-piece foot →15
