7 Further information
The Operation Manual must be observed with regard to commissioning, operation, mainten-
ance and ordering spare parts.
Online Operation Manual
The Operation Manual for the low-pressure and high-pressure stage with the relevant serial
number is available online on our website www.abb.com/turbocharging.

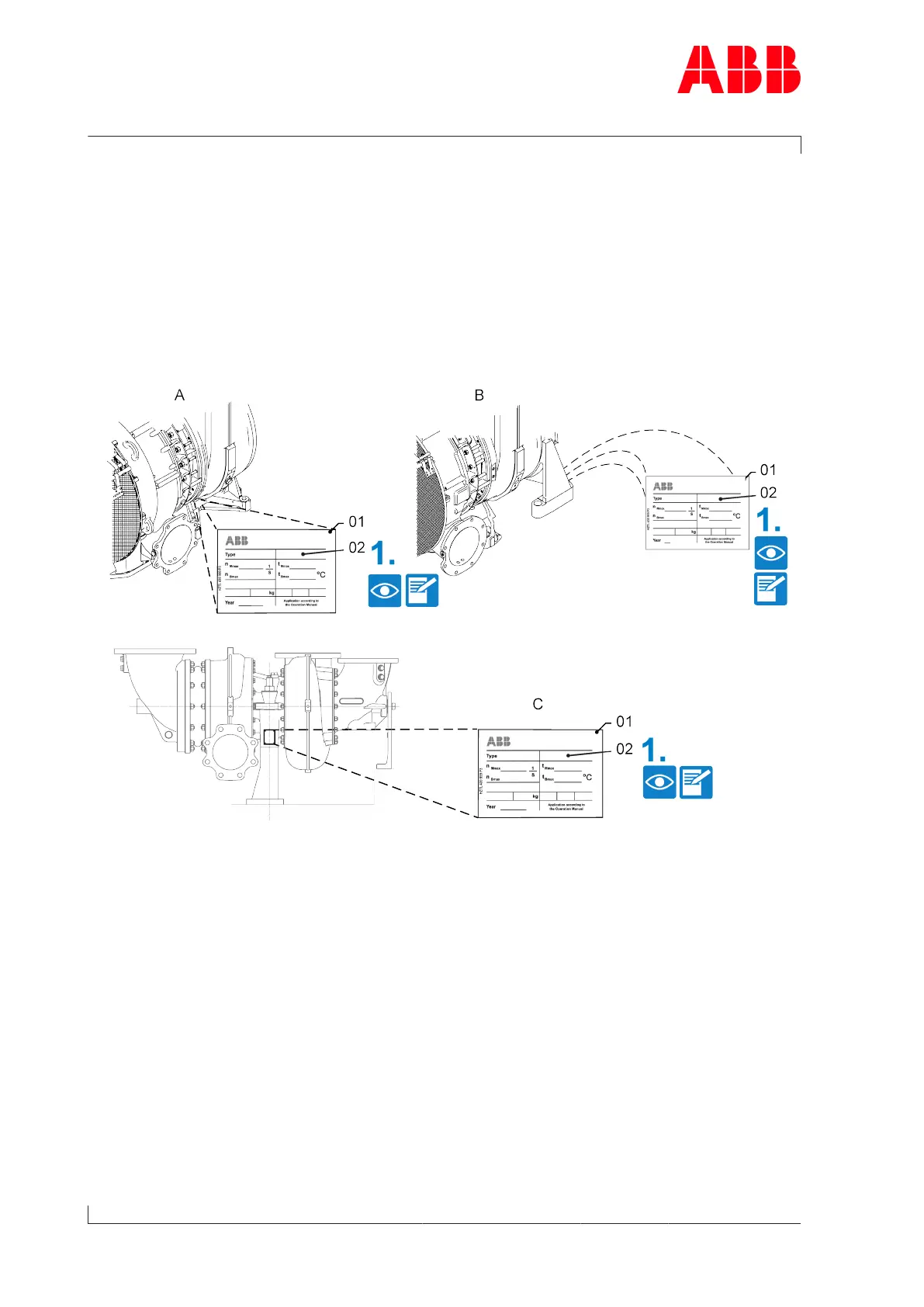

Fig.19: Serial number of the low-pressure and high-pressure stage on the rating plate
A Low-pressure stage One-piece foot
B Low-pressure stage Two-piece foot
C High-pressure stage
1. Read the serial number (02) on the rating plate (01) of the low-pressure and high-pres-
sure stage.
u The Operation Manual can be found online in accordance with the details on the following
page.
