Assembly Instructions / Power2 500-M
5 Installing the high-pressure stage / 5.3 Steps for fastening the high-
pressure stage
© Copyright 2020 ABB. All rights reserved. HZTL455311P0009_EN Rev.A July 2020

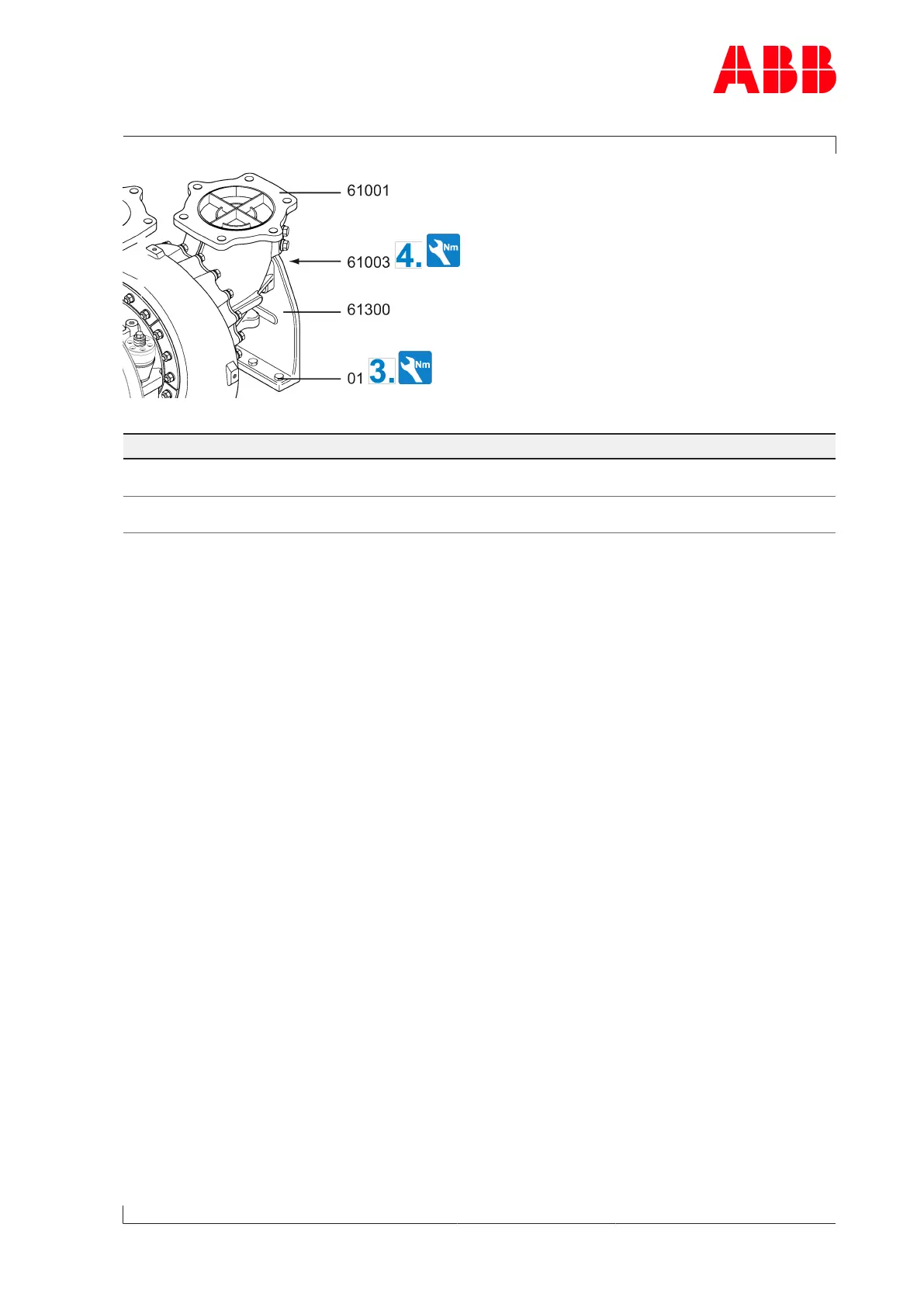

Fig.14: Steps for fastening the high-pressure stage
Part number Thread size and tightening torque
01 M16
260Nm
61003 M20
365Nm
Table16: Tightening torque (01, 61003)
3. Fit the support(61300) using the fixing screws(01). Observe tightening torque.
4. Tighten the screw(61003) of the connection between gas outlet casing(61001) and sup-
port(61300).
u Connect all gas pipes and air lines.
Page 23 / 29
