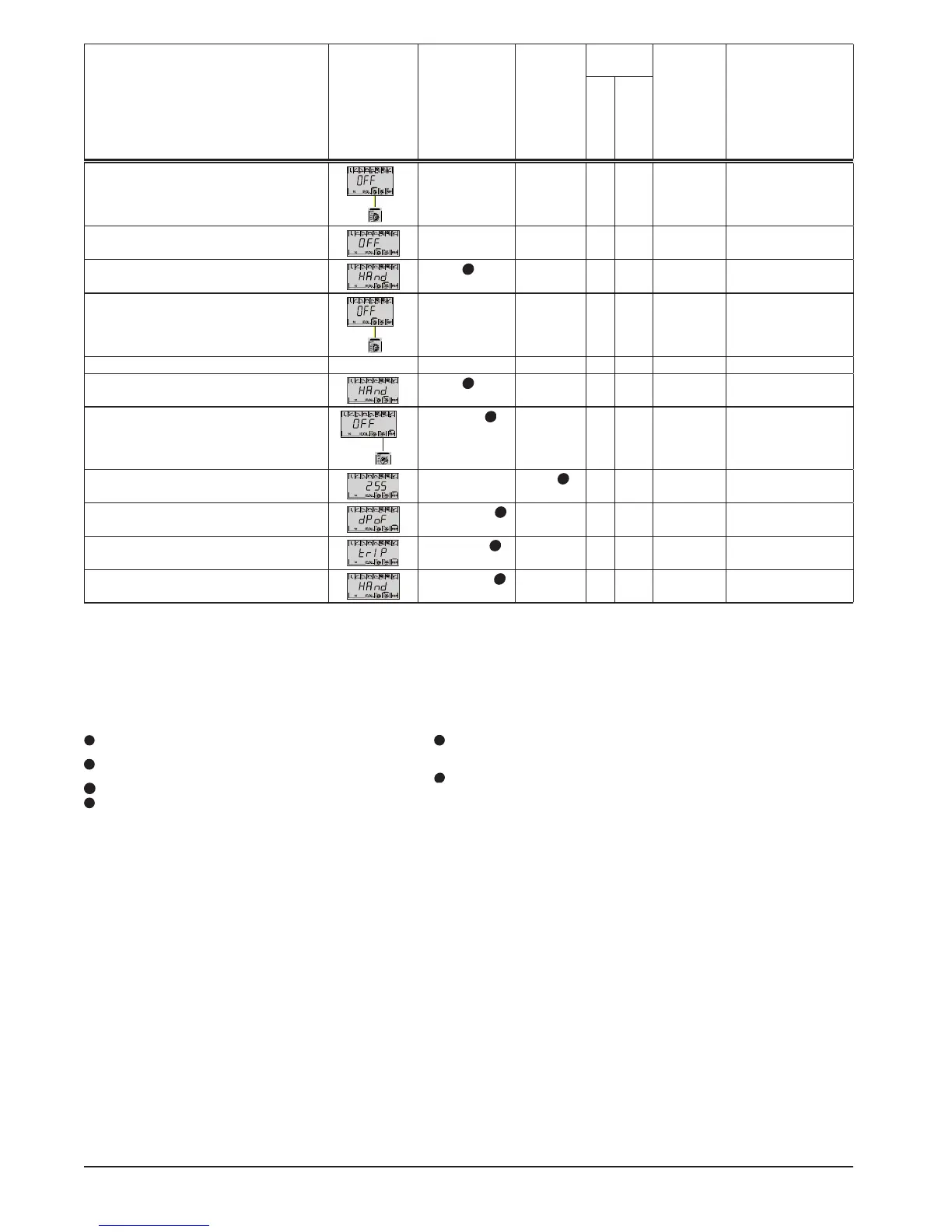

Softstarters Type PSE18...PSE370 Installation and commissioning manual 1SFC132057M020158 Chapter 7
R = Readable
W = Writeable
HAnd = Manual reset of the protection or fault.
Auto = Automatic reset of the protection or fault.
OFF = Fieldbus is not allowed to control the motor.
On = Fieldbus is allowed to control the motor.
255 = Address of the FieldBusPlug will be used.
dPon = Download of parameters from PLC enabled.
dPoF = Download of parameters from PLC blocked.
Accessible only if On is previously selected.
trIP = Trip on fault.
LocC = Local control on fault - hardwire control is possible
Accessible only if trIP is previously selected.
HAnd = Manual reset of the protection or fault.
Auto = Automatic reset of the protection or fault.
1
2
4
5
6
3
Underload Protection T
Level
OFF W W T
Type of operation
1
HAnd W W T
Locked Rotor
Protection
T
Level OFF W W T
Type of operation
1
HAnd W W T
Fieldbus Control
1SFC13235F0001
OFF/On
2
OFF W R T
Fieldbus address
255
255
3
W R T
Download Parameter
dPoF/dPon
4
dPon W R T
Fieldbus Operation When Fault
LocC/trIP
5
LocC W R T
Type of Operation
HAnd/Auto
6
HAnd W R T
Description Display
symbol
Setting range Default
value
Access
from
Parameter transfer with External Keypad
Actual setting
HMI Fieldbus
T = Will be transferred (uploaded/downloaded)
