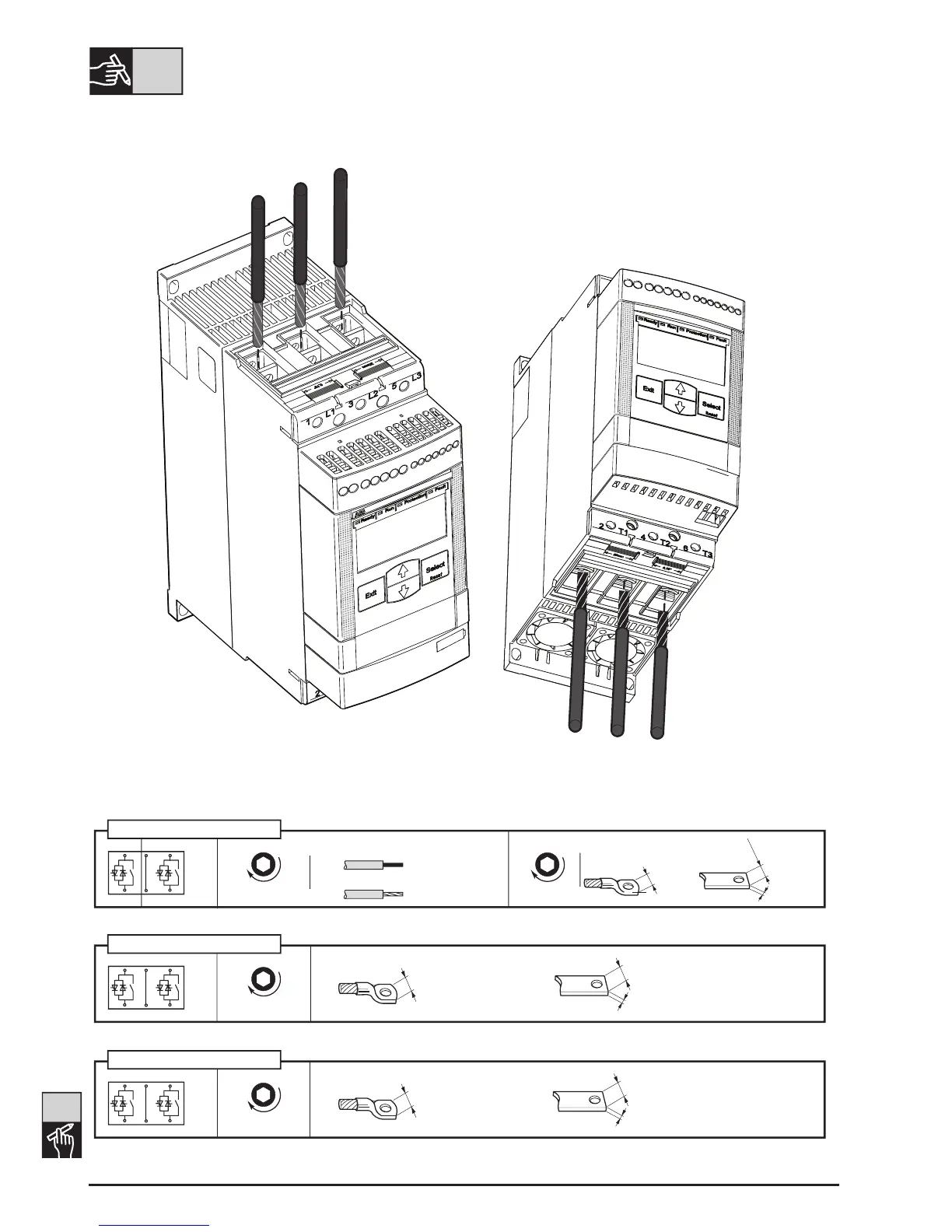

182 Softstarters Type PSE18...PSE370 User Manual short form 1SFC132059M9901
1SFC132241F0001
2T1 4T2 6T3
1L1
3L2
5L3
08
1SFC13275F0001
M8
10 Nm - 88 lb.in
PSE18...105
1L1
2T1 4T2 6T3
3L2 5L3
max
22 mm
(0.866 in)
max
20 mm
(0.787 in)
max
5 mm
(0.197 in)
M8
max 24 mm (0.945 in)
max 22 mm (0.866 in)
max 8 mm (0.315 in)
18 Nm - 160 lb.in
PSE142...170
1L1
2T1 4T2 6T3
3L2 5L3
M10
max 30 mm (1.181 in)
max 30 mm (1.181 in)
max 10 mm (0.394 in)
28 Nm - 240 lb.in
PSE210...370
1L1
2T1 4T2 6T3
3L2 5L3
2,5 .. 70 mm
2
2 x 2,5 .. 70 mm
2
2,5 .. 70 mm
2
AWG 2/0 ... 12
M6
9 Nm - 80 lb.in
Using connection module Using connection bars
