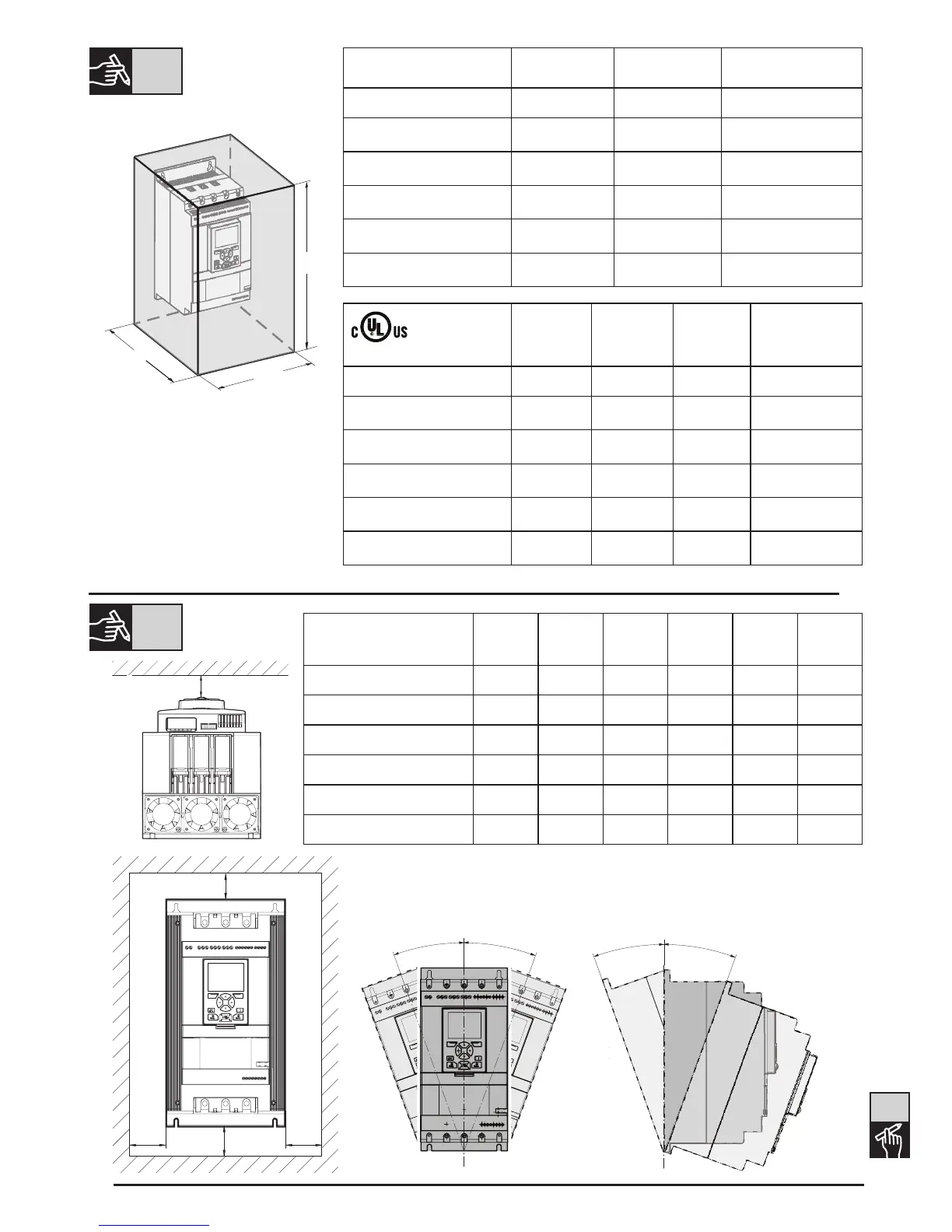

ABB PSTX Series User Manual

Softstarters Type PSTX30...PSTX1250 User Manual short form 1SFC132082M9901 247
A
(mm)
B
(mm)
C
(mm)
A
(in)
B
(in)
C
(in)
PSTX30...105 100 10 20 3.94 0.39 0.787
PSTX142...170 100 10 20 3.94 0.39 0.787
PSTX210...370 100 10 20 3.94 0.39 0.787
PSTX470...570 150 15 20 5.905 0.590 0.787
PSTX720...840 150 15 20 5.905 0.590 0.787
PSTX1050...1250 150 15 20 5.905 0.590 0.787
IEC
W (mm) H (mm) D (mm)
PSTX30...105 508 508 305
PSTX142...170 508 508 305
PSTX210...370 762 914 305
PSTX470...570 914 1219 405
PSTX720...840 914 1524 405
PSTX1050...1250 914 1524 405
W (in) H (in) D (in)
Minimum
number of
latches
PSTX30...105 20 20 10 2
PSTX142...170 20 20 12 2
PSTX210...370 30 24 12 7
PSTX470...570 36 48 16 8
PSTX720...840 36 60 16 8
PSTX1050...1250 36 60 16 8
H
W
D
1
1SFB536268G1010_014
1SFC132082M9901
BB
A
A
3
1SFB536268G1010_007
1SFC132082M9901
2
1SFB536268G1010_044
30
O
30
O
30
O
30
O
1SFC132082M9901
03
04
C
1SFC132082M990
1

ABB PSTX Series Specifications

General

Type	Softstarter
Rated operational voltage	208-690 V AC
Rated operational current	30-1250 A
Number of phases	3
Operating temperature	-25 to +60°C
Operating frequency	50/60 Hz
Overload protection	Yes
Protection class	IP20
Communication protocols	Modbus RTU, Profibus
Starting method	Voltage ramp, current limit
Stopping method	soft stop
Bypass contactor	Built-in
Display	graphical display
Rated control supply voltage	100-240V AC
