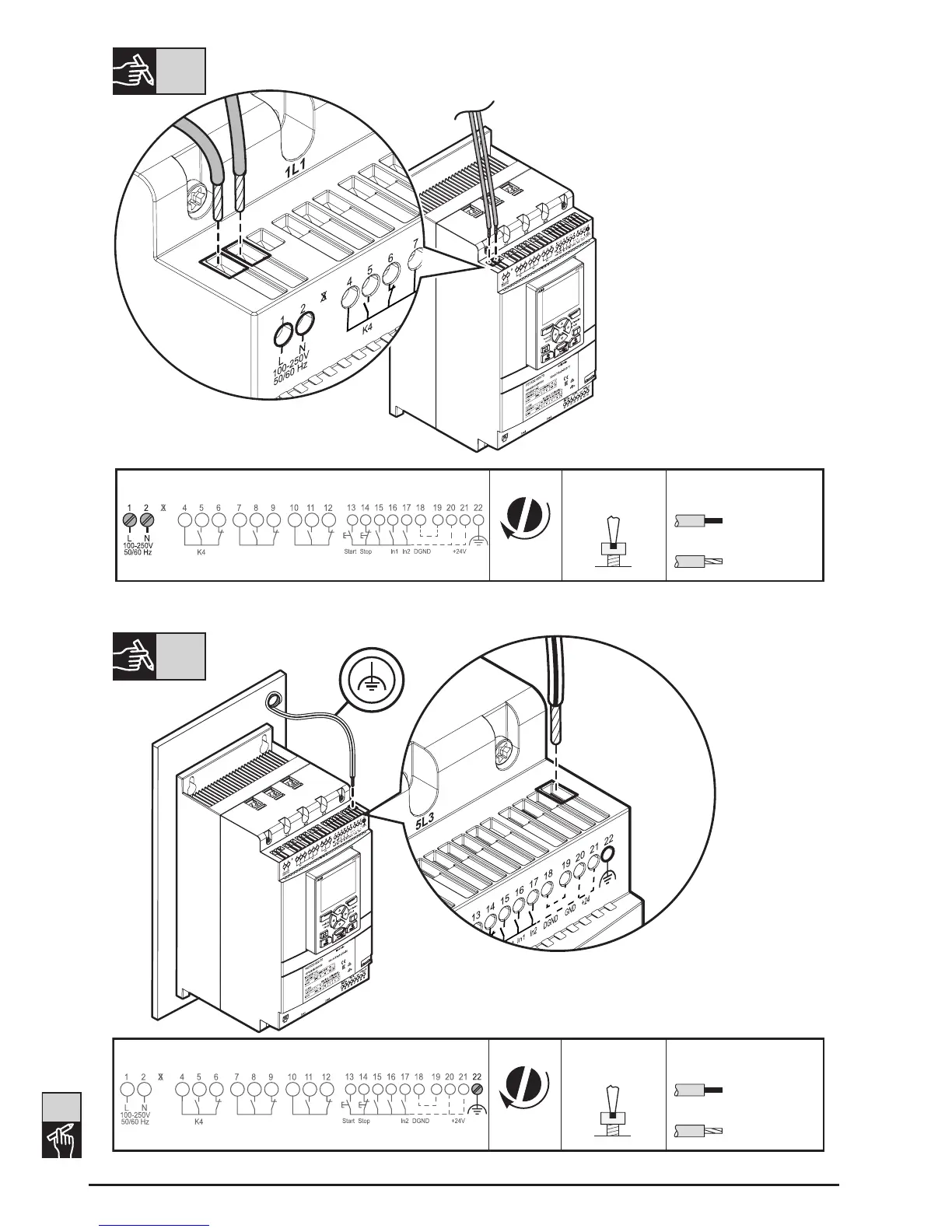

ABB PSTX Series - Control Terminal Connections (1 L1); Control Terminal Connections (5 L3)

250 Softstarters Type PSTX30...PSTX1250 User Manual short form 1SFC132082M9901
1SFC132082M9901
0,2 .. 4 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 4 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
1SFC132082M9901
M3,5
L
100-250V
50/60 Hz K4 K5 K6
StartStopIn0 In1In2 GND +24V
N
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
1SFC132082M9901
M3
L
100-250V
50/60 Hz K4 K5 K6
StartStopIn0 In1In2 DGND GND +24V
N
