ABB PSTX250 - Page 45

1SFC132081M0201 | Installation and commissioning manual | Connection 45
5.1.2.6 Programmable output relay - K4,
terminals 4, 5 and 6
See chapter 7.14 Inputs/outputs to set the function of
the output relay.
Default: Run
Connect the cables to terminal 4, 5 and 6.
See Figure 5.17.
Recommended to control line contactor.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3,5
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In0 In1 In2 GND +24V
N
1SFC132081M0201
5.1.2.7 Programmable output relay - K5,
terminals 7, 8 and 9
See chapter 7.14 Inputs/outputs to set the function of
the output relay.
Default: Top of ramp
Connect the cables to terminal 7, 8 and 9.
See Figure 5.18.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3,5
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In0 In1 In2 GND +24V
N
1SFC132081M0201
5.1.2.8 Programmable output relay - K6,
terminals 10, 11 and 12
See chapter 7.14 Inputs/outputs to set the function of
the output relay.
Default: Event
Connect the cables to terminal 10, 11 and 12.
See Figure 5.19.
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In0 In1 In2 GND +24V
N
1SFC132081M0201

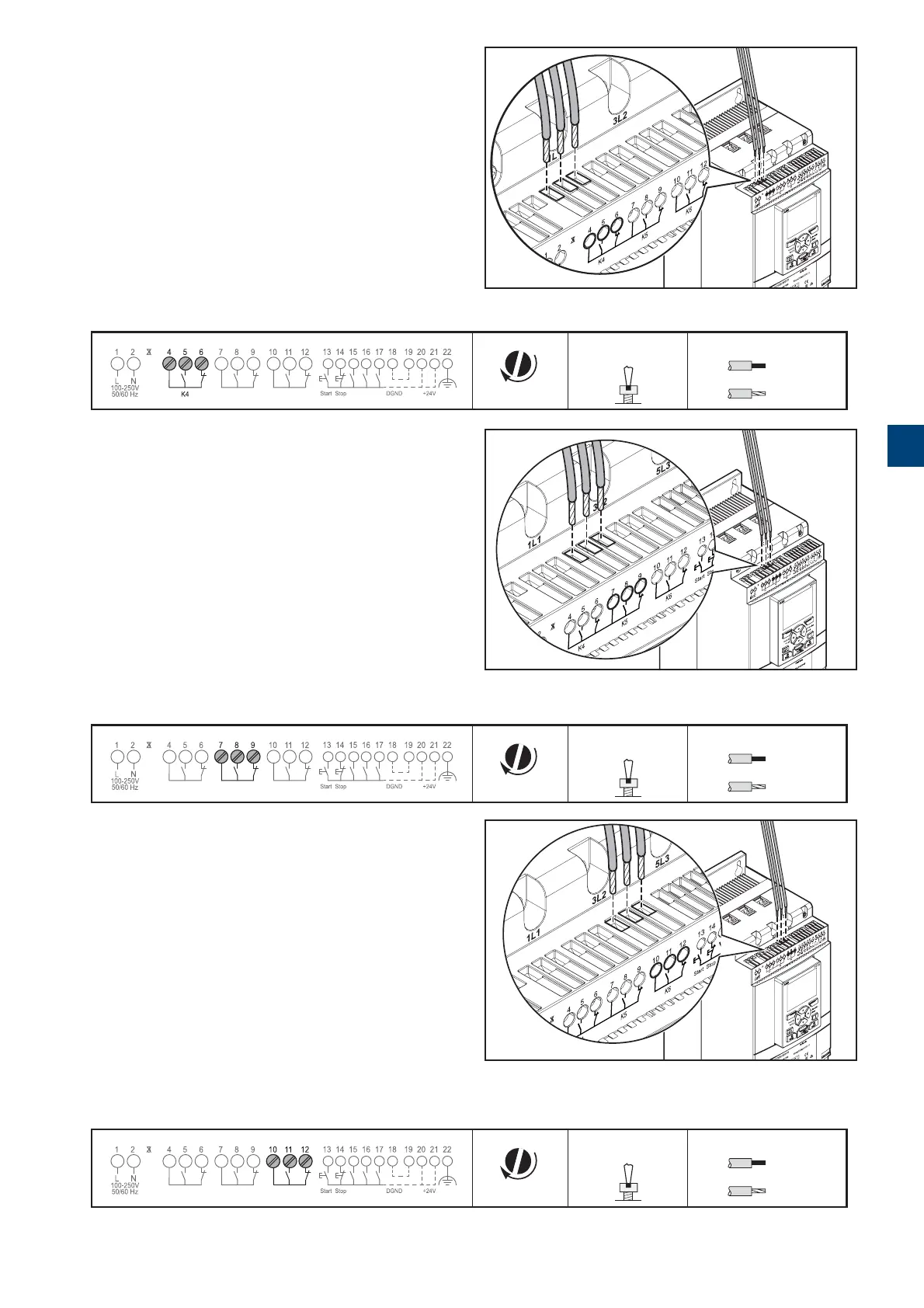

Figure 5.17
Programmable output relay K4, terminals4,5and6
1SFC132081M0201
Figure 5.18
Programmable output relay K5, terminals7,8and9
1SFC132081M0201
Figure 5.19
Programmable output relay K6, terminals10,11and12
1SFC132081M0201
5
