ABB PSTX250 - Page 44

44 Connection | Installation and commissioning manual | 1SFC132081M0201

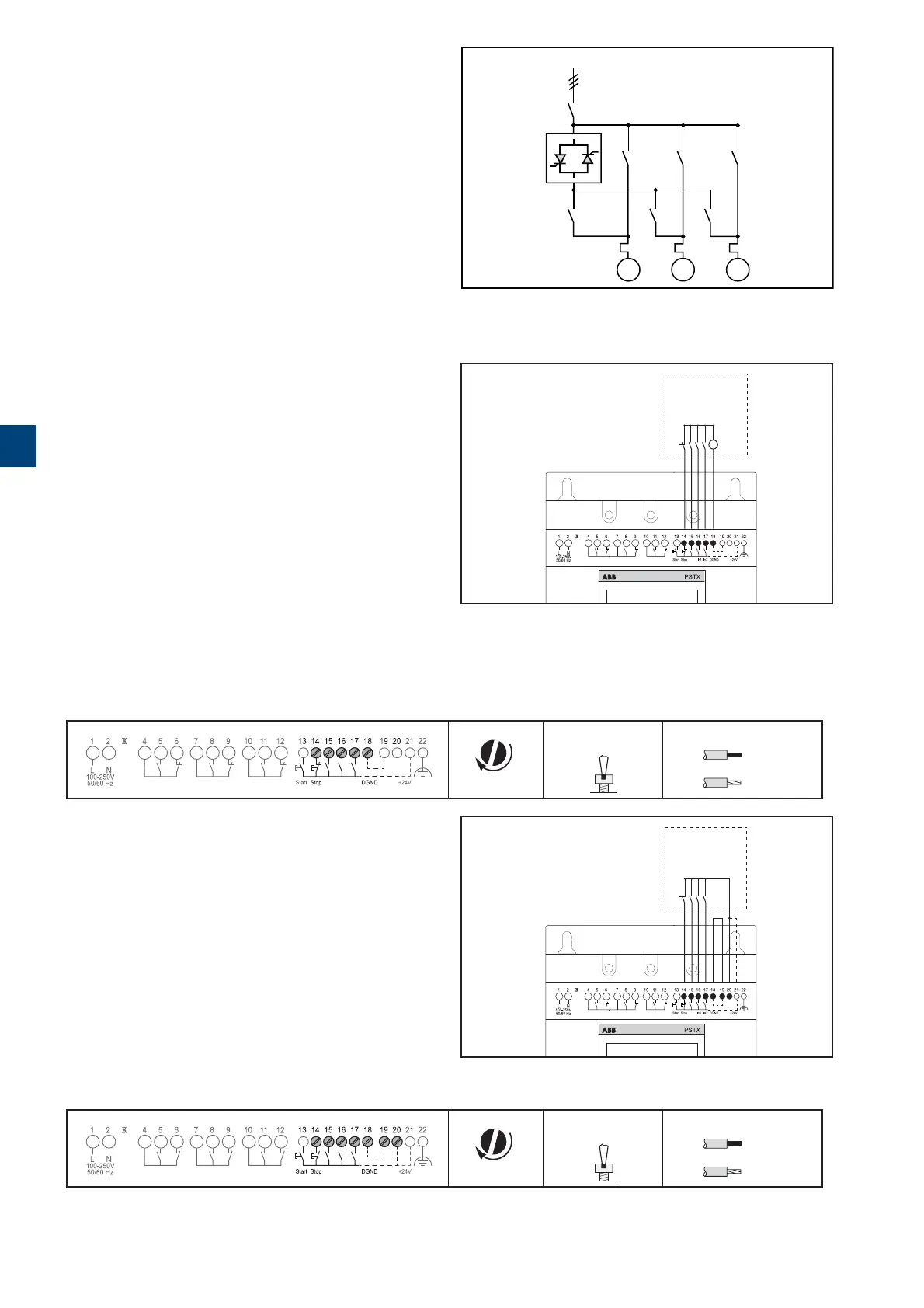

5.1.2.5 Programmable inputs (Sequence start)
The Softstarter can start up to 3 different motors used
in different applications with different parameter sets.
The parameter set is chosen through input signals to the
Softstarter.
See Figure 5.14, Sequential start of motors using a
Softstarter.
If the Softstarter trips for any reason, and the trip must
stop the motor, all motors are stopped.
When you use sequence start, see Figure 5.15 or Figure
5.16 for the connection.
The start command (terminal 13, 14, 16 and 17) must be
maintained during operation, otherwise a direct stop is
done.
Soft stop can only be done for the motor currently fed by
the Softstarter, by giving a stop command (terminal 14).
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In0 In1 In2 GND +24V
N
1SFC132081M0201
Tightening torques and cable dimensions.
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
0,2 .. 2,5 mm
2
2x0,2 .. 1,5 mm
2
AWG 12 ... 24
0,5 Nm
4,3 lb.in
3,5 x 0,6 mm
(0.138 x 0.024 in)
M3
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In0 In1 In2 GND +24V
N
1SFC132081M0201
KM 1 Main contactor
K 25, 27, 29 Starting contactor
K 26, 28, 30 Run contactor
FR 1, 2, 3 Overload relay
Q 1 Softstarter
Figure 5.14
Sequential start of motors using a Softstarter
1SFC132081M0201
M
MM
KM 1
Q 1
FR 1 FR 2
FR 3
K 25 K 27 K 29
K 26
K 28 K 30
Figure 5.15
External control voltage
1ˢᵗ Start seq. Stop 2ⁿᵈ Start seq. 3ʳᵈ Start seq.
PSTX
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In1 In2 DGND +24V
N
DC
+
In0
GND
1SFC132081M0201
-
Figure 5.16
Internal control voltage
1ˢᵗ Start seq. Stop 2ⁿᵈ Start seq. 3ʳᵈ Start seq.
PSTX
L
100-250V
50/60 Hz K4 K5 K6
Start Stop In1 In2 DGND +24V
N
In0
GND
1SFC132081M0201
5
