1SFC132081M0201 | Installation and commissioning manual | Human machine interface (HMI) 67
6.4.4 Backup
Path in menu:
Menu
XBackup handling
For navigation, see Figure 6.30.
You can use the movable keypad to transfer parameters
from one Softstarter to another during commissioning.
Transfer of parameters
To transfer (or copy) parameters from one Softstarter to
another, connect the keypad to the selected Softstarter
and follow the instructions in chapter 6.4.4.1 Create
backup and
chapter 6.4.4.2 Uploading of parameters below:
6.4.4.1 Create backup
1. Push “Select” to enter the Backupmenu.
2. Push
“Create backup” to create a backup.
3. The download of parameters shows as in
Figure 6.31. The name of the backup file shows as
the day, month and year it was created.
Replace backup
The Softstarter can store 2 backups. Use the Navigation
keys to select an earlier backup and push
“Replace”,
to replace a backup.
A backup does not change the ID and Motor rated
current Ie.
6.4.4.2 Uploading of parameters
1. When you complete the download of parameters,
remove the HMI from the Softstarter.
2. Connect the HMI to the Softstarter that must
receive the backup.
3. Enter the Backup menu and use the Navigation
keys to select the backup.
4. Push
“Select” for the upload of the
parameters. This shows as in Figure 6.32.
Create backup
01.11.2014
MENU
Parameters
Assistants
Motor jog
Pump cleaning
Event log
Backup handling
System info
Settings

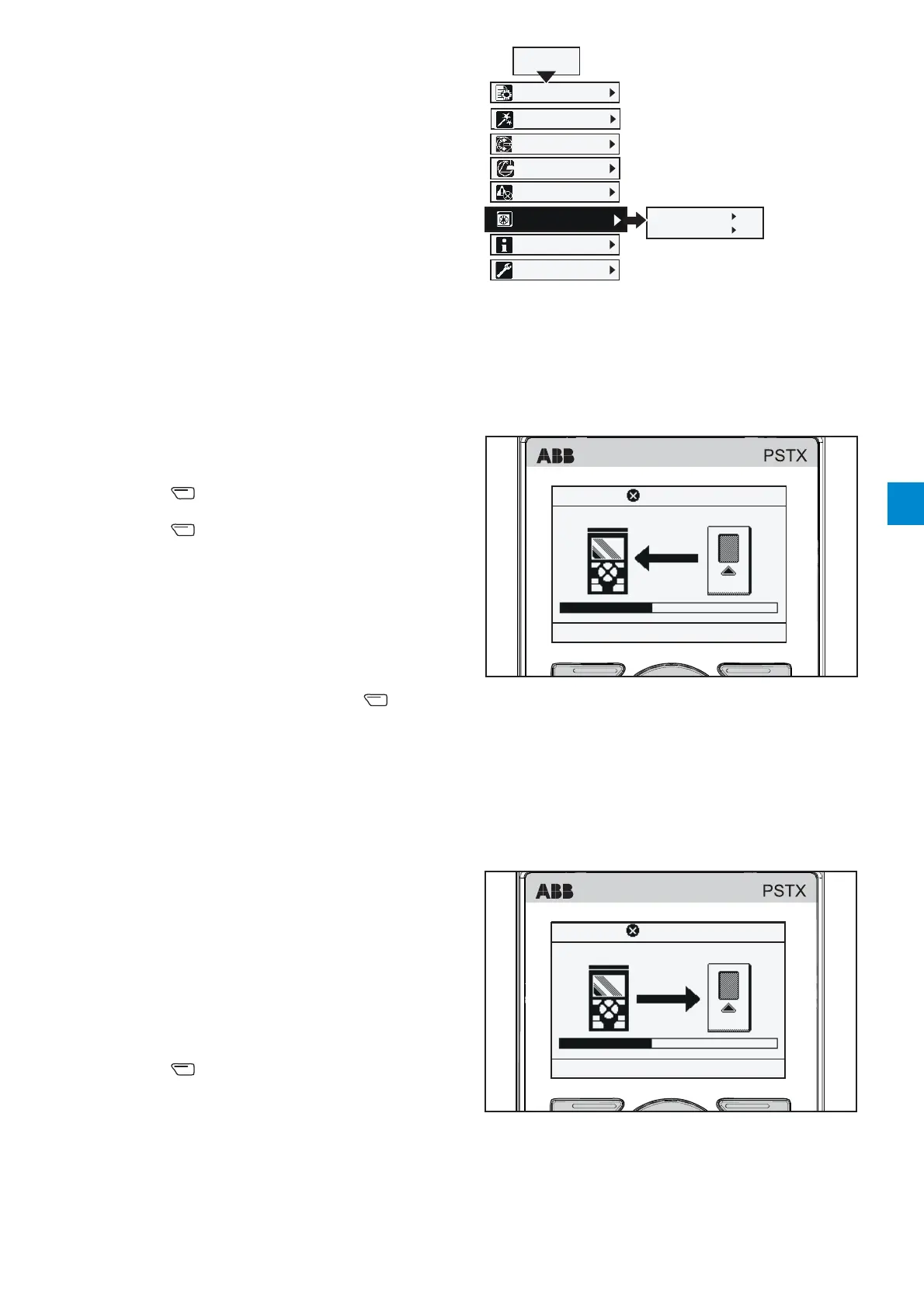

Figure 6.30
Backups handling
Figure 6.31
Downloading parameters
1SFC132081M0201
Local PSTX HMI 0
Back up parameters
Cancel 14:30
Figure 6.32
Uploading parameters
1SFC132081M0201
Local PSTX HMI 0
Back up parameters
Cancel 14:30
