54 Human machine interface (HMI) | Installation and commissioning manual | 1SFC132081M0201
6.1.3 Navigation screen
With the keypad, you can change the settings for each
item or as a selection of default parameters for different
applications. The default set of parameters is stored in
the unit for a possible reset to default values. When the
fieldbus communication is selected, you can change
parameters from this interface.
Push “Menu“ to go to the menu and then use
and
to navigate. Push the “Select“ to make your
selection.
See Figure 6.5.
6.1.3.1 Edit parameter values
The numerical setting
Use the numerical setting to change a numerical value.
Use
and on the Navigation keys to select the
number, the selected number is highlighted black. Then
Push
or to change the value of the selected
number. Push
“Save” to save.
See Figure 6.6.
On/off switch
Use or o navigate or to change the value of
the selected switch, (1=on, 0=off).
Push
“Save” to save.
See Figure 6.7.
Selection list
Use the Navigation keys to navigate up and down in the
lists. The selected option is highlighted black. Push
“Save” to save.
See Figure 6.8.

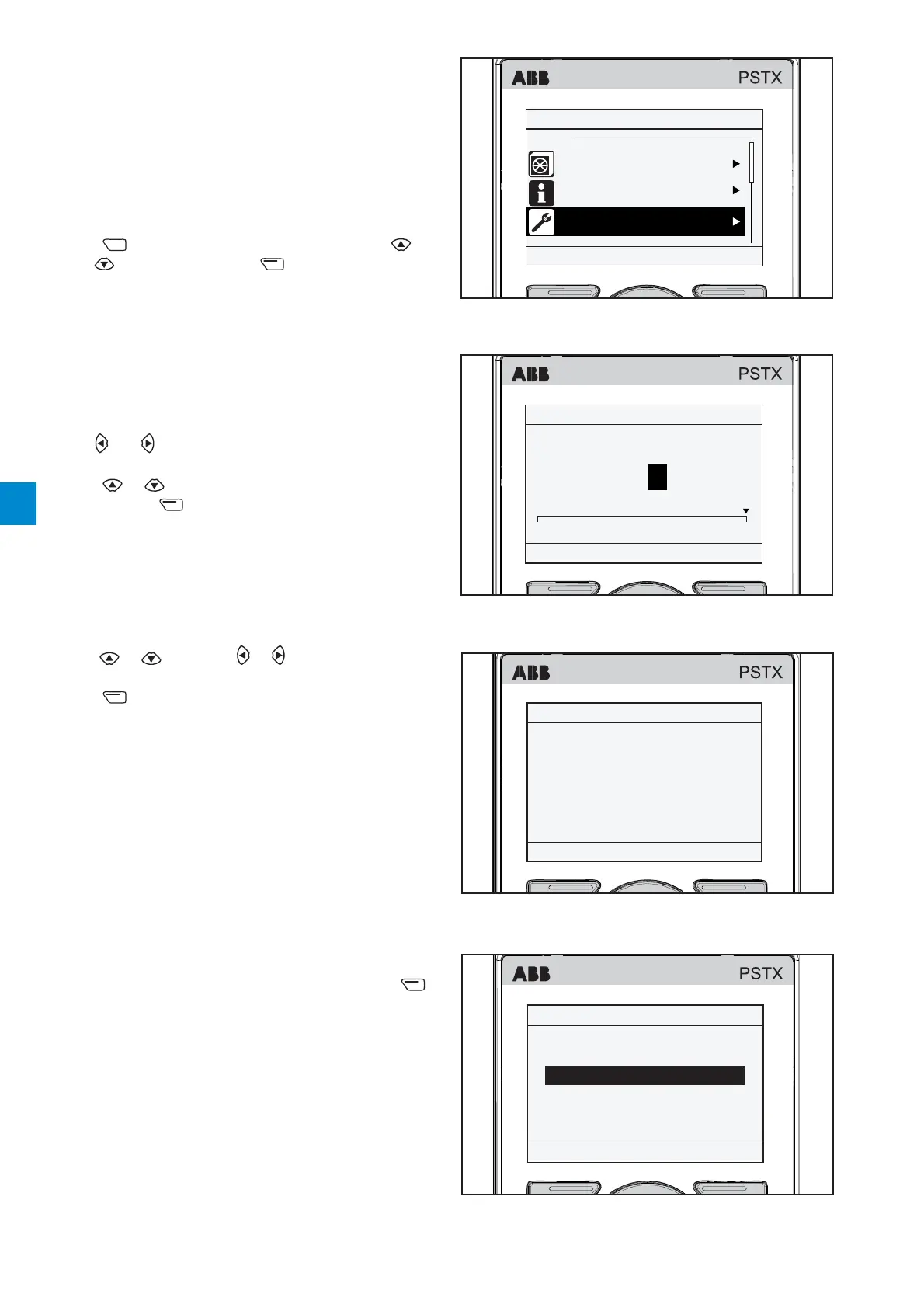

Figure 6.5
Navigation screen
1SFC132081M0201
Local
PSTX30
Menu
Backup handling
System info
Settings
Exit 12:00
Select
Figure 6.6
Numerical setting
1SFC132081M0201
Local
PSTX30
Motor rated current Ie
30.0 A
0.0 30.0
Cancel
12:00 Save
Figure 6.7
Switch setting
1SFC132081M0201
Local
PSTX30
Shunt fault event mask
1
0
0
0
0
Event group 0
Event group 1
Event group 2
Event group 3
Event group 4
Cancel
12:00 Save
Figure 6.8
Selection list
1SFC132081M0201
Local
PSTX30
Current limit type
Off
Normal
Dual
Ramp
Cancel 12:00 Save
