1SFC132081M0201 | Installation and commissioning manual | Human machine interface (HMI) 55
6.1.4 Configure HMI
This chapter shows some examples of parameters that
you can set on the PSTX Softstarter.
Some of the service parameters in 28 Service are
protected by a service code. To change the parameters
you need to have protected by a service code, see
chapter 6.3.4 Configure HMI.
6.1.4.1 Changing the Rated motor current (Setting
Ie)
Path in menu:
Menu
XParametersXComplete list X01 Motor rated
current Ie
For more information about Motor Current Ie, see
chapter 7 Functions.
1. The Home view is the top level. Push
“Menu”
to enter the menu. The screen now appears as in
Figure 6.9.
2. Push
“Select“ to select Parameters menu.
3. Push
“Select“ to select Complete list.
4. Push
“Select“ to select 01 Motor rated
current Ie.
5. Push
“Edit“ to edit the rated current in Motor
rated current Ie.
6. Use
and to select number, the current
selected number is highlighted black. Then push
or to change the value of the selected
number. Save the new setting by selecting
“Save”.
See Figure 6.9. If you want to quit, you select
“Cancel”.

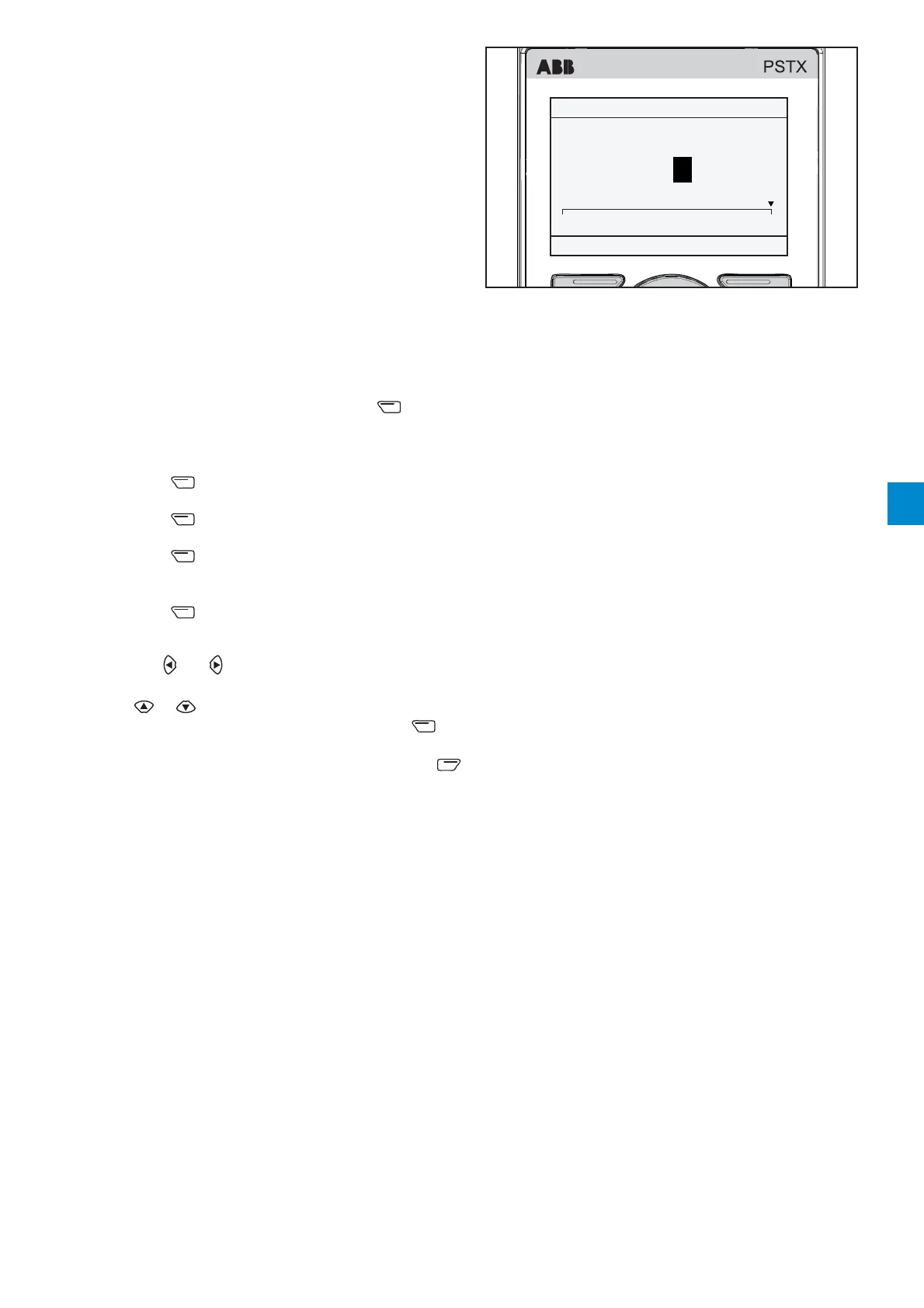

Figure 6.9
Motor current Ie
1SFC132081M0201
Local
PSTX30
Motor rated current Ie
30.0 A
0.0 30.0
Cancel
12:00 Save
