SETTING THE INVERTER ID ,BAUD RATE & PROTOCOL
Enter Network Section and Select RS485 and set Baud Rate, Node Address and Protocol
Please Note
1) If you connect multiple inverters via RS485, set the same baud rate on each inverter.
2) The inverter ID is used to identify the inverter in a RS485 connection
a. Set a different inverter ID for each inverter in the PV plant. Otherwise, the inverters cannot be correctly
identified.
b. On the last inverter in the RS485 connection, switch on the RS485 termination resistor.
Id- As required/Mentioned on TrackSo
Baud Rate-9600
Protocol- Modbus Sunspec Server

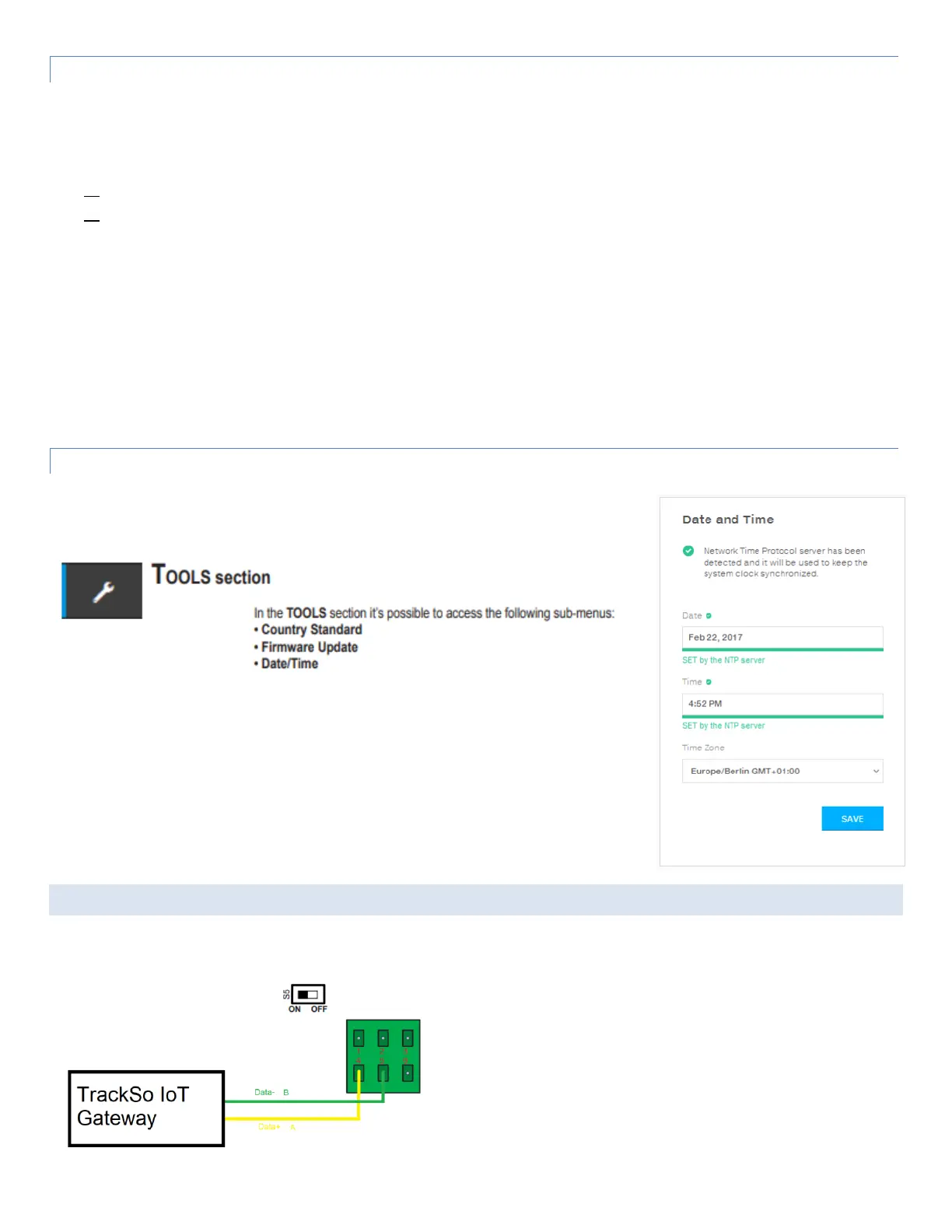

SET DATE & TIME OF INVERTER
For a precise calculation of the statistics in the inverter itself and in a monitoring
system, date and time have to be correct.
Date and Time
In the Date and Time sub-menu it’s possible to sets the date, time and time zone.
The inverter will propose these fields when the time protocol is available). When it’s
not possible for the inverter to detect the time protocol, these fields have to be
manually entered.
Communication Card Settings
Single Inverter
Set the Correct Date & Time
S5 – ON
When connecting a single inverter to the monitoring
system, activate the communication line resistance
terminal by setting the switch (to the ON position)
To Next Page
