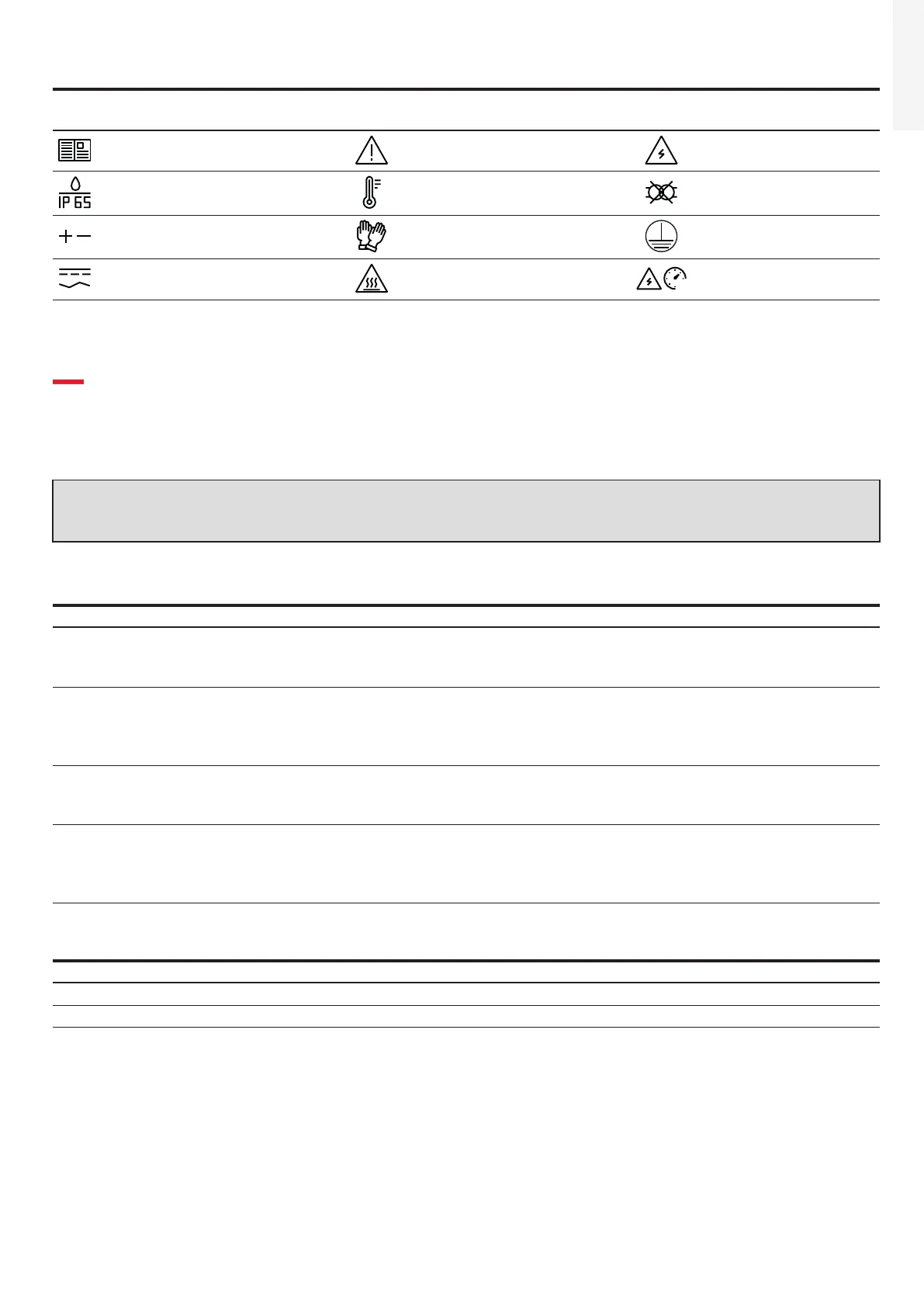

In the manual and/or in some cases on the equipment, the danger or hazard zones are indicated with
signs, labels, symbols or icons.
Always refer to instruction
manual
General warning
Important safety information
Hazardous voltage
Protection rating of equipment Temperature range
Without isolation
transformer
Positive pole and negative pole
of the input voltage (DC)
Always use safety clothing
and/or personal safety devices
Point of connection for
grounding protection
Direct and alternating currents,
respectively
Hot surfaces
Time need to discharge
stored energy
3. Models and range of equipment
NOTE – D The choice of the inverter model must be made by a qualified technician who knows about the
installation conditions, the devices that will be installed outside the inverter and possible integration
with an existing system.
Wiring box
Model Number Description
WB-S-PVS-175-TL
• Input with 24 quick fit connectors pairs (2 each MPPT) (18)
• DC side varistor
• DC disconnect switches (19)
WB-S2-PVS-175-TL
• Input with 24 quick fit connectors pairs (2 each MPPT) (18)
• DC side varistor
• DC disconnect switches (19)
• AC disconnect switch (09)
WB-SX-PVS-175-TL
• Input with 24 quick fit connectors pairs (2 each MPPT) (18)
• SPD Type 2 Pluggable Cartridges (DC & AC) (24) (25)
• DC disconnect switches (19)
WB-SX2-PVS-175-TL
• Input with 24 quick fit connectors pairs (2 each MPPT) (18)
• SPD Type 2 Pluggable Cartridges (DC & AC) (24) (25)
• DC disconnect switches (19)
• AC disconnect switch (09)
Power Module
Model Number Description
PVS-175-TL-POWER-MODULE-1 Inverter section / power module with precharge
PVS-175-TL-POWER-MODULE-2 Inverter section / power module without precharge
