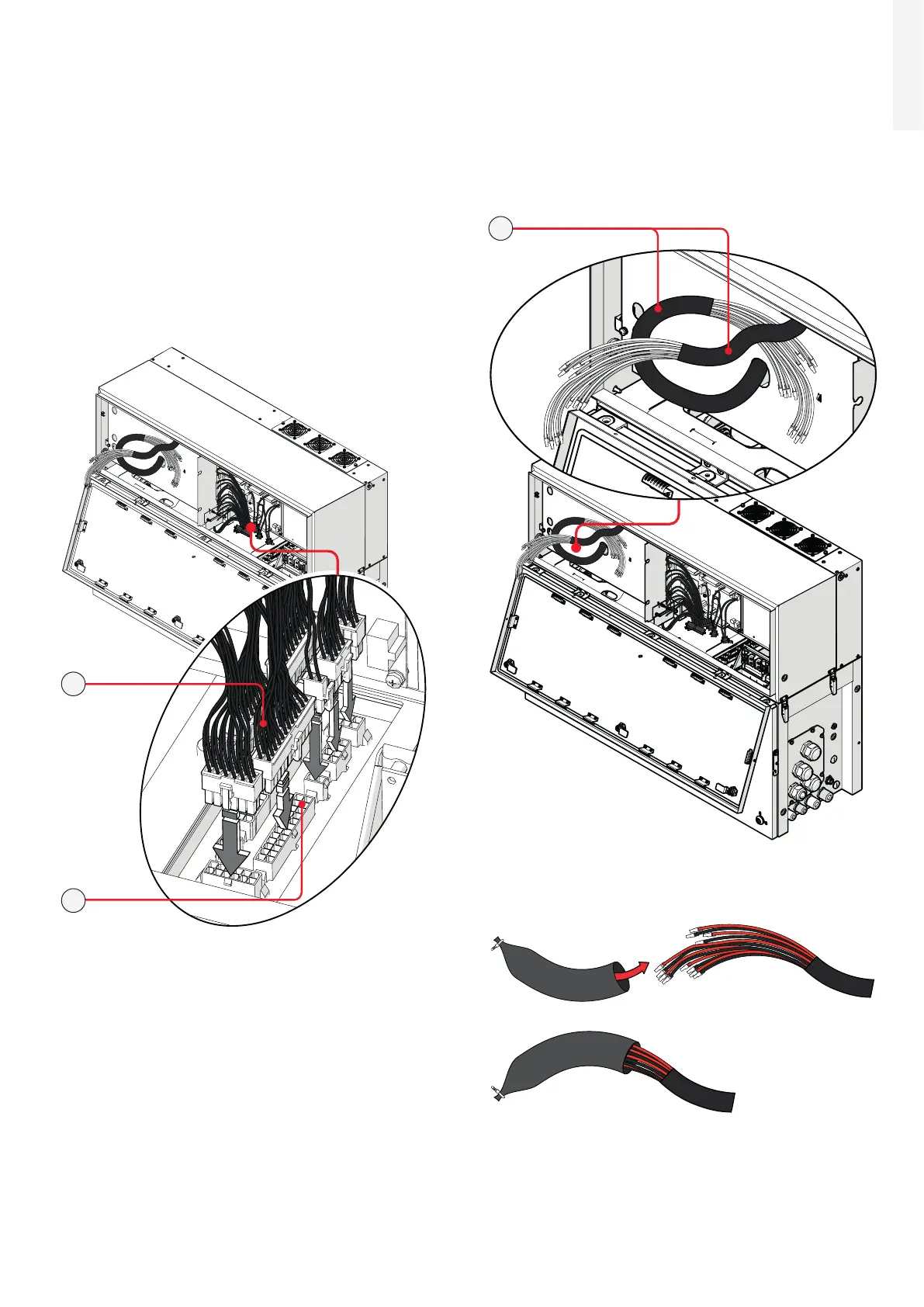

7.7 Connection of the interface
signal connectors
The interface signal connectors (male) (35) are
situated into right side of Power module and they
are composed by 8 connectors.
Connect all the interface signal connectors (male)
(35) with the related interface signal connectors
(female) (32) located on the top side of wiring
box (push the connector until you hear a locking
“click). All connectors have a different pin-out in
order to avoid any connection error.
35
32
7.8 Connection of the DC interface
cables
The DC interface cables (33) are situated into left
side of Power module and they are divided in two
group.
33
Wrap the DC interface cables (33) with the two
cable sheathing supplied in the power module
installation kit.
