Section 5 1MDU07212-YN Rev. C
Use of LHMI
54 REF601 / REJ601
Application Manual

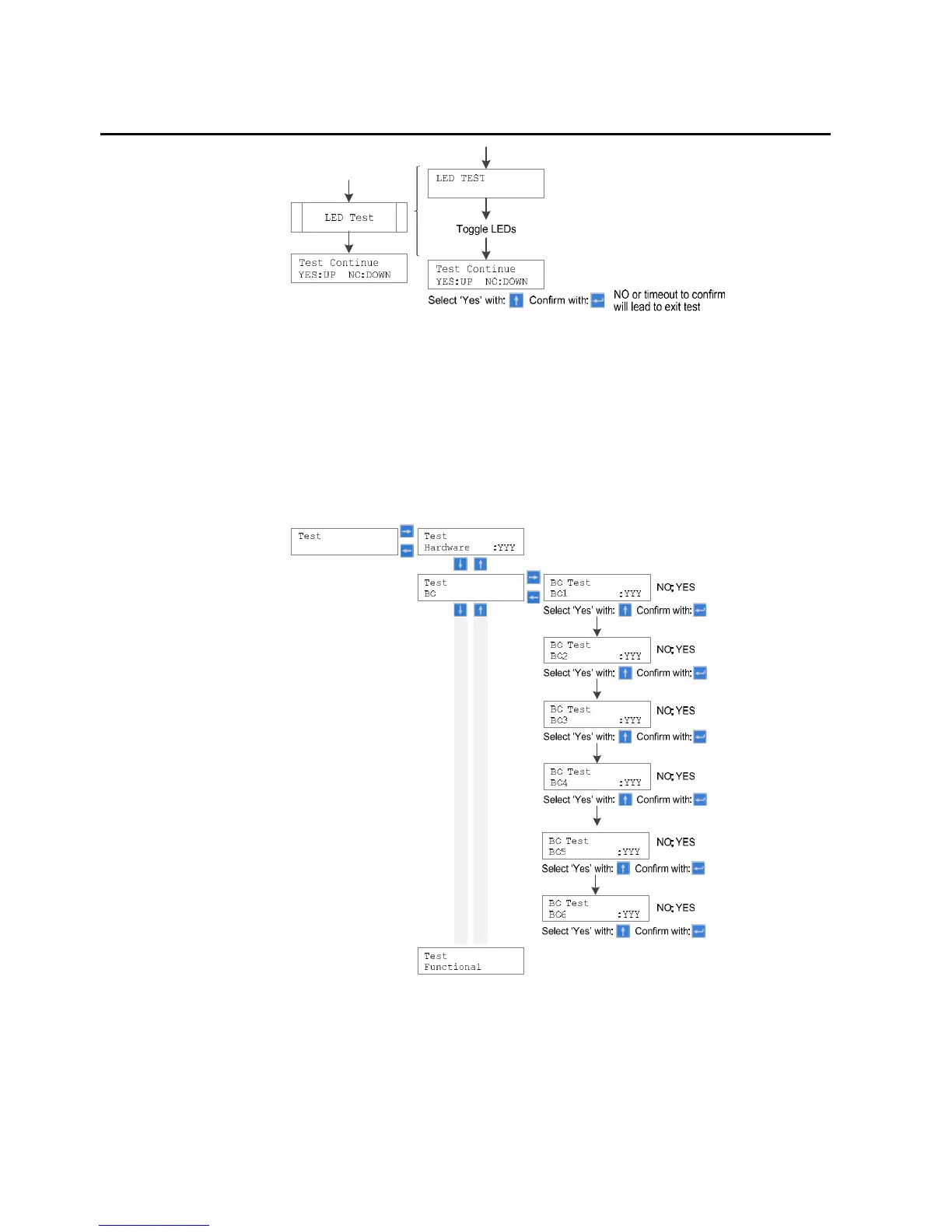

Figure 23: Hardware test menu of relay REF601/REJ601 with its submenu (Continue)
5.2.8.2 Submenu – Binary output test
Submenu binary output test allows to force a binary output. The forced output
operates for a pulse duration of 1 sec.
Figure 24: Binary output test menu of relay REF601/REJ601 with its submenu (Continue)
