ABB REF615 E - COM0001-COM0014 Jumper Locations and Connections

Table 669: LED descriptions for COM0031-COM0034
LED Connector Description
X1 X1 X1/LAN1 link status and activity
X2 X2 X2/LAN2 link status and activity
X3 X3 X3/LAN3 link status and activity
RX X9 COM1 fiber-optic receive activity
TX X9 COM1 fiber-optic transmit activity
13.3.8.1 COM0001-COM0014 jumper locations and connections
X4
X6
X5
X8
X9
X7
1 2 3
A070893 V3 EN

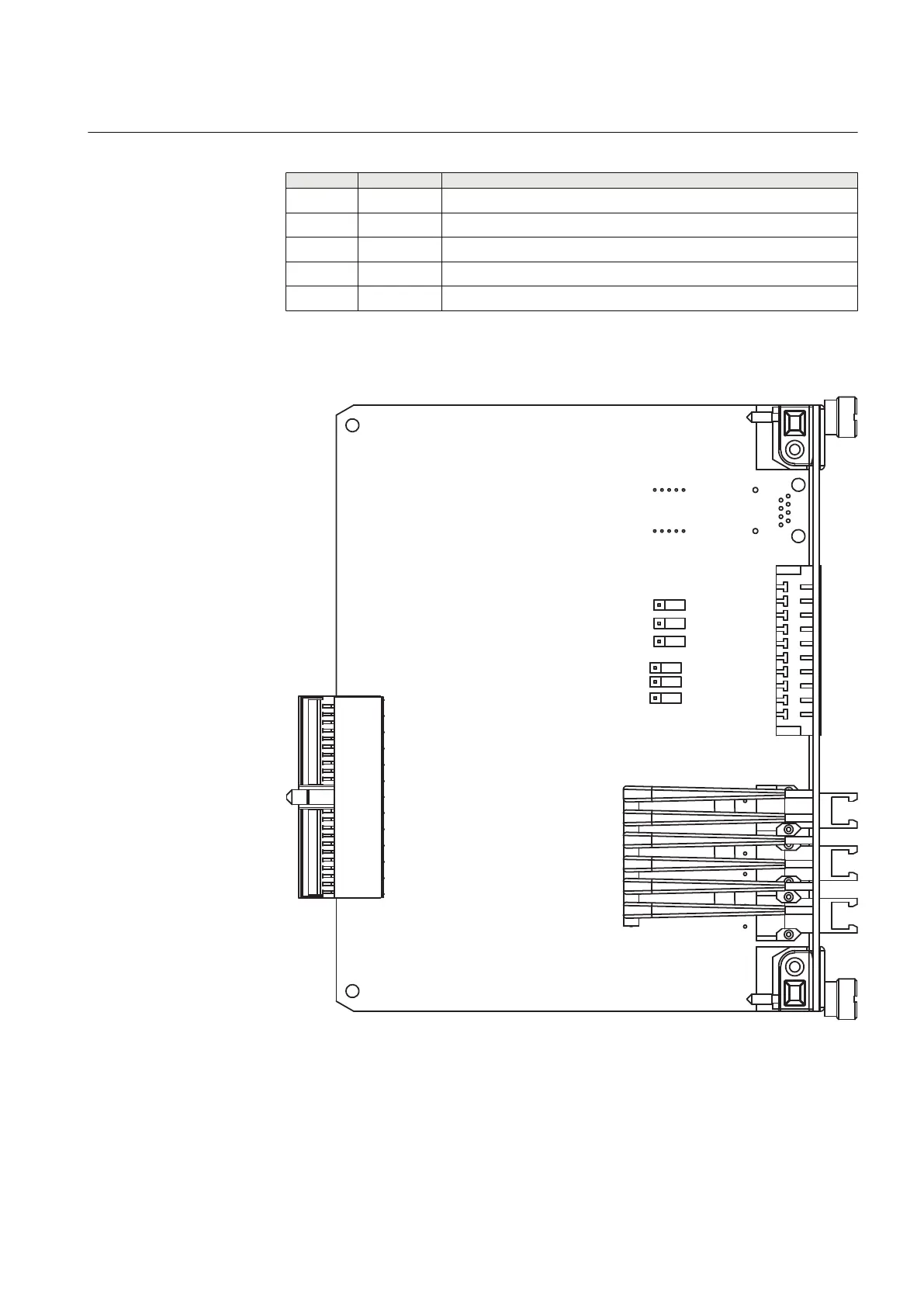

Figure 464: Jumper connectors on communication module
